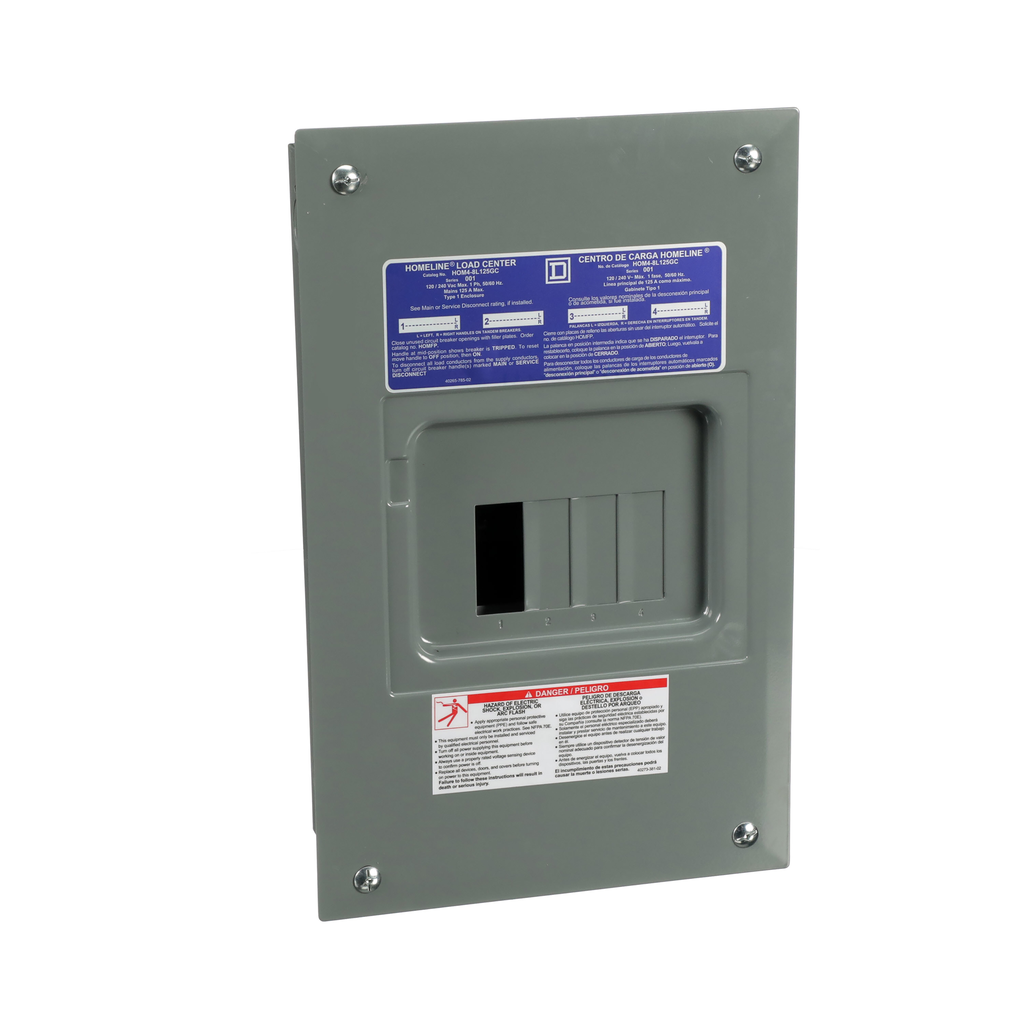

Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 2/0 copper or 12 AWG to 2/0 AWG aluminum wire. Load center has a grounding bar. This Homeline load center has a height of 14.80 inches, a width of 8.89 inches, and depth of 3.81 inches. Homeline load centers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL listed file E-6294 |
|---|---|
| Ambient Air Temperature For Operation |
|
| Warranty | Lifetime |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 376 mm |
| Phase | 1 phase 3 wires |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bus Rated Current | 125.0 A |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 4 |
| Material | tin plated aluminium: busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded sheet steel |
| Awg Gauge |
|
| Width | 226 mm |
| Depth | 97 mm |
| Device Composition | grounding bar included (not installed) |
| Box Number | 21 |
| Country of Origin | Mexico |
| Width | 226 mm |
| Height | 376 mm |
| Range Of Product | Homeline |
| Provided Equipment | grounding bar 1 ) |
| Product Or Component Type | Load Center |
| Electrical Connection | lugs |
| Number Of Circuits | 8 |
| Number Of Spaces | 4 |
| Cover Type | combination flush/surface cover |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Line Rated Current | 125 A |
| Load Center Type | Fixed Mains (lugs) |
