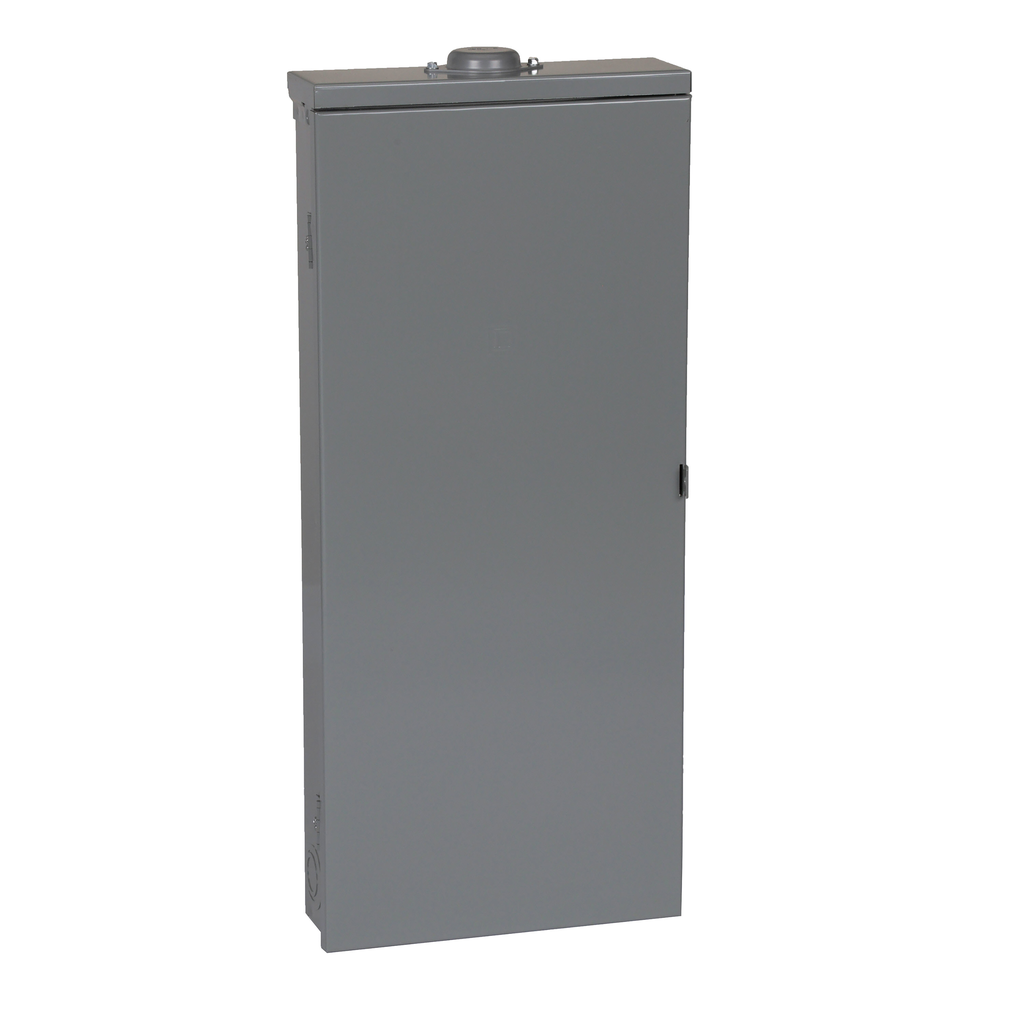

HOM3060M150PRB – Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R
HOM3060M150PRB
Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 150A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Homeline
Provided Equipment circuit-breaker 1 ) 2P 150 A 120/240 V AC main supply ready assembled
Product Or Component Type Load Center
Number Of Circuits 60
Number Of Spaces 30
Nema Degree Of Protection NEMA 3R outdoor
Cover Type surface cover
Line Rated Current 150 A
Load Center Type PoN Convertible Mains (breaker)
Height 858 mm
Phase 1 phase
Short-Circuit Current 22 kA
Number Of Tandem Circuit Breakers 30
Material tin plated aluminium busbar
Surface Finish baked enamel Gray
Enclosure Material welded galvannealed steel
Awg Gauge AWG 4...250 kcmil aluminium/copper
Width 375 mm
Wiring Configuration 3-wire
Depth 115 mm
Device Composition grounding bar (ordered separately)
Box Number 7R
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1403002
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive Compliant
Product Certifications UL listed file E-6294
Ambient Air Temperature For Operation
  • -5 °C
  • 40 °C
