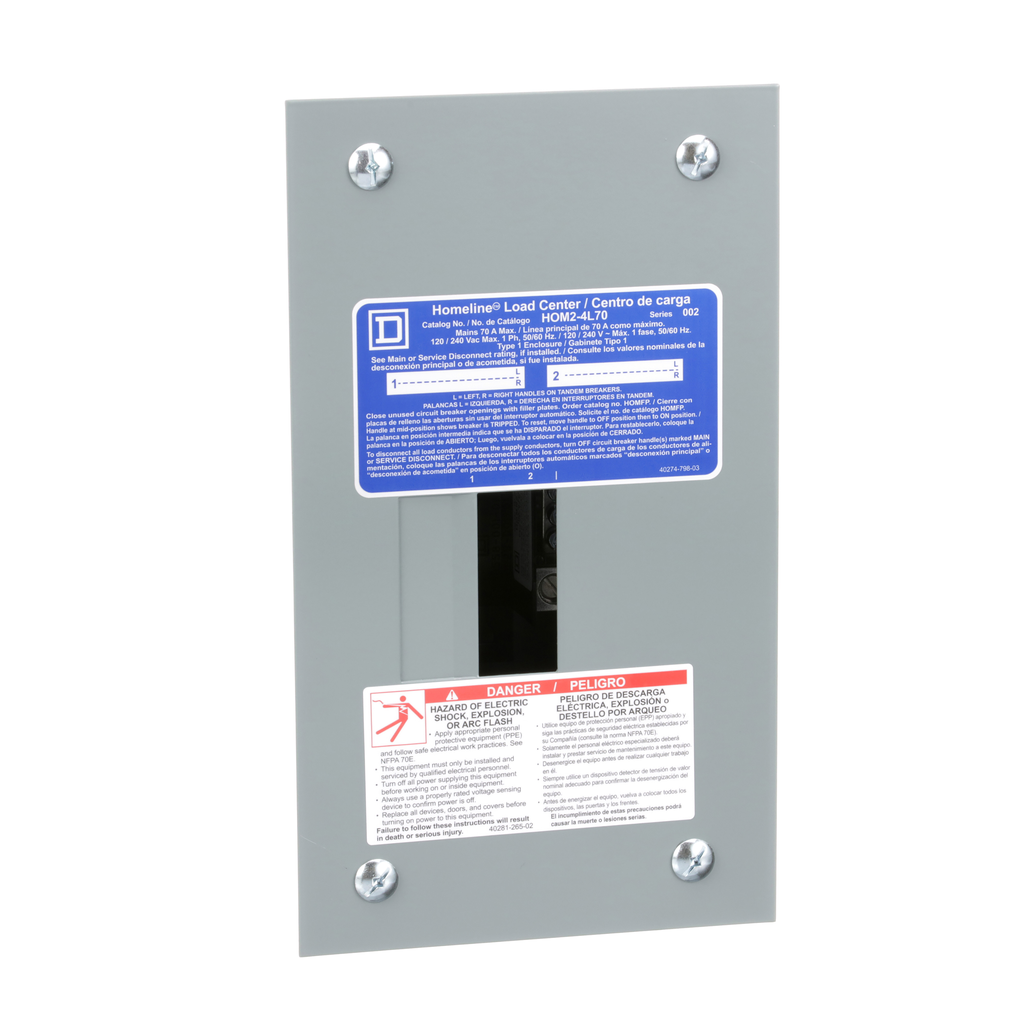

HOM24L70FCP
Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, flush cover, consumer pack
The Square D® Homeline® Load Centers are comprised of a comprehensive family of circuit protection solutions. This one comes with the feature plug-on neutral load main breakers centers with lug connections. They are designed for residential and industrial use to protect electrical systems, equipment and people.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 122 mm |
| Height | 236 mm |
| Range Of Product | Homeline |
| Product Or Component Type | Load Center |
| Electrical Connection | lugs |
| Number Of Circuits | 4 |
| Number Of Spaces | 2 |
| Cover Type | flush cover |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Line Rated Current | 70 A |
| Load Center Type | Fixed Mains (lugs) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 236 mm |
| Phase | 1 phase 3 wires |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Type Of Packing | consumer packaging |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 2 |
| Material | tin plated aluminium: busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded sheet steel |
| Awg Gauge |
|
| Width | 122 mm |
| Depth | 81 mm |
| Box Number | 2 |
| Product Certifications | UL listed file E-6294 |
| Ambient Air Temperature For Operation |
|
