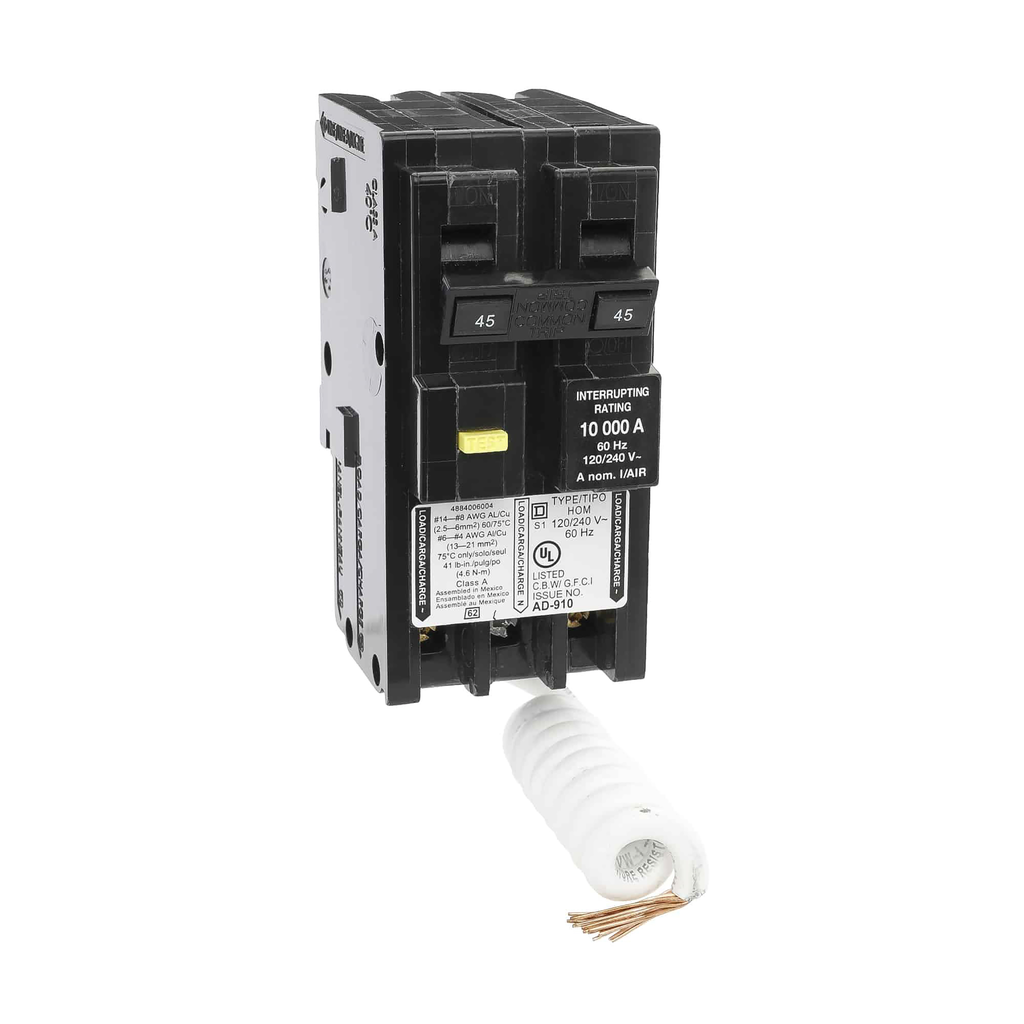

HOM245GFIC
Mini circuit breaker, Homeline, 45A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Specifications
| Country of Origin | Mexico |
|---|---|
| Width | 2 in |
| Height | 4.23 in |
| Product Certifications | UL Listed |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | Homeline |
| Number Of Spaces Required | 2 |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | clam packaging |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 45 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Awg Gauge | 1 x AWG 12...AWG 4 ( aluminium ) |
| Height | 4.23 in |
| Tightening Torque | 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) |
| Width | 2 in |
| Depth | 2.98 in |
| Environmental Disclosure | ENVPEP1406034 |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI1406034 |
| Eu Rohs Directive | Under investigation |
| Ambient Air Temperature For Operation | 40 °C |
