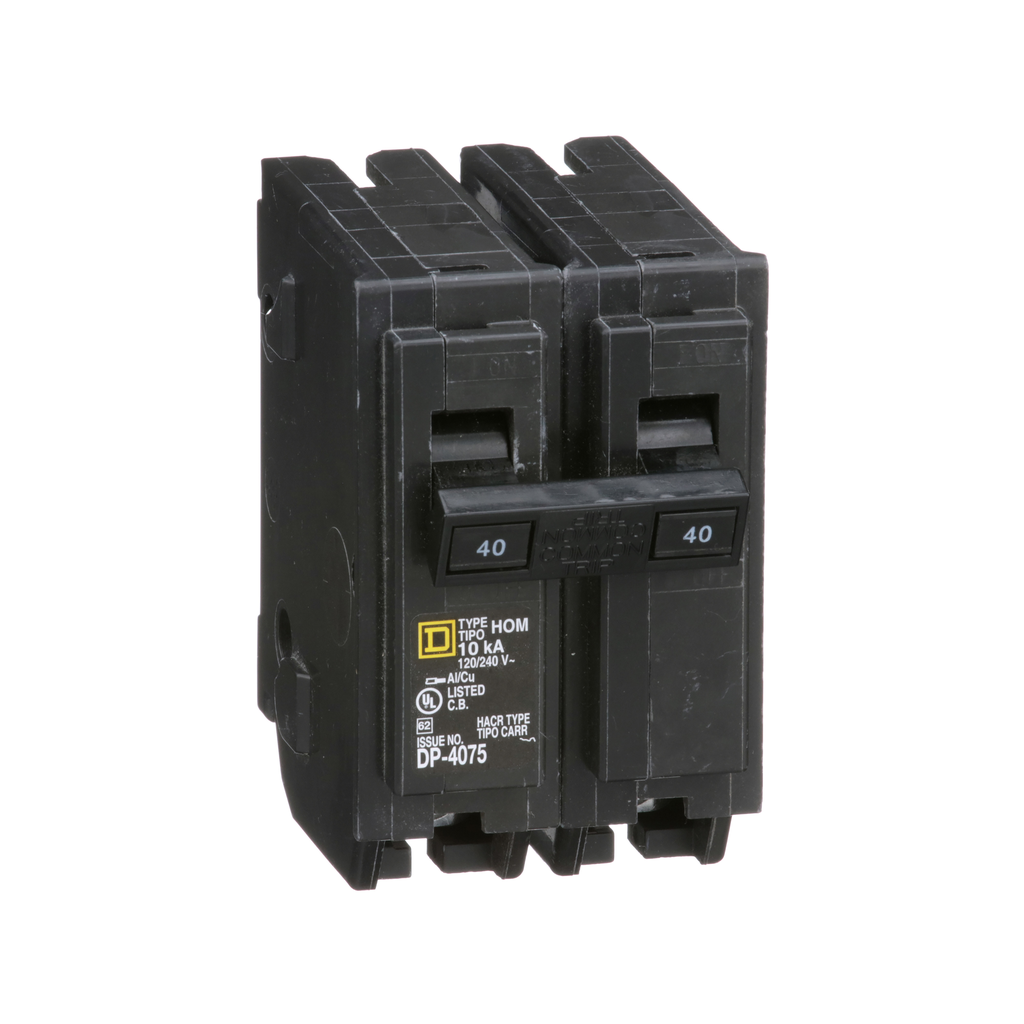

HOM240C
Mini circuit breaker, Homeline, 40A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Square D® Homeline® Miniature Circuit Breakers, provides a wide variety of pole and amperage configurations while still meeting the National Electric Code (NEC) requirements. They are designed to plug into Homeline™ Load Centers with ease and efficiency while being UL certified. These MCB's detect excessive current based on their tripping characteristic and protects your equipment against electrical faults. With fast installation and easier troubleshooting, this 40 amp circuit breaker is ready out of its clam packaging.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 3.13 in |
| Tightening Torque | 4.6-4.6 N.m (AWG 8...AWG 2) |
| Width | 2 in |
| Depth | 2.98 in |
| Country of Origin | Mexico |
| Width | 2 in |
| Height | 3.13 in |
| Product Certifications | UL Listed |
| Circuit Breaker Type | standard |
| Range Of Product | Homeline |
| Number Of Spaces Required | 2 |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | clam packaging |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| Electrical Connection | box lugs |
| Line Rated Current | 40 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Awg Gauge | 1 x AWG 8...AWG 2 ( aluminium/copper ) |
| Ambient Air Temperature For Operation | 40 °C |
