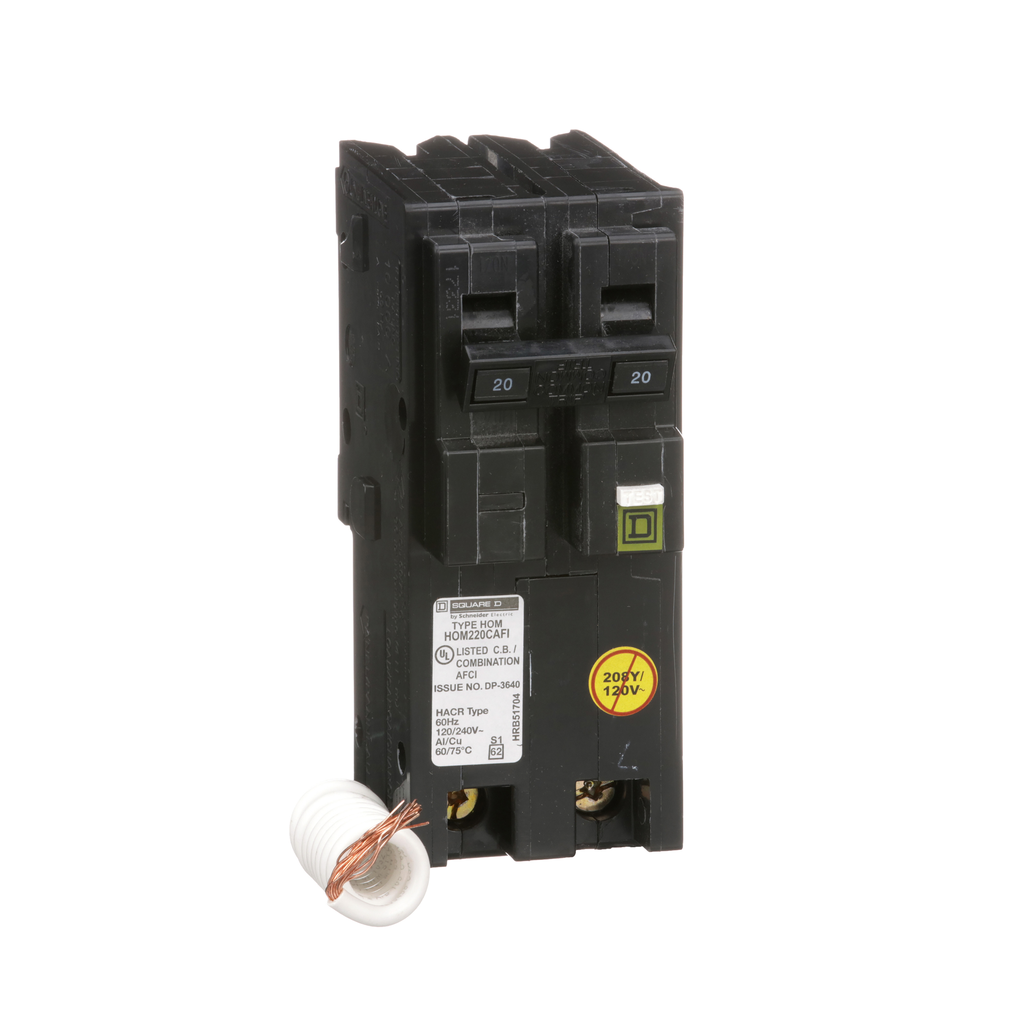

Mini circuit breaker, Homeline, 20A, 2 pole, 120VAC, 10kA AIR, combo arc fault, pigtail neutral, plug in, UL
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Connections - Terminals | pigtail neutral |
|---|---|
| Height | 3.13 in |
| Tightening Torque |
|
| Width | 2 in |
| Depth | 2.98 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406034 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406034 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | United States |
| Width | 2 in |
| Height | 3.13 in |
| Product Certifications | UL Listed |
| Circuit Breaker Type | combination ARC-fault |
| Range Of Product | Homeline |
| Number Of Spaces Required | 2 |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| Electrical Connection | clamp terminal for 2 cables |
| Line Rated Current | 20 A |
| [Ue] Rated Operational Voltage | 120 V AC |
| Awg Gauge |
|
| Ambient Air Temperature For Operation | 40 °C |
