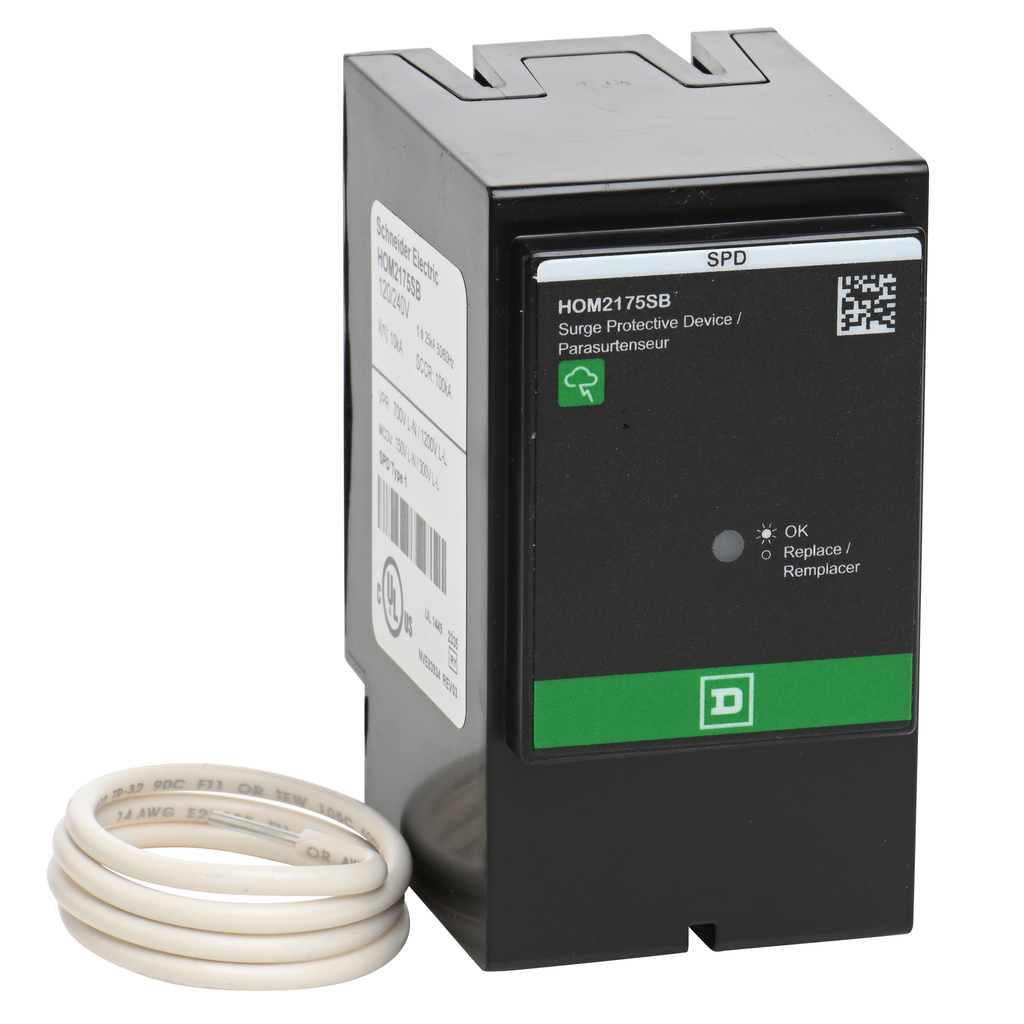

Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 5 kA and has a SCCR of 22.5 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 65-65 °C |
|---|---|
| Standards | UL 1449:ed. 4: type II |
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 3 Years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2002007EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2002007EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 3.7 in |
| Surge Current | 25 kA |
| Phase | 1 phase |
| Product Destination | load center Homeline |
| Local Signalling | 1 LED green normal operation |
| Short-Circuit Protection | 25 kA |
| [Uc] Maximum Continuous Operating Voltage |
|
| Line Rated Current | 10 kA |
| Width | 2 in |
| Wiring Configuration | 3-wire |
| Depth | 2.6 in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Country of Origin | Mexico |
| Width | 2 in |
| Height | 3.7 in |
| Range Of Product | Homeline |
| Product Or Component Type | surge protection device |
