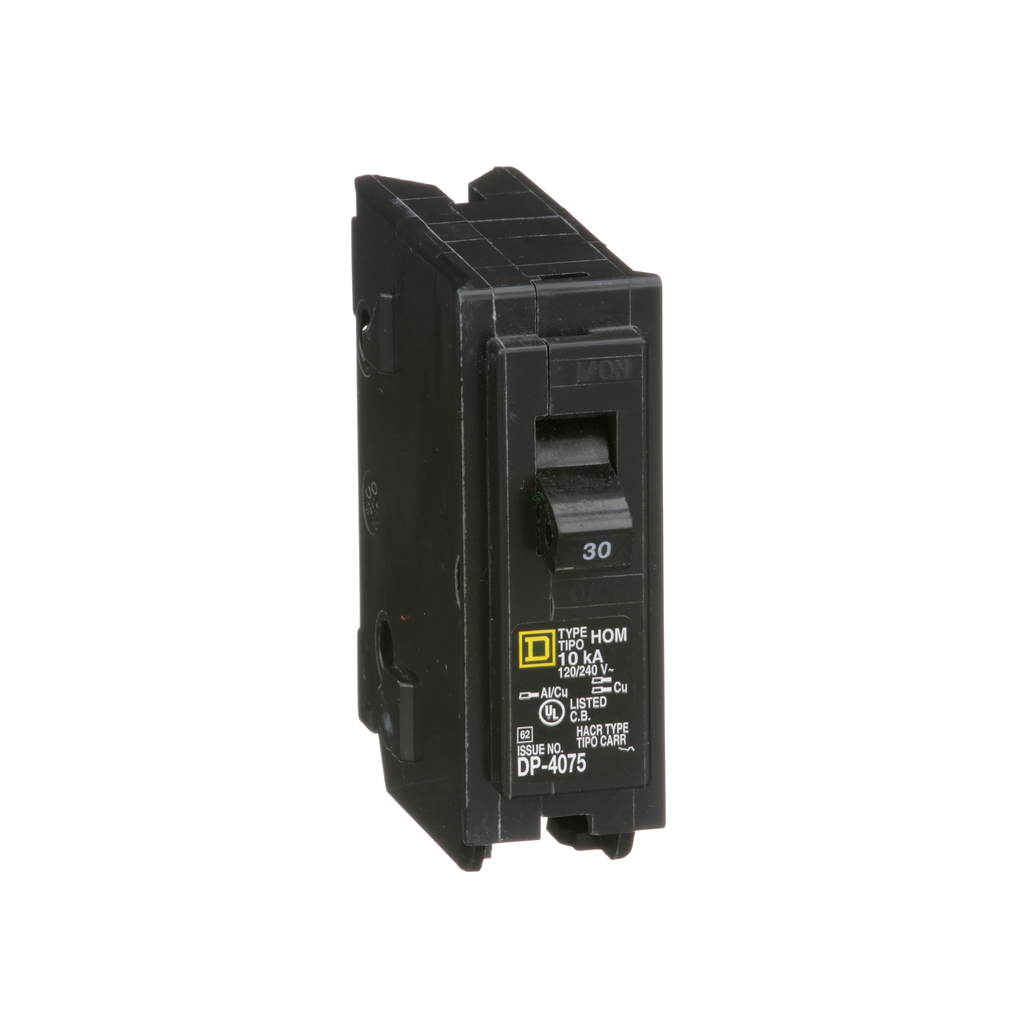

HOM130C - Mini circuit breaker, Homeline, 30A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

HOM130C

Add to Quote Catalogue

Ambient Air Temperature For Operation	40 °C
Warranty	Lifetime
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1308001
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Height	3.13 in
Tightening Torque	4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
Width	1 in
Depth	2.98 in
Country of Origin	Mexico
Width	1 in
Height	3.13 in
Product Certifications	UL Listed
Circuit Breaker Type	standard
Range Of Product	Homeline
Number Of Spaces Required	1
Product Or Component Type	miniature circuit-breaker
Type Of Packing	clam packaging
Circuit Breaker Application	HACR rated
Mounting Mode	plug-in
Short-Circuit Current	10 kA
Poles Description	1P
Electrical Connection	clamp terminal for 2 cables
Line Rated Current	30 A
[Ue] Rated Operational Voltage	120/240 V AC
Awg Gauge	1 x AWG 14...AWG 8 ( aluminium/copper ) 2 x AWG 14...AWG 10 ( copper )
