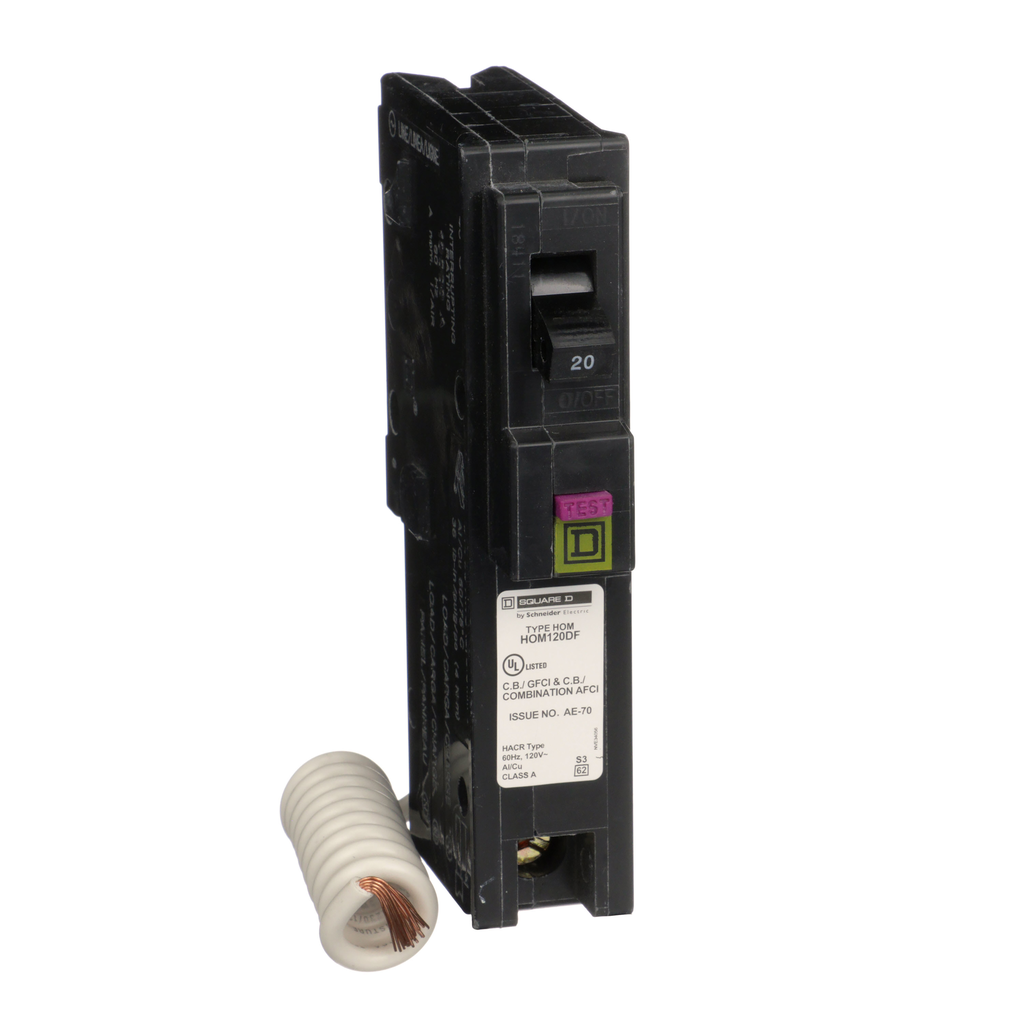

HOM120DFC
Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL
Square D® Homeline® Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection. Square D® Homeline® Circuit Breakers are designed to plug into Homeline® Load Centers® to provide circuit protection. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 40 °C |
|---|---|
| Warranty | Lifetime |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406034 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406034 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Connections - Terminals | pigtail neutral |
| Height | 3.13 in |
| Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
| Net Weight | 0.30 kg |
| Width | 1 in |
| Depth | 2.98 in |
| Country of Origin | United States |
| Width | 1 in |
| Height | 3.13 in |
| Weight | 0.30 kg |
| Product Certifications | UL Listed |
| Circuit Breaker Type | combination ARC-fault and ground fault class A 6 mA |
| Range Of Product | Homeline |
| Number Of Spaces Required | 1 |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | clam packaging |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Short-Circuit Current | 10 kA |
| Poles Description | 1P |
| Electrical Connection | clamp terminal for 2 cables |
| Line Rated Current | 20 A |
| [Ue] Rated Operational Voltage | 120 V AC |
| Awg Gauge |
|
