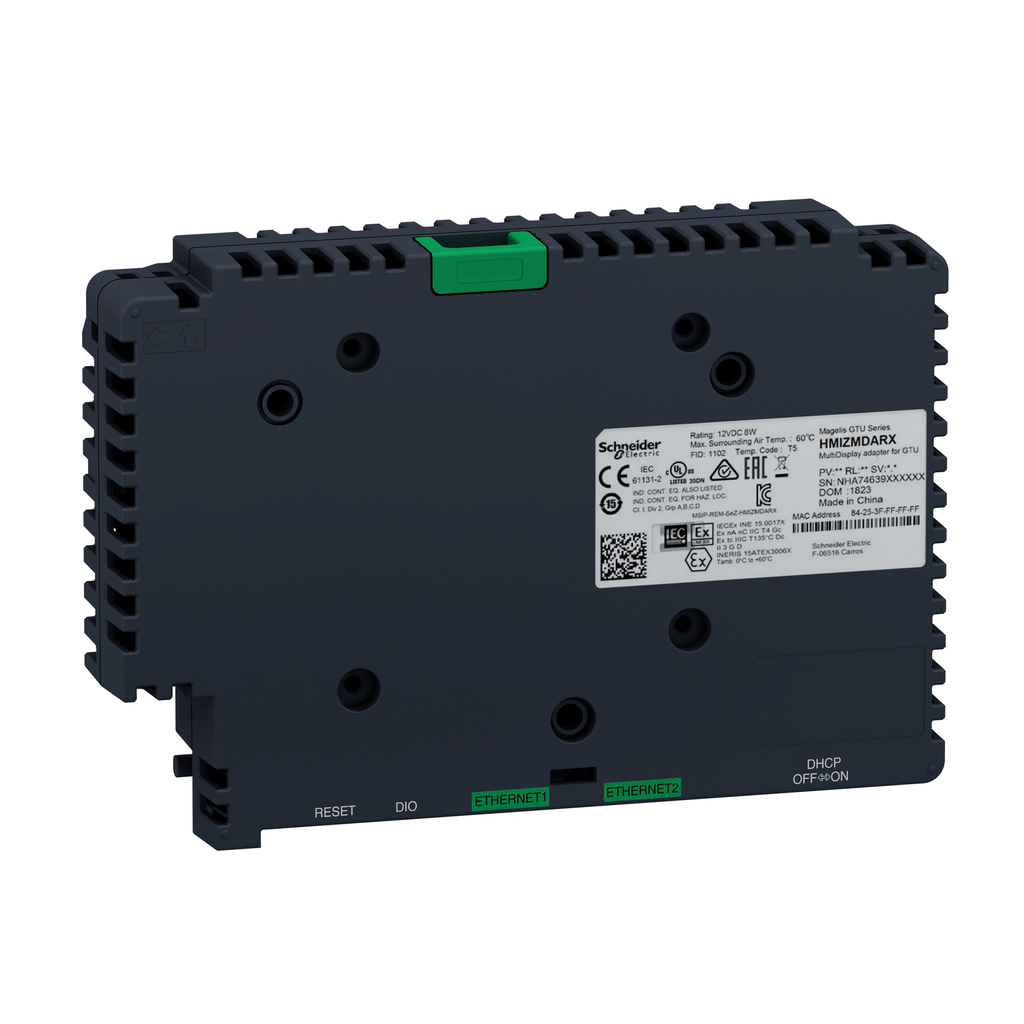

HMIZMDARX

Multi Display Adapter for Harmony GTU

Add to Quote Catalogue

Specifications

Product Certifications	UL 508 CSA C22-2 No 142 CSA C22-2 No 213 cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01 IEC-Ex ATEX zone 2/22 EAC UKCA UKEX
Ambient Air Temperature For Operation	0-60 °C
Pollution Degree	2
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Shock Resistance	147 m/s²X, Y, Z directions for 3 times EN/IEC 61131-2
Vibration Resistance	3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 9.8 m/s² constant acceleration 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2
Ambient Air Temperature For Storage	-20-60 °C
Environmental Characteristic	corrosive gas free dustproof
Relative Humidity	10-90 % non-condensing
Resistance To Fast Transients	1 kV IEC 61000-4-4 signal ports) 2 kV IEC 61000-4-4 power ports)
Operating Altitude	6561.68 ft (2000 m)
Power Consumption In W	8 W
Height	131 mm
Output Current	50 mA
[Us] Rated Supply Voltage	12 V DC module supply
Output Voltage Type	DC
Net Weight	0.8 kg
Accessory / Separate Part Destination	Harmony GTU display
Local Signalling	LED green, steady operating status (RUN) LED green, faded stand-by LED green/orange, alternate program mode LED orange, flashing establishing communication connection LED red, steady power ON LED green, orange and red, alternate ERROR (fault)
Type Of Cooling	natural
Integrated Connection Type	1 DIO terminal block 3 inputs + 1 output 2 Ethernet TCP/IP RJ45 jack
Output Voltage	24 V
Width	188 mm
Depth	35 mm
Input Voltage	12 V DC module supply 24 V DC
Country of Origin	China
Width	188 mm
Height	131 mm
Weight	0.8 kg
Range Of Product	Harmony GTU
Accessory / Separate Part Category	adaptation accessory
Product Compatibility	Harmony GTU open Harmony iPC industrial PCs
Accessory / Separate Part Type	adaptor
Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Multi Display Adapter for Harmony GTU
