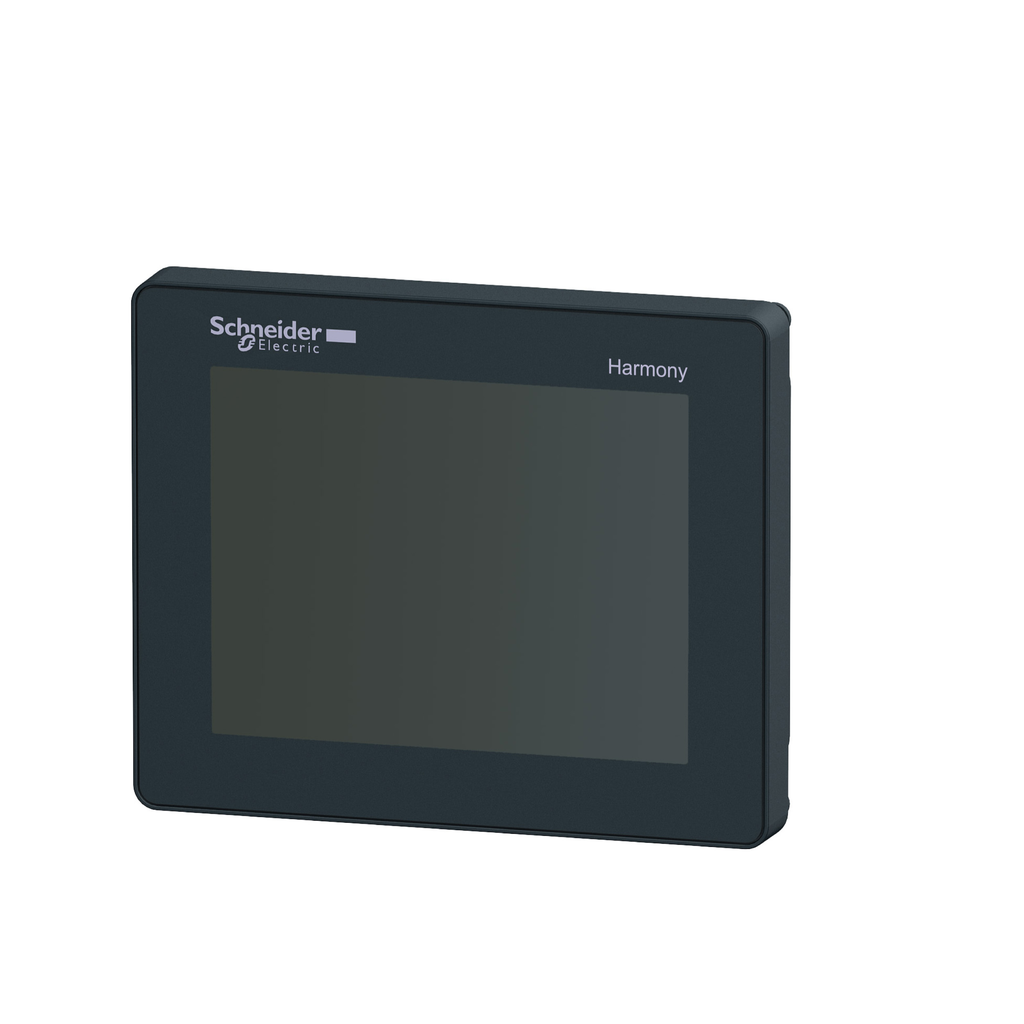

HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide

HMISTU655

colour touch panel screen, Harmony STO & STU, 3.5inch wide

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	cULus C-tick Marine UL class 1 Div2 T4A ou T5 UKCA
Ambient Air Temperature For Operation	0-50 °C
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Standards	IEC 61000-6-2 IEC 61131-2 UL 1604 UL 508 FCC Class A
Immunity To Microbreaks	10 ms
Vibration Resistance	+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 1 gn 9-150 Hz) IEC 60068-2-6
Shock Resistance	15 gn 11 msIEC 60068-2-27
Ip Degree Of Protection	IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)
Ambient Air Temperature For Storage	-20-60 °C
Nema Degree Of Protection	NEMA 4X front panel indoor use)
Relative Humidity	0-85 % without condensation
Operating Altitude	<= 6561.68 ft (2000 m)
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2101003EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2101003EN
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Pages	limited by internal memory capacity
Brightness	16 levels
Height	98.15 mm
Inrush Current	30 A
Power Consumption In W	6.5 W
Supply	external source
Display Resolution	320 x 240 pixels QVGA
Marking	with Schneider logo CE
Processor Frequency	333 MHz
Fixing Mode	Ø 22 mm hole
Backlight Lifespan	50000 hours
Touch Panel	analogue
Supply Voltage Limits	20.4-28.8 V
Integrated Connection Type	1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) power supply - removable screw terminal block 1 Ethernet - RJ45
Display Size	3.5 inch
Downloadable Protocols	Modbus TCP/IP Modbus Uni-TE third party protocols
Realtime Clock	access to the PLC real-time clock
Enclosure Material	PC/PBT
Display Colour	65536 colours
Width	118 mm
Display Type	QVGA TFT colour touchscreen
Depth	55.3 mm
Character Font	Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Korean Taiwanese (traditional Chinese)
Memory Description	application memory 16 MB back up of data 64 kB
[Us] Rated Supply Voltage	24 V DC
Country of Origin	China
Width	118 mm
Height	98.15 mm
Range Of Product	Harmony STO & STU
Product Or Component Type	touch panel screen
Operating System	Harmony
Processor Name	CPU ARM9
Software Designation	Vijeo Designer
