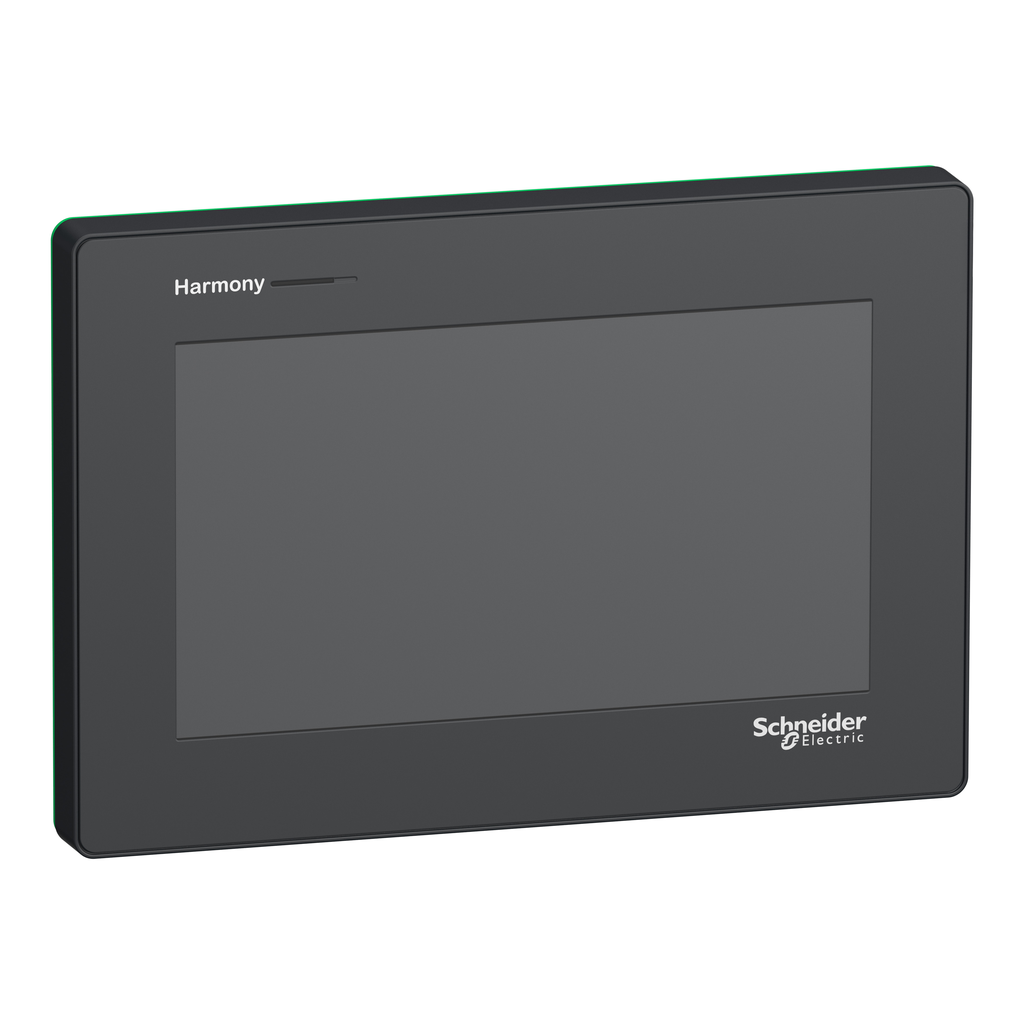

HMISTM64 - touch panel screen, Harmony ST6, 7inch wide display, colour TFT LCD

HMISTM64

touch panel screen, Harmony ST6, 7inch wide display, colour TFT LCD

Add to Quote Catalogue

Specifications

Country of Origin	Indonesia
Width	201.2 mm
Height	137.2 mm
Weight	0.49 kg
Range Of Product	Harmony ST6
Product Or Component Type	touch panel screen
[Us] Rated Supply Voltage	24 V DC +/- 20 %)
Number Of Pages	200 application pages
Brightness	16 levels
Height	137.2 mm
Software Package	EcoStruxure Operator Terminal Expert
Inrush Current	30 A
Power Consumption In W	3.6 W
Cut-Out Dimensions	Ø 22.5 mm
Display Resolution	800 x 480 pixels WVGA
Marking	CE
Net Weight	0.49 kg
Fixing Mode	Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201 Ø 22 mm hole IEC 61131-2 Ø 22 mm hole IEC 61000-6-2
Backlight Lifespan	20000 hours white
Touch Panel	single touch analogue resistive
Local Signalling	status LED green, steady offline status LED green, steady operating status LED green, flashing operating status LED green, faded stand-by status LED orange, flashing software starting up status LED red, steady power supply (ON) status LED red, flashing operating status LED red, off power supply (OFF)
Display Size	7 inch
Display Colour	16 million colours
Width	201.2 mm
Display Type	colour TFT LCD
Front Material	plastic
Realtime Clock	built-in 0...50 °C built-in 10...90 % RH
Depth	33 mm
Character Font	ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2007003EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2007003EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CE UKCA cULus RCM KC cULus Class 1 Division 2 DNV ABS RINA BV
Ambient Air Temperature For Operation	0-50 °C
Standards	IEC 61000-6-4 IEC 61000-6-2 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 CSA C22.2 No 213
Immunity To Microbreaks	2 ms
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 1 kV (signal ports) electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 electrostatic discharge immunity test - test level: 8 kV (air discharge)
Shock Resistance	147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Vibration Resistance	+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 9.8 m/s² 9-150 Hz)
Ip Degree Of Protection	IP65 IEC 61131-2 front panel)
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-20-60 °C
Nema Degree Of Protection	NEMA 4 front panel (indoor use) NEMA 13 front panel (in enclosure)
Relative Humidity	10-90 % non-condensing
Operating Altitude	6561.68 ft (2000 m)
