HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC

HMIST6200

touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC

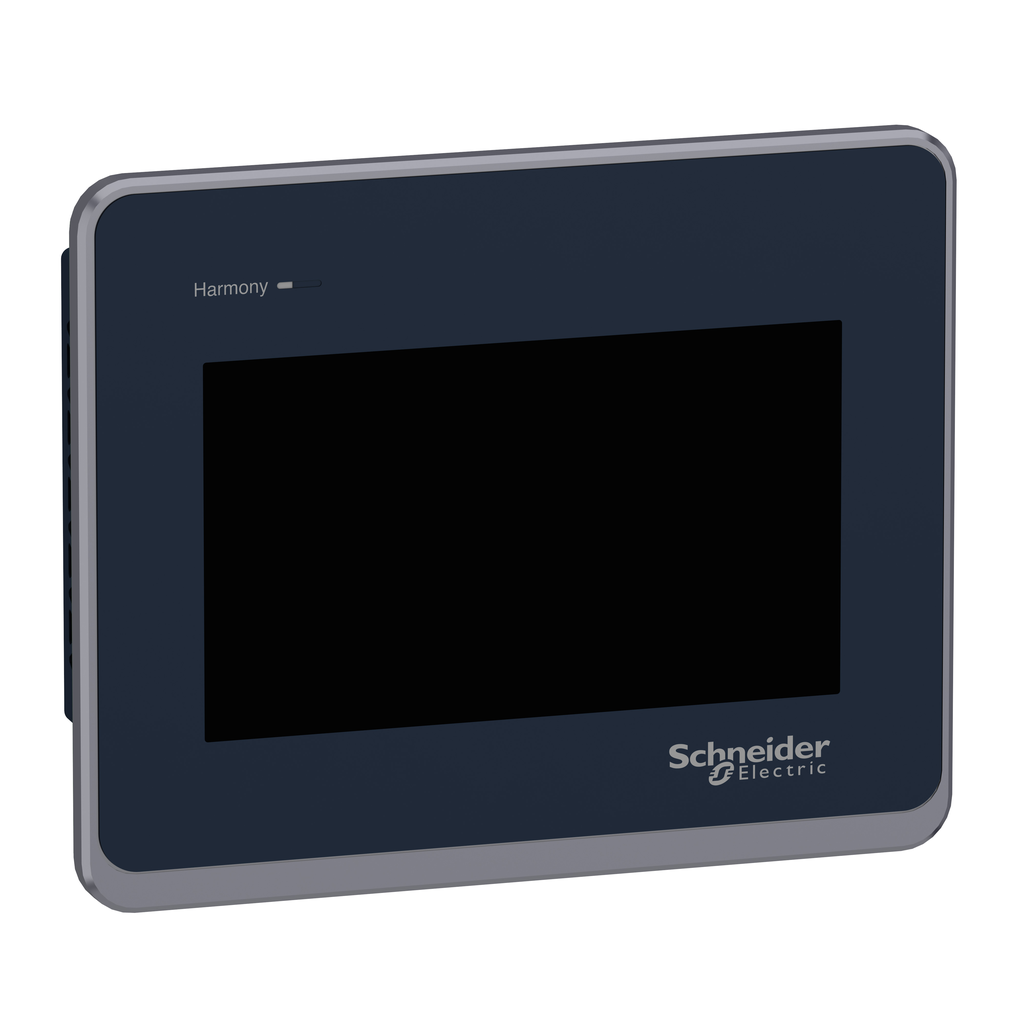

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 1x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Brand	Schneider Electric Modicon Mitsubishi Melsec Omron Sysmac Rockwell Automation Allen-Bradley Siemens Simatic
[Us] Rated Supply Voltage	24 V DC +/- 20 %)
Number Of Pages	200 application pages
Brightness	16 levels
Height	108.5 mm
Software Package	EcoStruxure Operator Terminal Expert
Inrush Current	30 A
Power Consumption In W	6.9 W
Cut-Out Dimensions	118.5 x 92.5 mm panel cut dimension
Supply	external supply
Display Resolution	480 x 272 pixels
Marking	CE
Processor Frequency	800 MHz
Net Weight	0.4 kg
Fixing Mode	by 2 screws 1.6...5 mm thick panel UL 61010-2-201 by 2 screws IEC 61131-2 by 2 screws IEC 61000-6-2
Backlight Lifespan	50000 hours white
Touch Panel	single touch analogue resistive
Local Signalling	status LED green, steady offline status LED green, steady operating status LED green, flashing operating status LED green, faded stand-by status LED orange, flashing software starting up status LED red, steady power supply (ON) status LED red, flashing operating status LED red, off power supply (OFF)
Integrated Connection Type	1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 2400...115200 bps)bottom COM1 serial link 2400...187500 bps)back 1 USB 2.0 type Aback 1 USB 2.0 type micro Bbottom 1 Ethernet - female RJ45 - RS485
Display Size	4 inch
Downloadable Protocols	Modbus Uni-TE third party protocols
Enclosure Material	PC
Display Colour	16 million colours
Port Ethernet	10/100BASE
Width	134.5 mm
Display Type	colour TFT LCD
Front Material	aluminium
Realtime Clock	built-in 0...50 °C built-in 10...90 % RH
Depth	43 mm
Character Font	ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese)
Memory Description	512 MB device memory 128 MB user data memory 512 KB backup memory
Product Certifications	CSA CE UKCA
Ambient Air Temperature For Operation	0-50 °C
Standards	IEC 61000-6-4 IEC 61000-6-2 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
Immunity To Microbreaks	2 ms
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 1 kV (signal ports) electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 electrostatic discharge immunity test - test level: 8 kV (air discharge)
Shock Resistance	147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Vibration Resistance	+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 9.8 m/s² 9-150 Hz)
Ip Degree Of Protection	IP20 IEC 61131-2 rear panel) IP65 IEC 61131-2 front panel)
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-20-60 °C
Nema Degree Of Protection	NEMA 4 front panel (indoor use) NEMA 13 front panel (in enclosure)
Relative Humidity	10-90 % non-condensing
Operating Altitude	6561.68 ft (2000 m)
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1810005EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1810005_V2
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Indonesia
Width	134.5 mm
Height	108.5 mm
Weight	0.4 kg
Range Of Product	Harmony ST6
Product Or Component Type	touch panel screen
Processor Name	ARM Cortex-A8
