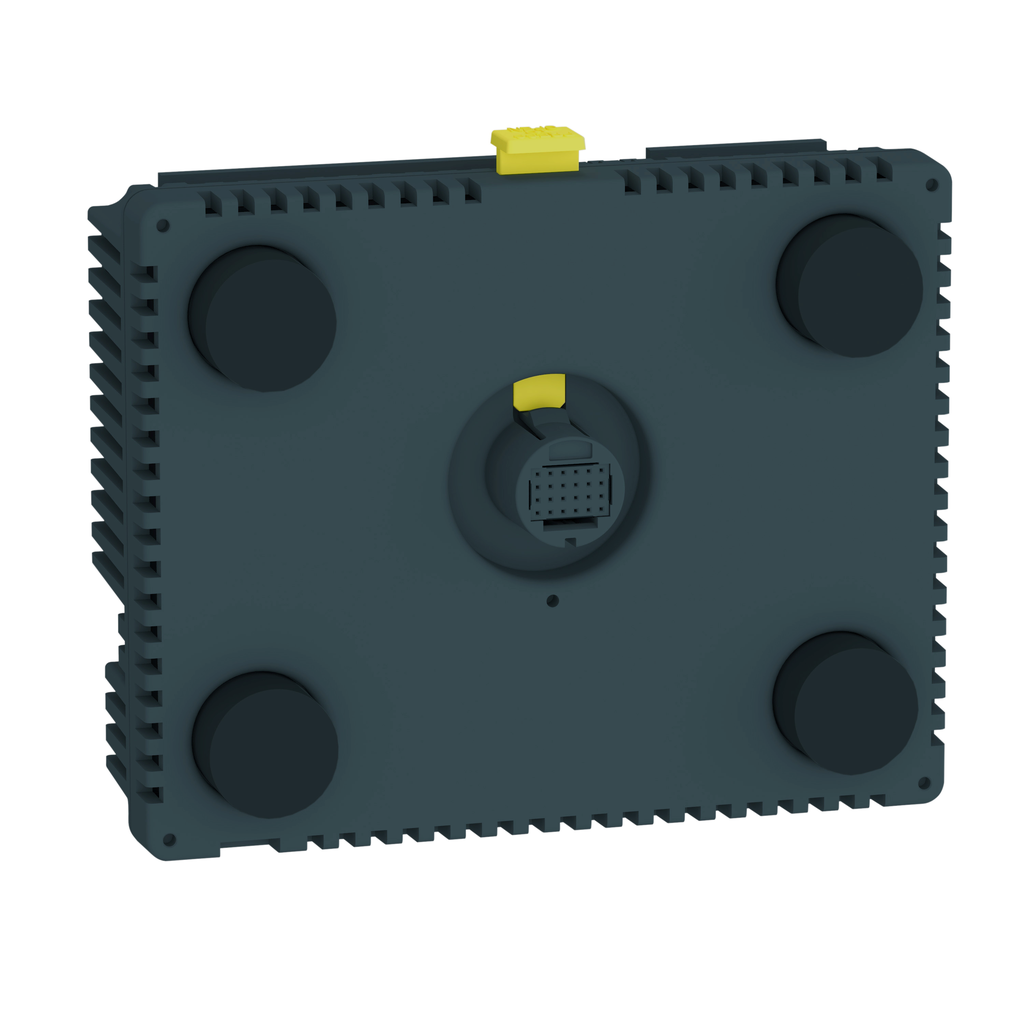

HMISBC – Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs Ana 4 In/2 Out
HMISBC
Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs +Ana 4 In/2 Out

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. This rear module controller panel provides 8/8 digital I/Os and 4/2 analogue I/Os. It supports Modbus, CANopen and Modbus TCP/IP downloadable protocols. It is designed with internal data storage of 128kB FRAM, flash NAND of 128MB and application run DRAM of 128MB. It is a controller panel with a rated supply voltage of 24V DC, supplied by external source with the limit ranges from 20.4V to 28.8V DC. It is an IP20 (rear panel) / IP65 (front panel) and NEMA 4X rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height) and weighs 0.398kg. It is certified by CULus, CUL, GOST, C-Tick, CSA, KCC. It meets UL 508, FCC Class A, EN 61131-2, WEEE directive 2002/96/EC, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01, RoHS, RoHS China SJ/T 11363-2006, IEC 61000-6-2 standards. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • cULus 508
  • cUL 1604 Class 1 Division 2
  • C-tick
  • cULus CSA 22-2 No 142
  • GOST
  • KCC
  • UKCA
  • UKEX
Ambient Air Temperature For Operation 0-50 °C
Standards
  • UL 508
  • FCC Class A
  • EN 61131-2
  • CSA C22.2 No 213 Class I Division 2
  • ANSI/ISA 12-12-01
  • IEC 61000-6-2
Storage Altitude 0-10000 m
Maximum Pressure 800...1114 hPa
Marking CE
Environmental Characteristic corrosive gas free
Ip Degree Of Protection
  • IP20 IEC 60529 rear panel)
  • IP65 IEC 60529 front panel)
Pollution Degree 2 IEC 60664
Ambient Air Temperature For Storage -20-60 °C
Nema Degree Of Protection NEMA 4X front panel
Relative Humidity 5-85 % without condensation
Operating Altitude <= 6561.68 ft (2000 m)
Analogue Output Number 2 resistive load 12 bits + sign
Fixing Mode by 1 nut Ø 22 mm 1...6 mm thick panel
Number Of Pages limited by internal memory capacity
Maximum Cable Distance Between Devices
  • shielded cable <10 m fast input
  • shielded cable <100 m digital input
  • unshielded cable <50 m digital input
Height 50.65 mm
Connection Pitch 3.5 mm
Inrush Current 30 A
Immunity To Microbreaks 10 ms
Analogue Input Range
  • 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %)
  • -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
Discrete Output Number
  • 2 fast output (normal mode) source
  • 6 digital output source
[Us] Rated Supply Voltage 24 V 20.4-28.8 V)DC
Discrete Input Voltage 24 V DC sink or source (positive/negative)
Power Consumption In W 15 W
Electromagnetic Compatibility
  • electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
  • electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
  • susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4
  • surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5
  • surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5
  • surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5
  • surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5
  • conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6
  • conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011
  • radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Supply external source
Insulation Resistance
  • > 10 MOhm between the I/O and internal logic
  • > 10 MOhm between power supply and earth
Discrete Output Voltage
  • 24 V DC 19.2...28.8 V)transistor
  • 24 V DC 5...30 V)relay
  • 220 V AC 100...250 V)relay
Isolation Between Channels none
Vibration Resistance
  • +/- 3.5 mm 5-9 Hz) IEC 60068-2-6
  • 1 gn 9-150 Hz) IEC 60068-2-6
Shock Resistance
  • 147 m/s² 11 ms on DIN rail)IEC 60068-2-27
  • 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
Operating System Harmony
Processor Frequency 333 MHz
Overvoltage Protection with
Analogue Output Range
  • 0...20 mA/4...20 mA > 300 Ohm)open-circuit
  • -10...10 V/0...10 V > 2 kOhm)short-circuit
Net Weight 0.398 kg
Configurable Filtering Time
  • 0 ms no filter none)
  • 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2))
  • 3...12 ms integrator none/run/stop)
Isolation Between Channels And Internal Logic 500 V DC
Analogue Input Number
  • 2 analog input
  • 2 RTDs
Processor Name CPU RISC
Maximum Input Frequency
  • 100 kHz fast input (encoder mode) A/B
  • 100 kHz fast input single phase
  • 100 kHz fast input pulse/direction
Software Designation SoMachine
Integrated Connection Type
  • 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s)
  • 1 Ethernet TCP/IP - RJ45
  • 1 USB 2.0 type mini B
  • 1 USB 2.0 type A
  • CANopen master bus - SUB-D 9
Absolute Accuracy Error
  • +/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)
  • 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)
  • +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode)
  • +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode)
  • +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
Input Impedance
  • 2.81 kOhm
  • 4.7 kOhm
Discrete Input Current
  • 7.83 mA fast input
  • 5 mA digital
Maximum Output Frequency
  • 100 kHz fast output (PTO mode)
  • 1 kHz fast output (PWM mode)
Downloadable Protocols
  • Modbus
  • CANopen
  • Modbus TCP/IP
Realtime Clock built-in
Enclosure Material PC/PBT
Local Signalling no indicator
Sensor Power Supply
  • 15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA
  • 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
Width 128 mm
Depth 102 mm
Discrete Output Current
  • 2 A 4 A)5 ms opening contact digital output
  • 2 A 4 A)2 ms closing contact digital output
  • 300 mA2 ms fast output (normal mode)
  • 50 mA2 ms fast output (PWM or PTO mode)
Input/Output Number
  • 2 fast input FI0...FI1
  • 2 fast output FQ0...FQ1
  • 6 digital input DI0...DI5
  • 6 digital output DQ0...DQ5
Analogue Input Type
  • RTD - 200...600 °C 16 bitsPt 100/Pt 1000
  • RTD - 50...200 °C 16 bitsNi 100/Ni 1000
  • RTD - 200...760 °C 16 bits thermocouple J)
  • RTD - 240...1370 °C 16 bits thermocouple K)
  • RTD 0...1600 °C 16 bits thermocouple R)
  • RTD 200...1800 °C 16 bits thermocouple B)
  • RTD 0...1600 °C 16 bits thermocouple S)
  • RTD - 200...400 °C 16 bits thermocouple T)
  • RTD - 200...900 °C 16 bits thermocouple E)
  • RTD - 200...1300 °C 16 bits thermocouple N)
Discrete Input Number
  • 2 fast input (normal mode) IEC 61131-2 Type 1
  • 6 digital input IEC 61131-2 Type 1
Memory Description
  • flash NAND, 128 MB
  • internal data storage FRAM, 128 kB
  • application run DRAM, 128 MB
Number Of Common Point
  • 1 fast input (HSC mode)
  • 1 digital input
Mercury Free Yes
Environmental Disclosure ENVPEP1405010EN
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1405010EN
Upgradeability Upgradeable through digital modules and upgraded components
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin China
Width 128 mm
Height 50.65 mm
Weight 0.398 kg
Range Of Product Harmony SCU
Product Or Component Type controller
Device Presentation basic element
