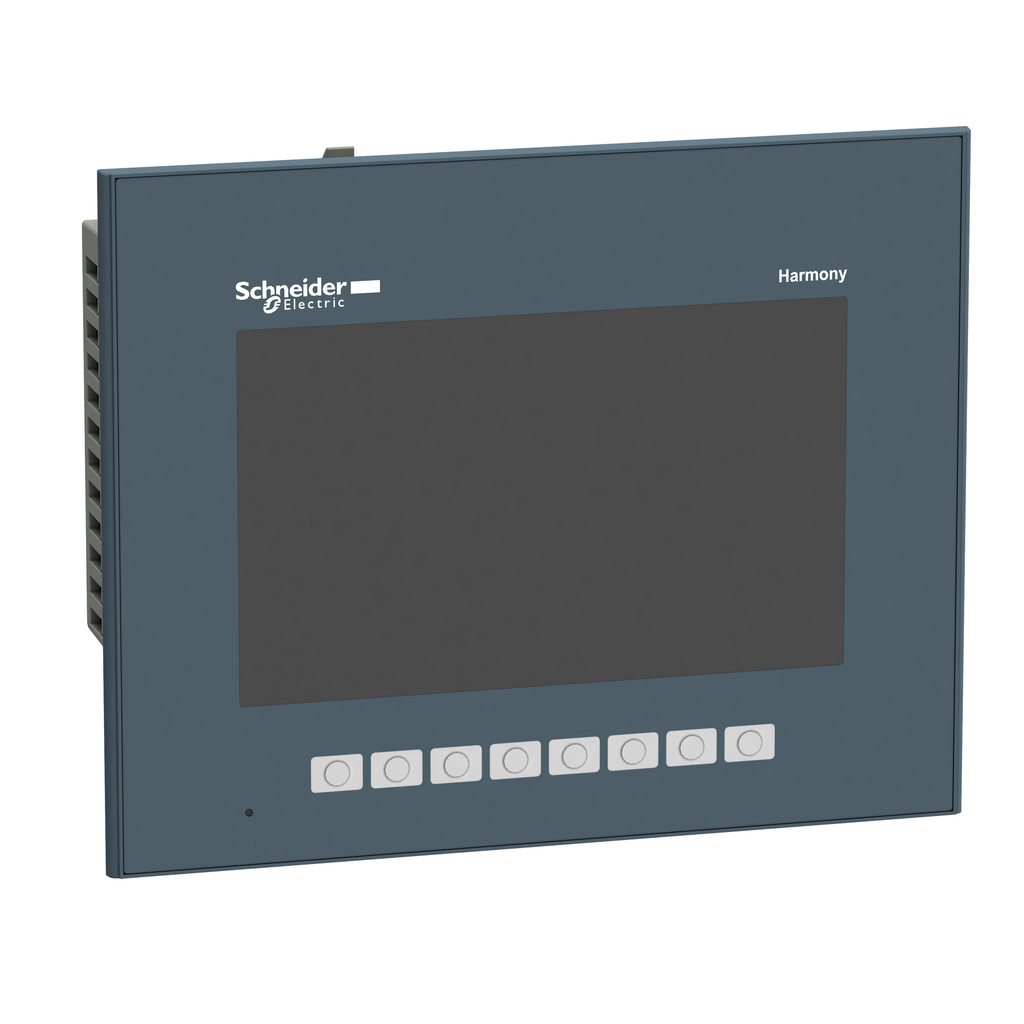

HMIGTO3510FC
Advanced touchscreen panel, Harmony GTO, 7.0 Color Touch WVGA TFT, coated display
Specifications
| Country of Origin | China |
|---|---|
| Width | 218 mm |
| Height | 173 mm |
| Weight | 1.2 kg |
| Range Of Product | Harmony GTO |
| Supply | external source |
| Battery Type | lithium internal RAM 100 days 5 day(s) 10 year(s) |
| Product Or Component Type | advanced touchscreen panel |
| Display Size | 7 inch |
| Control Button Type | 8 operation defined using Vijeo Designer push-button key F1...F8 |
| Display Colour | 65536 colours |
| Data Backed Up | 128 kB internal RAM SRAM) |
| Height | 173 mm |
| Touch Sensitive Zone | 1024 x 1024 |
| Inrush Current | 30 A |
| Software Designation | Vijeo Designer configuration software >= V6.1 |
| Brightness |
|
| Display Resolution | 800 x 480 pixels WVGA |
| Terminal Type | touchscreen display |
| Net Weight | 1.2 kg |
| Fixing Mode | by 4 screw clamps |
| Backlight Lifespan | 50000 hours white 25 °C |
| Local Signalling |
|
| Supply Voltage Limits | 19.2-28.8 V |
| Type Of Cooling | natural convection |
| Integrated Connection Type |
|
| Touch Panel | resistive film, 1000000 cycles |
| Product Mounting | flush mounting |
| Enclosure Material | PPT |
| Width | 218 mm |
| Display Type | backlit colour TFT LCD |
| Front Material | PPT |
| Depth | 60 mm |
| Maximum Power Consumption In W |
|
| Downloadable Protocols |
|
| [Us] Rated Supply Voltage | 24 V DC |
| Data Storage Equipment |
|
| Character Font |
|
| Memory Description | flash EPROM, 96 MB |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-50 °C |
| Standards |
|
| Shock Resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| Vibration Resistance |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -20-60 °C |
| Nema Degree Of Protection | NEMA 4X front panel (indoor use) |
| Relative Humidity | 10-90 % without condensation |
| Resistance To Electrostatic Discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
| Operating Altitude | < 6561.68 ft (2000 m) |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1402012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1402012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
