HMIGTO1310 – advanced touchscreen panel, Harmony GTO, 320 x 240pixels QVGA, 3.5inch TFT, 96MB
HMIGTO1310
advanced touchscreen panel, Harmony GTO, 320 x 240pixels QVGA, 3.5inch TFT, 96MB

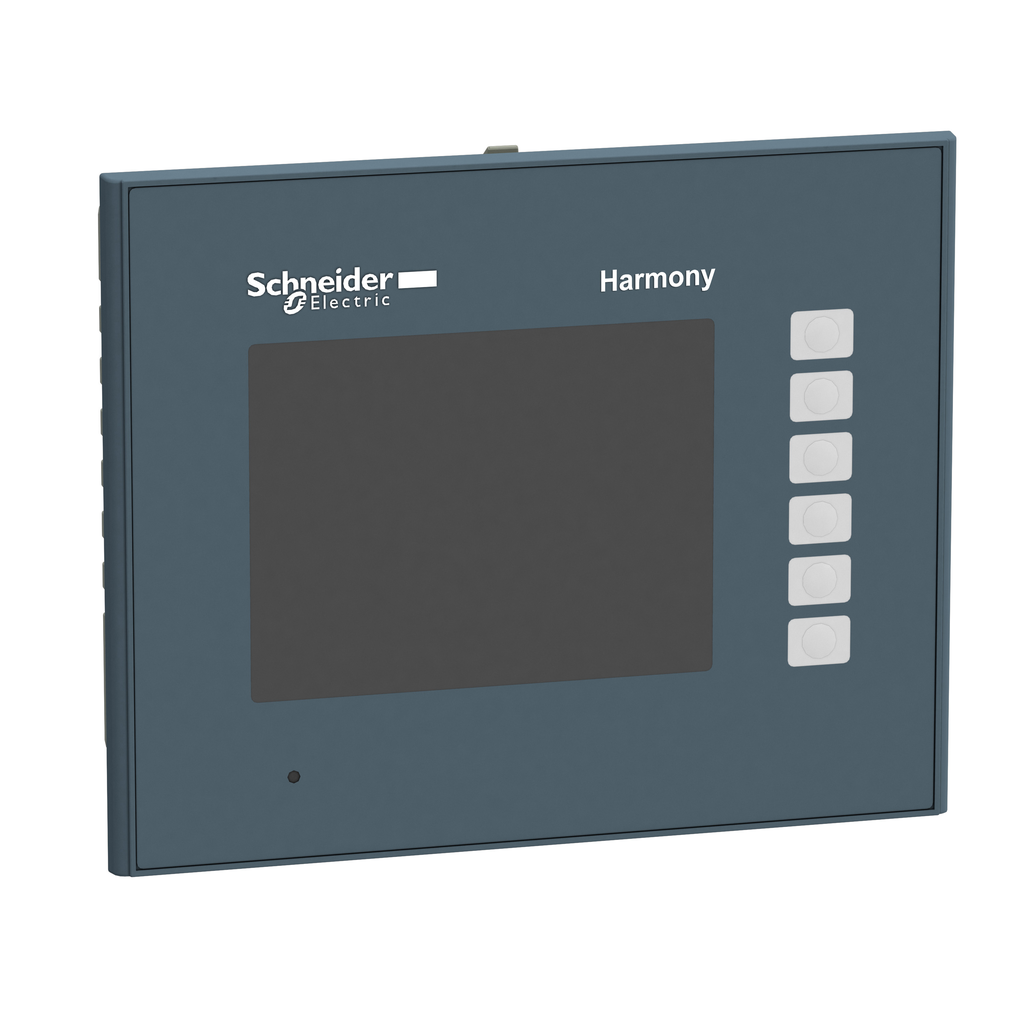

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 96MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony GTO
Supply external source
Battery Type lithium internal RAM 100 days 5 day(s) 10 year(s)
Product Or Component Type advanced touchscreen panel
Operating System Harmony
Display Size 3.5 inch
Control Button Type 6 operation defined using Vijeo Designer push-button key F1...F6
Display Colour 65536 colours
Warranty 18 months
Data Backed Up 512 KB internal RAM SRAM)
Height 106 mm
Touch Sensitive Zone 1024 x 1024
Inrush Current 30 A
Software Designation Vijeo Designer configuration software >= V6.1
Brightness
  • 16 levels by touch panel
  • 16 levels by software
Display Resolution 320 x 240 pixels QVGA
Terminal Type touchscreen display
Net Weight 0.4 kg
Fixing Mode by 4 screw clamps
Backlight Lifespan 50000 hours white 25 °C
Local Signalling
  • status LED green, steady offline
  • status LED green, steady operating
  • status LED orange, flashing software starting up
  • status LED red, steady power supply (ON)
  • status LED clear, faded power supply (OFF)
Supply Voltage Limits 19.2-28.8 V
Type Of Cooling natural convection
Integrated Connection Type
  • COM1 serial link RJ45 RS232C/RS485 2400...115200 bps
  • COM1 serial link RJ45 RS232C/RS485 187.5 kbps Siemens MPI
  • Ethernet RJ45 10BASE-T/100BASE-TX
  • Ethernet RJ45 IEEE 802.3
  • USB 2.0 type A
  • USB 2.0 type mini B
Touch Panel resistive film, 1000000 cycles
Product Mounting flush mounting
Enclosure Material PPT
Width 132 mm
Display Type backlit colour TFT LCD
Front Material PPT
Depth 42 mm
Maximum Power Consumption In W
  • 5.2 W when power is not supplied to external devices
  • 4.2 W when backlight is OFF
  • 4.3 W when backlight is dimmed
  • 9.6 W
Downloadable Protocols
  • Schneider Electric Modicon Modbus
  • Schneider Electric Modicon Uni-TE
  • Schneider Electric Modicon Modbus Plus
  • Schneider Electric Modicon FIPWAY
  • Mitsubishi Melsec third party protocols
  • Omron Sysmac third party protocols
  • Rockwell Automation Allen-Bradley third party protocols
  • Siemens Simatic third party protocols
  • Schneider Electric Modicon Modbus TCP
[Us] Rated Supply Voltage 24 V DC
Data Storage Equipment
  • SD card, <= 32 GB
  • SDHC card, <= 32 GB
Character Font
  • Chinese (simplified Chinese)
  • Korean
  • Taiwanese (traditional Chinese)
  • Japanese (ANK, Kanji)
  • ASCII (European characters)
Memory Description flash EPROM, 96 MB
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP120705EN_V1
Sustainable Offer Status Green Premium product
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI120704EN_V1
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • KCC
  • cULus
  • C-tick
  • CE
  • UKCA
  • UKEX
Ambient Air Temperature For Operation 0-50 °C
Standards
  • IEC 61000-6-2
  • UL 508
  • EN 61131-2
Shock Resistance 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Vibration Resistance
  • 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
  • 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
Ip Degree Of Protection
  • IP20 IEC 60529 rear panel)
  • IP65 IEC 60529 front panel)
Ambient Air Temperature For Storage -20-60 °C
Nema Degree Of Protection NEMA 4X front panel (indoor use)
Relative Humidity 10-90 % without condensation
Resistance To Electrostatic Discharge 6 kV contact discharge IEC 61000-4-2 level 3
Operating Altitude < 6561.68 ft (2000 m)
