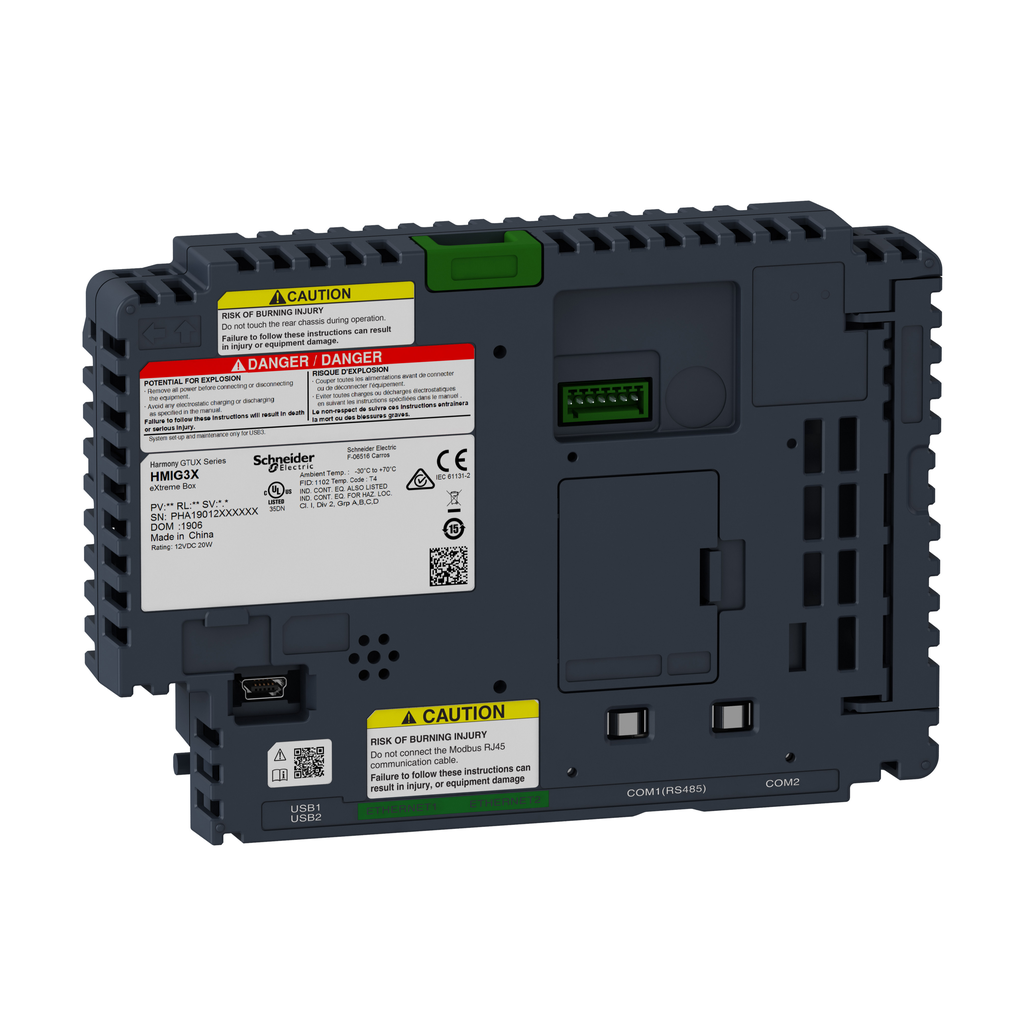

HMIG3X - Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated

HMIG3X

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated

Add to Quote Catalogue

Specifications

Country of Origin	China
Width	188 mm
Height	131 mm
Weight	0.9 kg
Power Consumption In W	20.0 W
Range Of Product	Harmony GTUX
[Us] Rated Supply Voltage	12 V DC power supply
Product Or Component Type	base unit
Device Short Name	eXtreme Box
Height	131 mm
Software Package	Vijeo Designer run time EcoStruxure Operator Terminal Expert
Number Of Slots	2 slot(s) for SD card
Net Weight	0.9 kg
Memory Description	256 MB RAM internal 2 x 13 mm board) 512 KB NVRAM backup memory
Communication Port Protocol	Modbus TCP/IP Modbus serial Uni-Telway
Processor Name	CPU RISC 600 MHz
Type Of Cooling	natural convection
Integrated Connection Type	Ethernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T COM1 serial link RJ45 RS485 110...115200 bit/s COM1 serial link RJ45 RS485 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s auxiliary port terminal block expansion unit fieldbus card USB 2.0 port 2 USB type A USB 2.0 port mini B USB
Width	188 mm
Depth	45 mm
Data Storage Equipment	1 GB SD card
Operating System	Harmony
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1402017EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1402017EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CE KC RCM EAC ATEX zone 2/22 IEC-Ex UL CSA UKCA UKEX
Ambient Air Temperature For Operation	-30-70 °C
Standards	UL 61010 UL 121201 CSA C22.2 No 213 CSA C22.2 No 61010-1 IEC 61132-2
Electromagnetic Compatibility	electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
Vibration Resistance	7 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 19.6 m/s² 9-150 Hz) EN/IEC 61131-2
Shock Resistance	392 m/s² X, Y, Z directions for 3 times)EN/IEC 61131-2
Pollution Degree	2 EN 61131-2 Ed.3
Ambient Air Temperature For Storage	-30-70 °C
Environmental Characteristic	corrosive gas free
Relative Humidity	10-90 % non-condensing
Resistance To Electrostatic Discharge	6 kV contact discharge EN/IEC 61000-4-2 level 3 8 kV air discharge EN/IEC 61000-4-2 level 3
Operating Altitude	6561.68 ft (2000 m)
Resistance To Fast Transients	1 kV IEC 61000-4-4 signal ports) 2 kV IEC 61000-4-4 power ports)

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated
