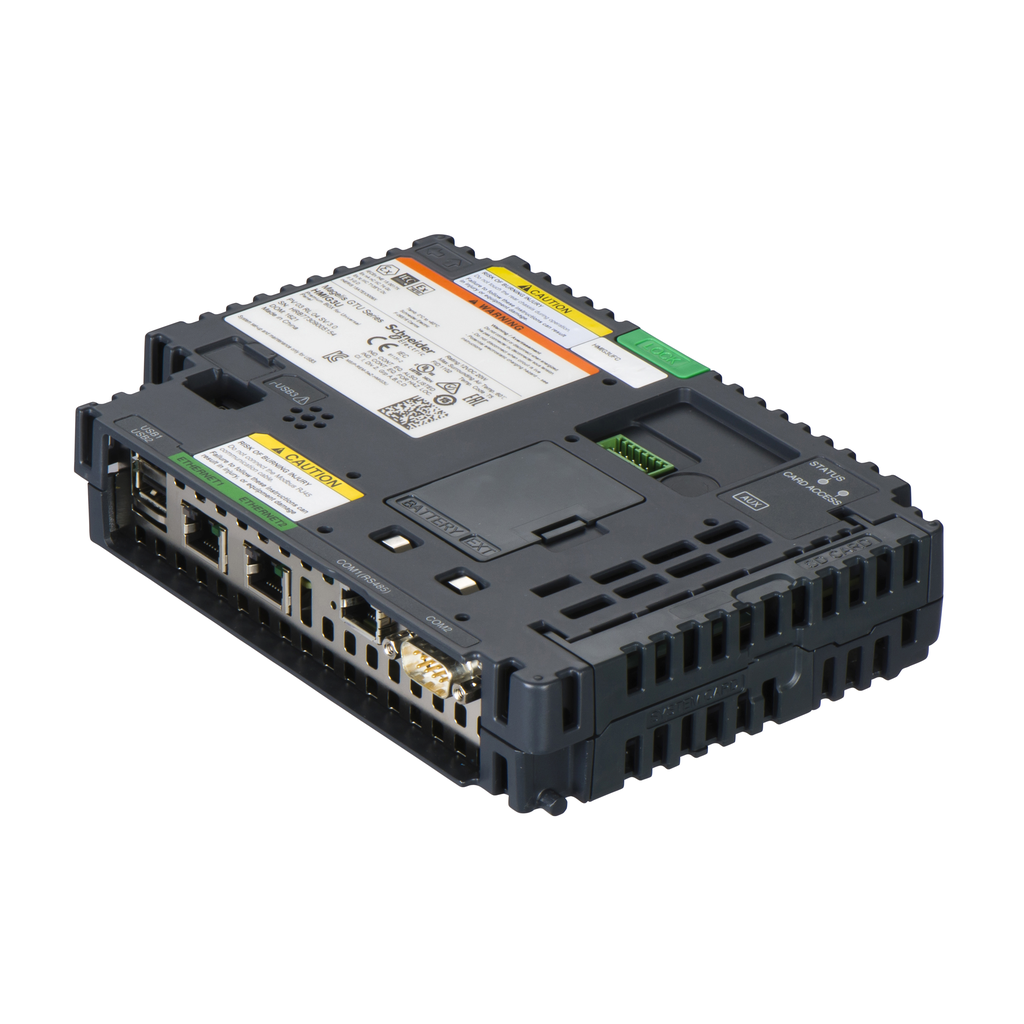

HMIG3UFC
Base unit, Harmony GTU, Premium BOX for Universal Panel
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403023EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403023EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 131 mm |
| Software Package | Vijeo Designer run time |
| Communication Port Protocol |
|
| Net Weight | 0.9 kg |
| Depth | 45 mm |
| Memory Description |
|
| Processor Name | CPU RISC 600 MHz |
| Integrated Connection Type |
|
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Width | 188 mm |
| Type Of Cooling | natural convection |
| Data Storage Equipment | 1 GB SD card |
| Operating System | Harmony |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Product Certifications |
|
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
| Vibration Resistance |
|
| Pollution Degree | 2 EN 61131-2 Ed.3 |
| Ambient Air Temperature For Storage | -20-60 °C |
| Relative Humidity | 10-90 % non-condensing |
| Operating Altitude | 6561.68 ft (2000 m) |
| Country of Origin | China |
| Width | 188 mm |
| Height | 131 mm |
| Weight | 0.9 kg |
| Range Of Product | Harmony GTU |
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| Product Or Component Type | base unit |
| Range Compatibility | Harmony GTU |
| Device Short Name | Premium Box |
