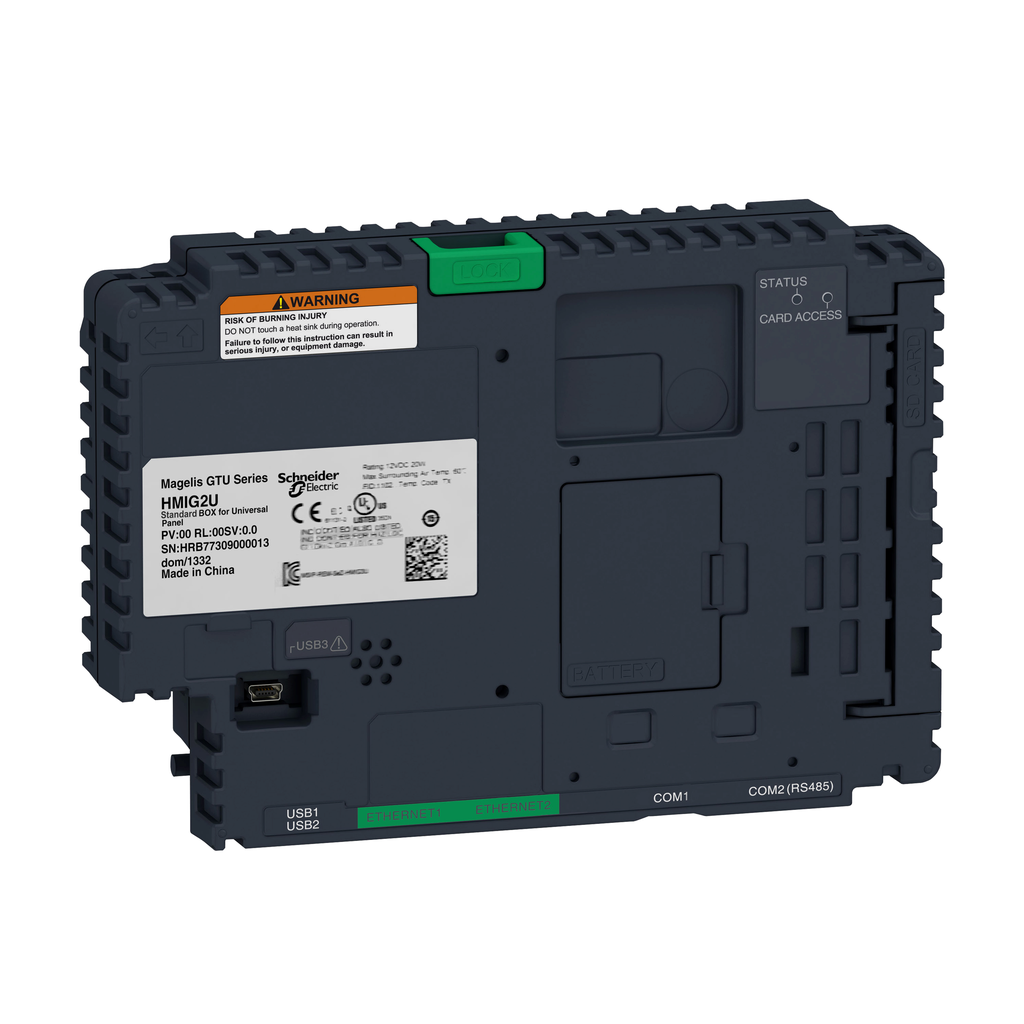

HMIG2U - base unit, Harmony GTU, standard box, 1GB built-in flash memory

HMIG2U

base unit, Harmony GTU, standard box, 1GB built-in flash memory

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1403023EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403023EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Indonesia
Width	188 mm
Height	131 mm
Weight	0.9 kg
Range Of Product	Harmony GTU
[Us] Rated Supply Voltage	12...24 V DC power supply
Product Or Component Type	base unit
Range Compatibility	Harmony GTU Allen-Bradley ABB MitsubishI Omron Siemens
Device Short Name	standard box
Height	131 mm
Software Package	Vijeo Designer run time 8000 variables
Communication Port Protocol	Modbus Modbus TCP/IP Uni-Telway
Number Of Slots	1 slot(s) for SD card
Net Weight	0.9 kg
Local Signalling	, green LED steady)operating status (RUN) , green LED faded)stand-by , orange LED flashing)software starting up , red LED steady)power ON , green, orange and red LED alternate)module error (ERR) , red/orange LED alternate)boot status , green/red LED alternate)connection status
Depth	45 mm
Memory Description	256 MB RAM internal 2 x 13 mm board) 512 KB NVRAM backup memory
Processor Name	CPU RISC 600 MHz
Integrated Connection Type	Ethernet TCP/IP 2 RJ45 COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps USB 2.0 port 2 USB type A USB 2.0 port mini B USB
Realtime Clock	built-in
Port Ethernet	10BASE-T/100BASE-T
Width	188 mm
Type Of Cooling	natural convection
Data Storage Equipment	1 GB built-in flash memory
Operating System	Harmony
Ambient Air Temperature For Operation	0-60 °C
Standards	CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 class I division 2 CSA C22.2 No 213 IEC 61132-2
Product Certifications	CE cULus ATEX IEC-Ex RCM GL KC cUL EAC UKCA UKEX
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Shock Resistance	147 m/s² X, Y, Z directions for 3 times)IEC 61131-2
Vibration Resistance	3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 9.8 m/s² 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
Pollution Degree	2 IEC 61131-2 ed.3
Ambient Air Temperature For Storage	-20-60 °C
Environmental Characteristic	corrosive gas free
Relative Humidity	10-90 % non-condensing
Resistance To Electrostatic Discharge	6 kV contact discharge IEC 61000-4-2 level 3 8 kV air discharge IEC 61000-4-2 level 3
Operating Altitude	6561.68 ft (2000 m)
Resistance To Fast Transients	1 kV IEC 61000-4-4 signal ports) 2 kV IEC 61000-4-4 power ports)
