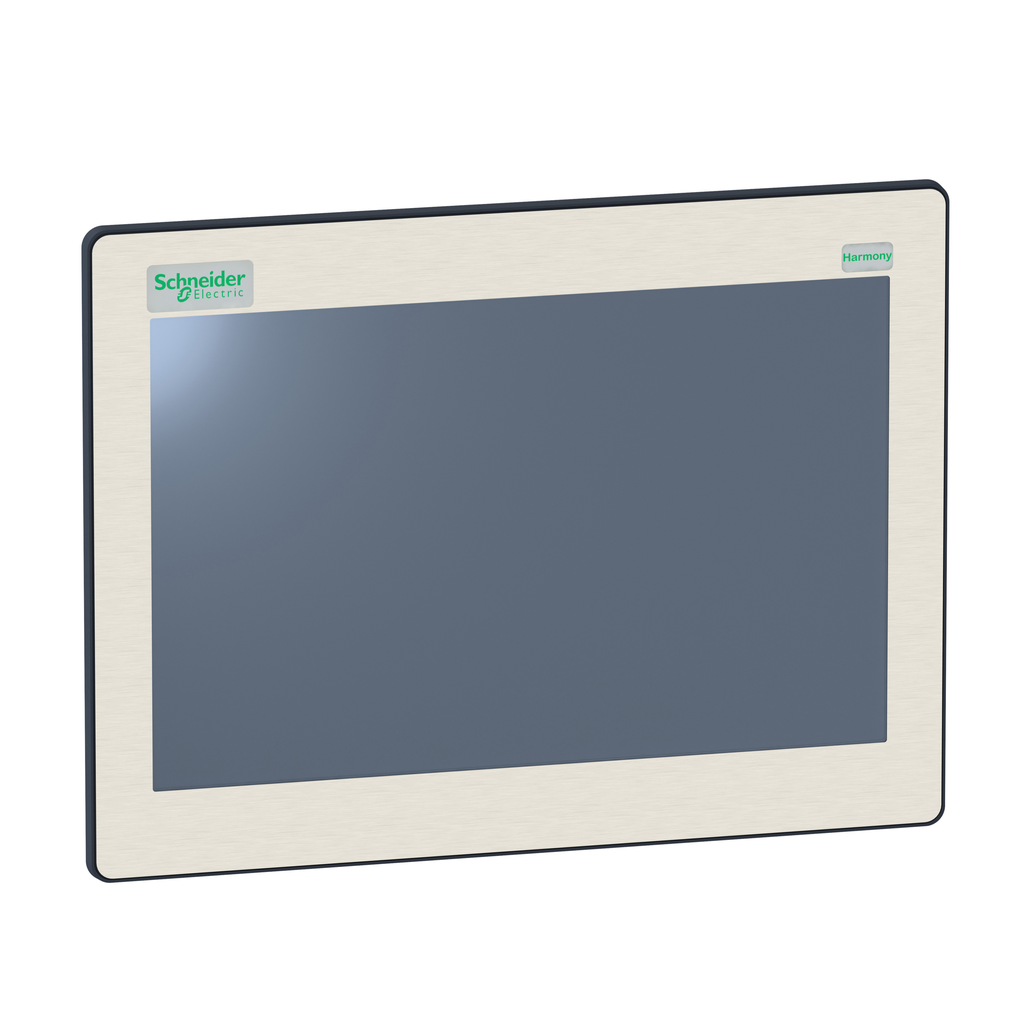

HMIDT65XFH - EXtreme touchscreen panel, Harmony GTUX, 12 W Display full coated

HMIDT65XFH

EXtreme touchscreen panel, Harmony GTUX, 12 W Display full coated

Add to Quote Catalogue

Specifications

Product Certifications	KC CE RCM EAC ATEX zone 2/22 IEC-Ex UL CSA UKCA UKEX
Ambient Air Temperature For Operation	-30-70 °C IEC 61131-2
Standards	UL 61010 UL 121201 CSA C22.2 No 213 CSA C22.2 No 61010-1 IEC 61132-2
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ip Degree Of Protection	IP66f IP67f front panel Type 4X
Shock Resistance	392 m/s²IEC 61131-2
Vibration Resistance	7 mm constant amplitude 5-9 Hz) IEC 61131-2 19.6 m/s² 9-150 Hz) IEC 61131-2
Pollution Degree	2
Ambient Air Temperature For Storage	-30-70 °C
Environmental Characteristic	3C3 UV resistant
Relative Humidity	10-90 % non-condensing
Operating Altitude	6561.68 ft (2000 m)
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1402017EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1402017EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	United States
Width	308.5 mm
Height	230.5 mm
Weight	3.2 kg
Power Consumption In W	12.5 W
Range Of Product	Harmony GTUX
[Us] Rated Supply Voltage	12 V DC power supply
Inrush Current	30 A
Product Or Component Type	eXtreme touchscreen panel
Terminal Type	touchscreen display
Supply Voltage Limits	10.8-28.8 V
Height	230.5 mm
Pixel Resolution	1280 x 800
Touchscreen Resolution	1024 x 1024
Display Resolution	1280 x 800 pixels WVGA
Luminance	1000 cd/m²
Net Weight	3.2 kg
Cut-Out Dimensions	295 (+ 1/- 0) x 217 (+ 1/- 0) mm
Type Of Cooling	natural convection
Display Type	colour TFT LCD
Touch Panel	single touch analogue resistive
Display Size	12.1 inch
Display Colour	262144 colors
Width	308.5 mm
Depth	68 mm
Aspect Ratio	4:3
