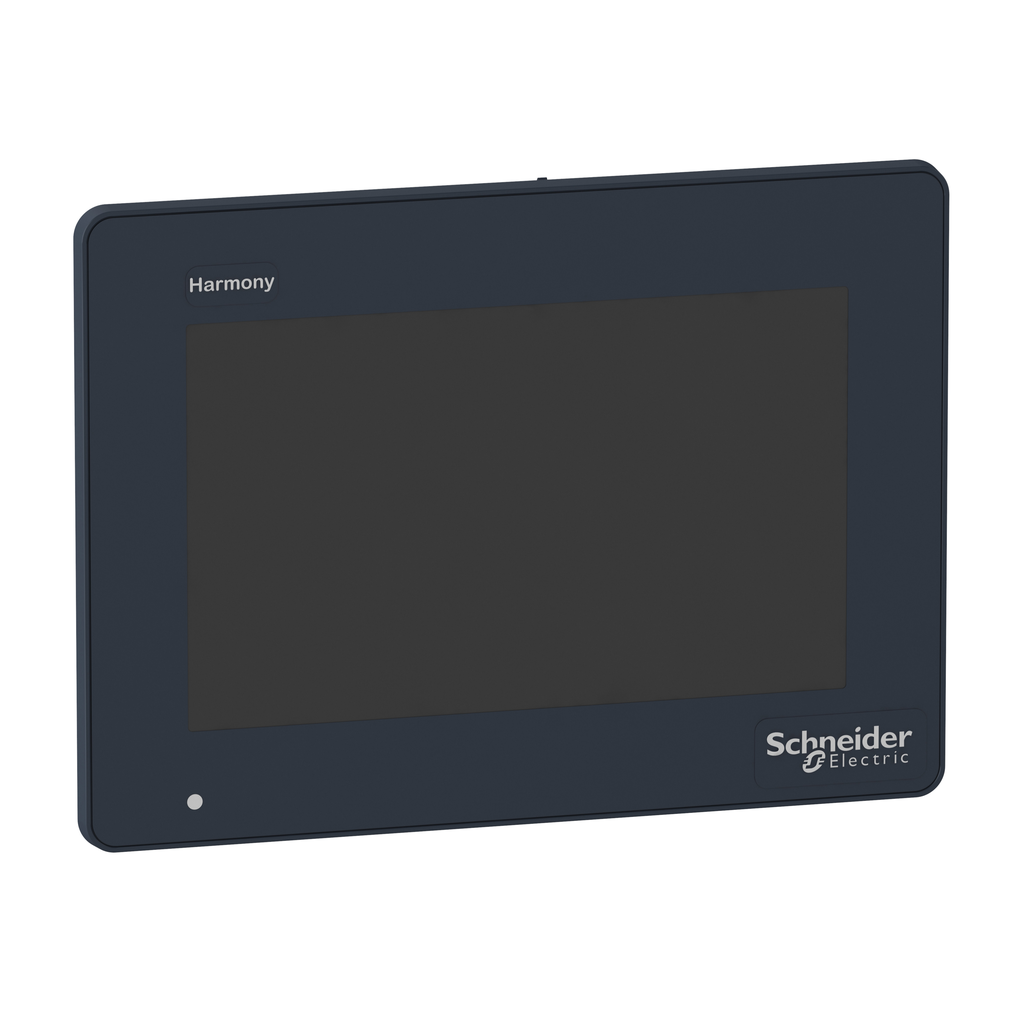

HMIDT351FC
Advanced touchscreen panel, Harmony GTU, 7 W Touch Display WVGA, coated display
Specifications
| Ambient Air Temperature For Operation | 0-60 °C EN 61131-2 |
|---|---|
| Standards | UL 508 |
| Product Certifications |
|
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
| Ip Degree Of Protection | front panel IP66 |
| Shock Resistance | 147 m/s²EN/IEC 61131-2 |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 |
| Ambient Air Temperature For Storage | -20-60 °C |
| Relative Humidity | 10-90 % non-condensing |
| Nema Degree Of Protection | NEMA 4X front panel |
| Operating Altitude | 6561.68 ft (2000 m) |
| Provided Equipment | 1 flash card |
| Height | 148.6 mm |
| Pixel Resolution | 800 x 480 |
| Touchscreen Resolution | 1024 x 1024 |
| Display Resolution | 800 x 480 pixels WVGA |
| Net Weight | 1.2 kg |
| Type Of Installation | indoor installation |
| Depth | 36 mm |
| Backlight Lifespan | 50000 hours |
| Cut-Out Dimensions | 190 (+ 1/- 0) x 135 (+ 1/- 0) mm |
| Display Type | colour TFT LCD |
| Touch Panel | single touch analogue resistive |
| Display Size | 7 inch |
| Display Colour | 262144 colors |
| Width | 203.6 mm |
| Type Of Cooling | natural convection |
| Aspect Ratio | 4:3 |
| Country of Origin | China |
| Width | 203.6 mm |
| Height | 148.6 mm |
| Weight | 1.2 kg |
| Power Consumption In W | 6.5 W |
| Range Of Product | Harmony GTU |
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| Inrush Current | 30 A |
| Product Or Component Type | advanced touchscreen panel |
| Terminal Type | touchscreen display |
| Supply Voltage Limits | 10.8-28.8 V |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1402017EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1402017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
