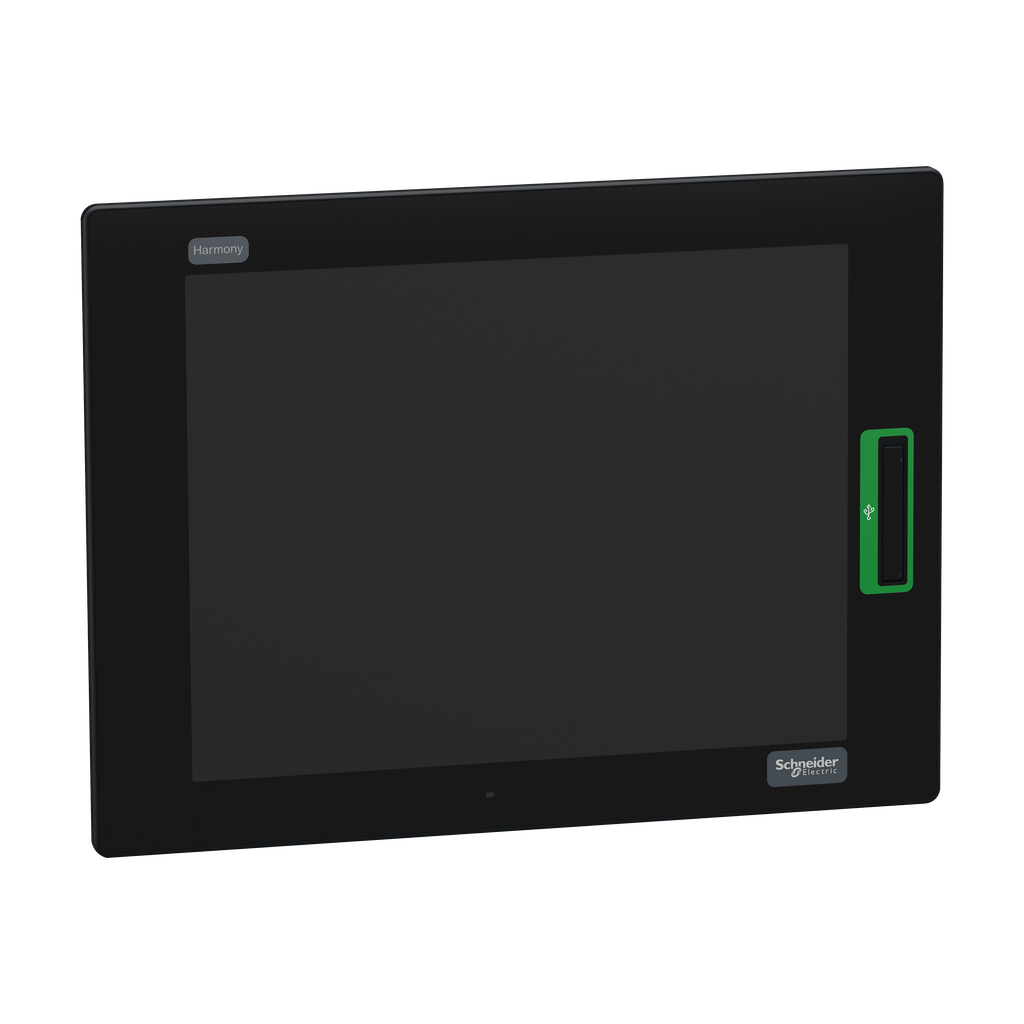

This industrial display belongs to the Schneider Electric's Harmony HMI P6 range. This 2 point multi-touch resistive HMIDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours. This is a 15 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA). There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 161VAMax. (AC model) and 141WMax. (DC model), with P6 Standard Modular Box is 82VAMax. (AC model) and 72WMax. (DC model). Its dimensions are 397mm (width) x 296mm (height) x 30mm (depth) and weighs 3.70Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This display when combined with any of the Harmony P6 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.

Brand: Schneider Electric
