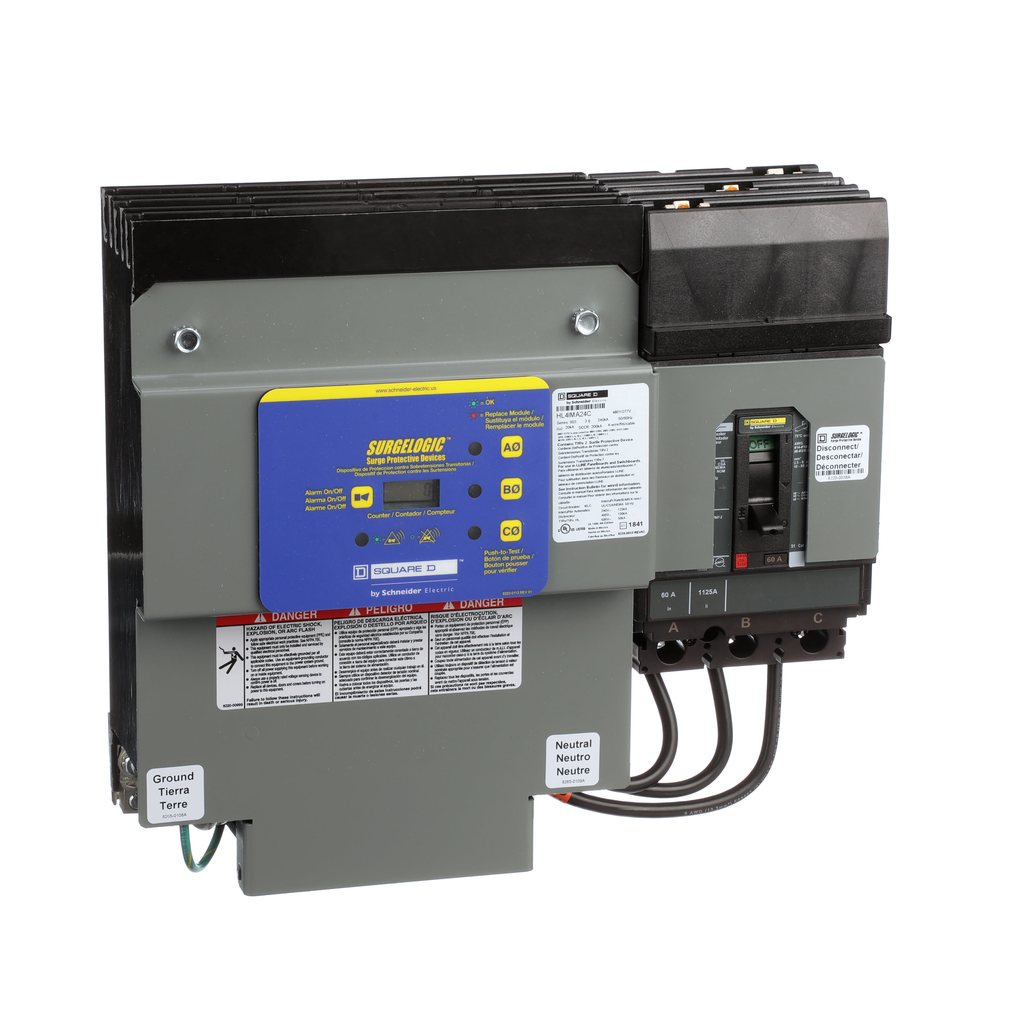

Surge protection device, Surgelogic, HL, 240kA, 480Y/277VAC, 3 phase, 4 wire, SPD type 2
Surgelogic™ internally mounted surge protection devices delivers specification grade performance for service entrance or critical branch I-Line panel applications. These multiphase systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. They provide better performance with a diagnostic interface with push to test diagnostic switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. These products have a 10 year product warranty and 10 modes of protection. This surge protection device is 3 phase, 4-wire + ground, 480Y/277 V, 50 kA breaking capacity, 240 kA surge current, and short circuit current rating of 200 kA. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Nema Degree Of Protection | NEMA 2 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 308.9 mm |
| Breaking Capacity | 50 kA |
| Connections - Terminals |
|
| Mounting Support | panel mounting |
| Cable Length | 483 mm |
| Provided Equipment |
|
| Surge Current | 240 kA |
| Phase | 3 phase |
| Local Signalling |
|
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Line Rated Current | 60 A |
| Width | 341.9 mm |
| Wiring Configuration | 4-wire |
| Depth | 142.1 mm |
| Trip Unit Technology | thermal-magnetic |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| Country of Origin | Mexico |
| Length | 483 mm |
| Width | 341.9 mm |
| Height | 308.9 mm |
| Range Of Product | Surgelogic |
| Breaking Capacity Code | HL |
| Product Or Component Type | surge protection device |
| Device Short Name | IMA |
Documents
- Surgelogic I-Line Plug-on Surge Protective Device (SPD) Instruction Bulletin - 8222-0015+Rev04 (pdf)
- Spec Sheet
- Surge Protective Devices: Section 6 - Digest 179 (2024) - Surge-SPDs-Digest-Digest-Catalog-0100CT2401-SEC-06 (pdf)
- Digest Catalog 06: Surge Protective Devices (MAR 2022) - 0100CT1901_SEC-06_March2022 (pdf)
- Square D Residential Surge Protection Devices Catalog - 6671CT9701 (pdf)
