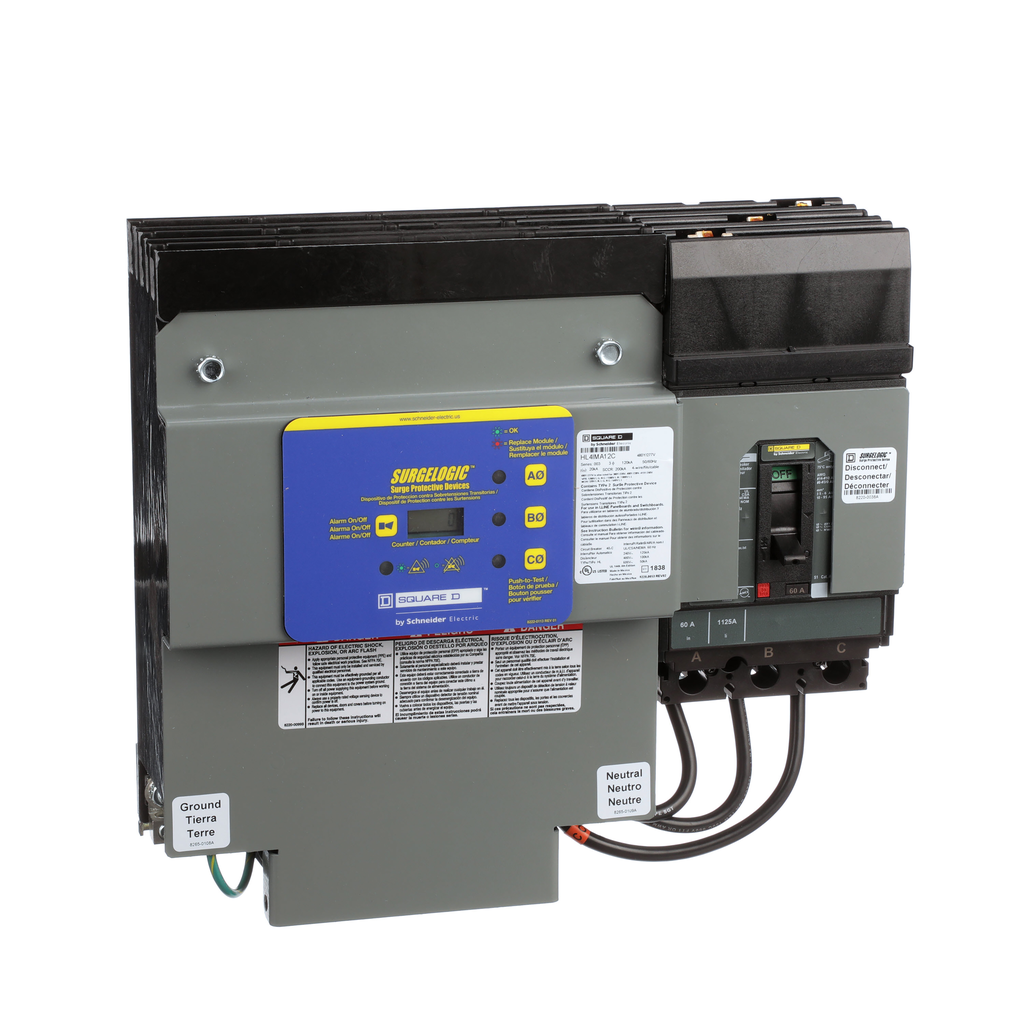

HL4IMA12C
Surge protection device, Surgelogic, HL, 120kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2
Surgelogic™ EMA and EBA series SPDs, HL4IMA12C, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Breaking Capacity Code | HL |
| Product Or Component Type | surge protection device |
| Device Short Name | IMA |
| Warranty | 18 months |
| Height | 308.9 mm |
| Local Signalling |
|
| Breaking Capacity | 50 kA |
| Connections - Terminals |
|
| Short-Circuit Protection | 200 kA |
| Mounting Support | panel mounting |
| Cable Length | 483 mm |
| Provided Equipment |
|
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Line Rated Current | 60 A |
| Surge Current | 120 kA |
| Wiring Configuration | 4-wire |
| Width | 341.9 mm |
| Depth | 142.1 mm |
| Phase | 3 phase |
| Trip Unit Technology | thermal-magnetic |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Nema Degree Of Protection | NEMA 2 |
| Standards |
|
