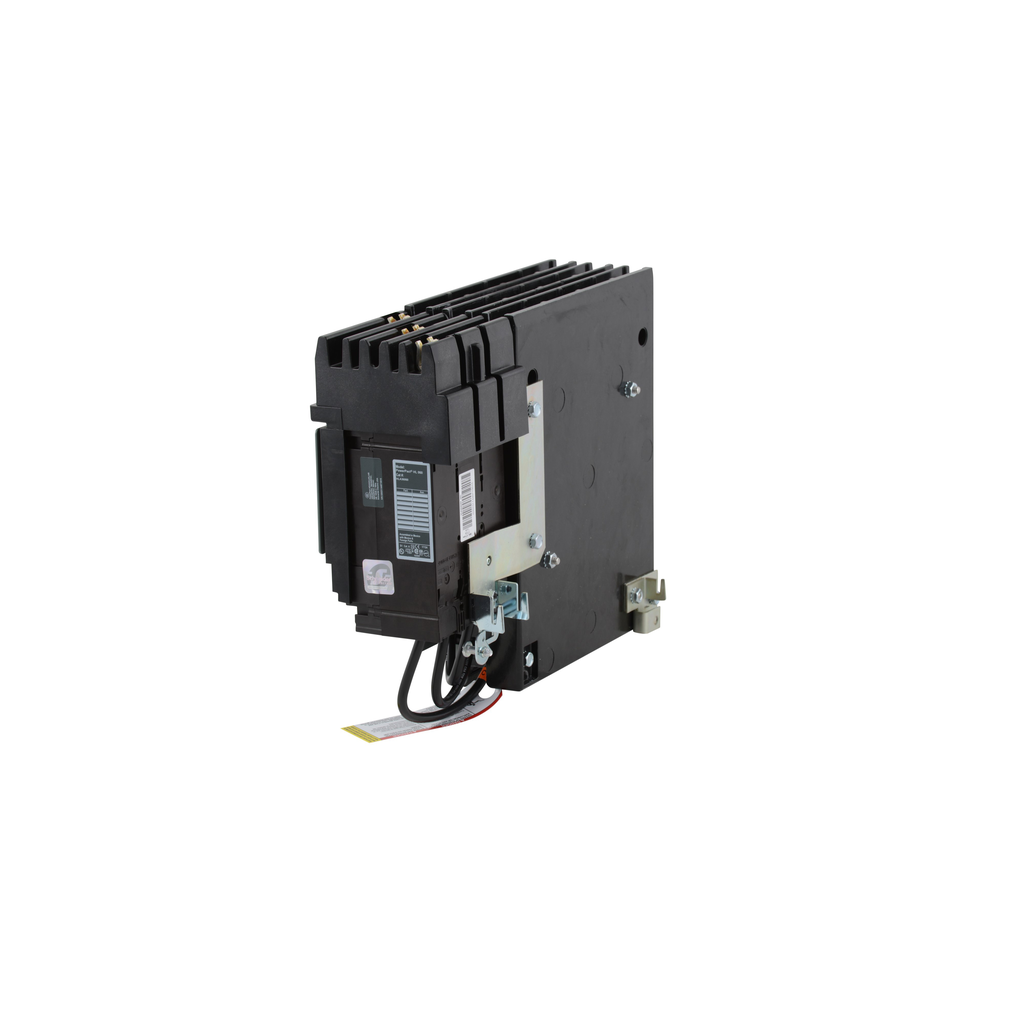

HL2IMA12C – Surge protection device, Surgelogic, HL, 120kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2
HL2IMA12C
Surge protection device, Surgelogic, HL, 120kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2

Surgelogic™ EMA and EBA series SPDs, HL2IMA12C, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. They can be installed in accessory compartments behind the circuit breaker accessory cover. This accessory Certified to UL, IEC, CSA, CE, CCC, Standards.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Standards
  • UL 1449:ed. 3
  • UL 1283:ed. 5
  • CSA C22.2 No 8:1986
  • UL 96A:ed. 12
  • UL 489:ed. 11
  • CSA C22.2 No 5-09
Nema Degree Of Protection NEMA 2
Warranty 18 months
Rohs Exemption Information Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant with Exemptions
Height 308.9 mm
Breaking Capacity 50 kA
Connections - Terminals
  • I-Line line
  • lugs ground AWG 6 copper 4 N.m
  • lugs neutral AWG 6 copper 4 N.m
Mounting Support panel mounting
Cable Length 483 mm
Provided Equipment
  • alarm enable/disable switch
  • surge counter
  • circuit-breaker
Surge Current 120 kA
Phase 3 phase
Local Signalling
  • status LED green per phase normal operation
  • status LED red per phase fault
Short-Circuit Protection 200 kA
[Uc] Maximum Continuous Operating Voltage 150 V
Line Rated Current 60 A
Width 341.9 mm
Wiring Configuration 4-wire
Depth 142.1 mm
Trip Unit Technology thermal-magnetic
Number Of Poles 3
[Ue] Rated Operational Voltage 208Y/120 V AC
Country of Origin Mexico
Length 483 mm
Width 341.9 mm
Height 308.9 mm
Range Of Product Surgelogic
Breaking Capacity Code HL
Product Or Component Type surge protection device
Device Short Name IMA
