HJPA

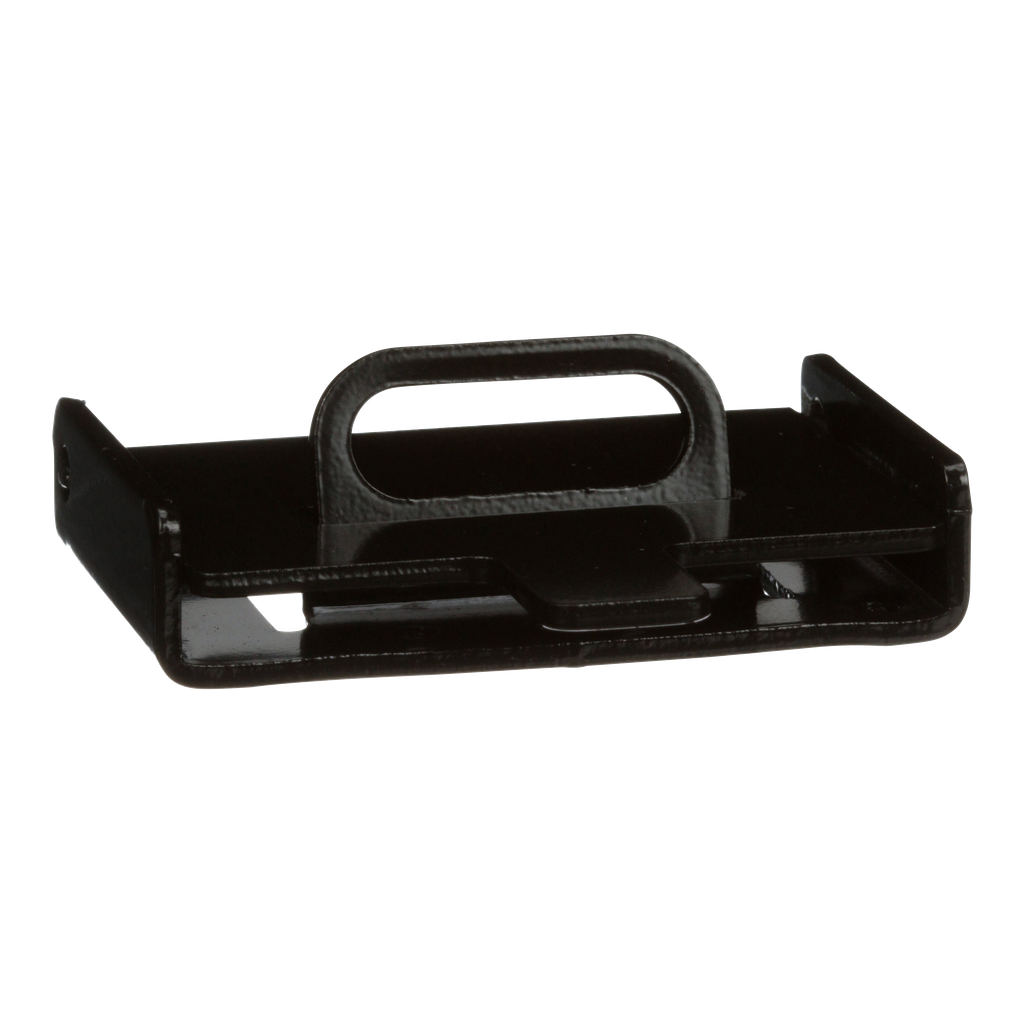

Circuit breaker accessory, PowerPacT H/J, padlocking device, fixed handle, OFF or ON
This padlocking device is one of the available accessories for PowerPacT H and J circuit breakers. HJPA is a field installable fixed lock and can lock the breaker handle in either ON or OFF position. Locks can also be ordered factory installed. These locks are not compatible with HD or HG two pole circuit breakers but fit HJ two pole, all H three pole devices, and both two pole and three pole J-Frame breakers. This device meets UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product |
|
| Product Destination | circuit breaker |
| Product Or Component Type | padlocking device |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Destination | handle |
| Locking Options Description | padlocking device |
| Locking Position | both positions |
| Provision For Padlocking | padlockable |
| Product Certifications |
|
Documents
- DC Wiring Diagram, PowerPacT H-J - GEX56603 (pdf)
- Rating Plugs for MicroLogic 3.0/5.0/6.0/7.0 A/P/H Trip Unit Installation - JYT65466 (pdf)
- Fixed Padlock Attachment Kits S29371 and S37422 for PowerPacT H- and J-Frame and TeSys GV5 Circuit Breakers Installation - JYT65472 (pdf)
- Spec Sheet
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
