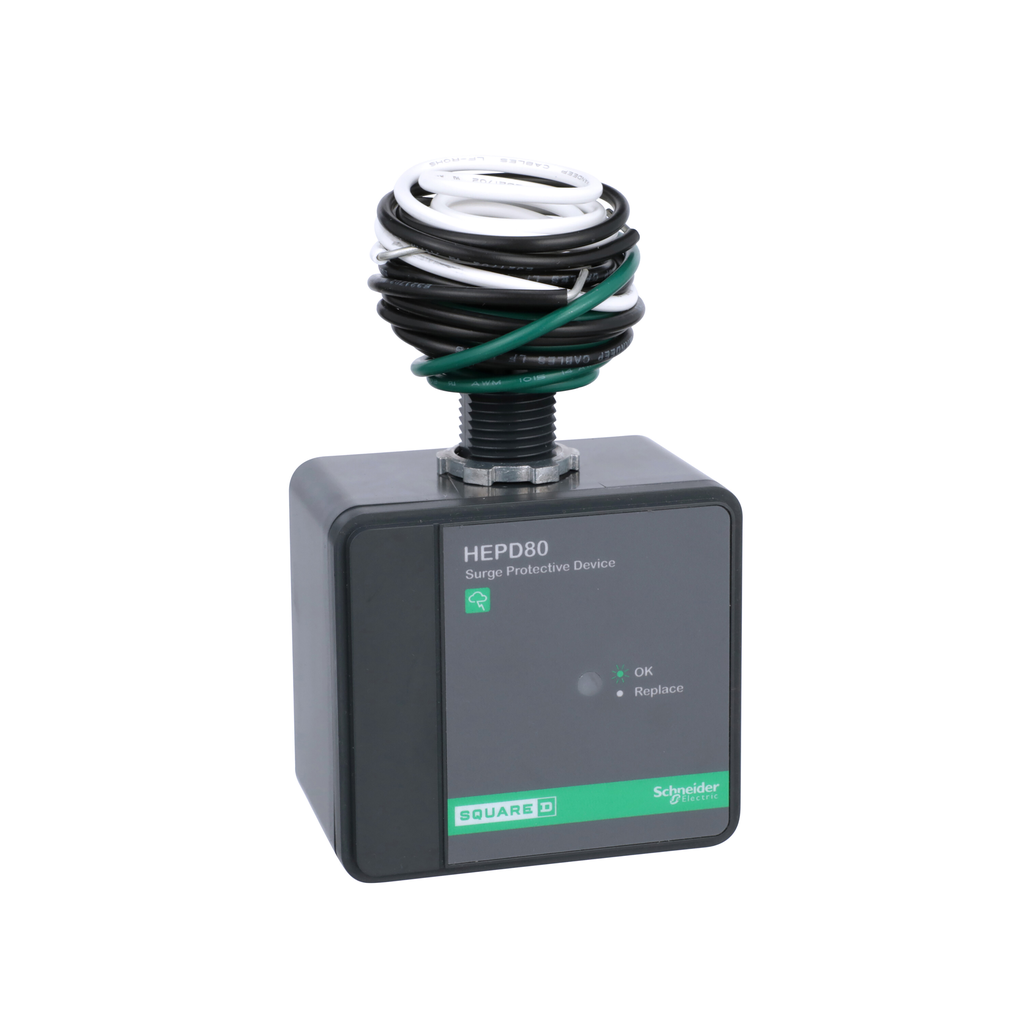

HEPD80W - Surge protection device, HEPD, 80kA, 120/240 V, 1 phase, 3 wire, SPD type 1, wholesale

HEPD80W

Add to Quote Catalogue

Input Voltage	600 V L-N 600 V L - G 1000 V L - L 900 V N - G
Height	3.23 in
Local Signalling	1 LED green normal operation
Short-Circuit Protection	25 kA
[Uc] Maximum Continuous Operating Voltage	150 V
Surge Current	80 kA per phase
Wiring Configuration	3-wire (isolated ground)
Width	3.72 in
Depth	2.10 in
Nominal Discharge Current	10 kA
Type Of Packing	wholesale
Phase	1 phase
Product Destination	load center
[Ue] Rated Operational Voltage	120/240 V AC
Country of Origin	Mexico
Width	3.72 in
Height	3.23 in
Range Of Product	Square D
Product Or Component Type	surge protection device
Device Short Name	HEPD
Ambient Air Temperature For Operation	-35-65 °C
Nema Degree Of Protection	NEMA 4X
Standards	CSA C22.2 No 8 UL 1449 cUL UL 1449:ed. 4: type II
Eu Rohs Directive	Under investigation
