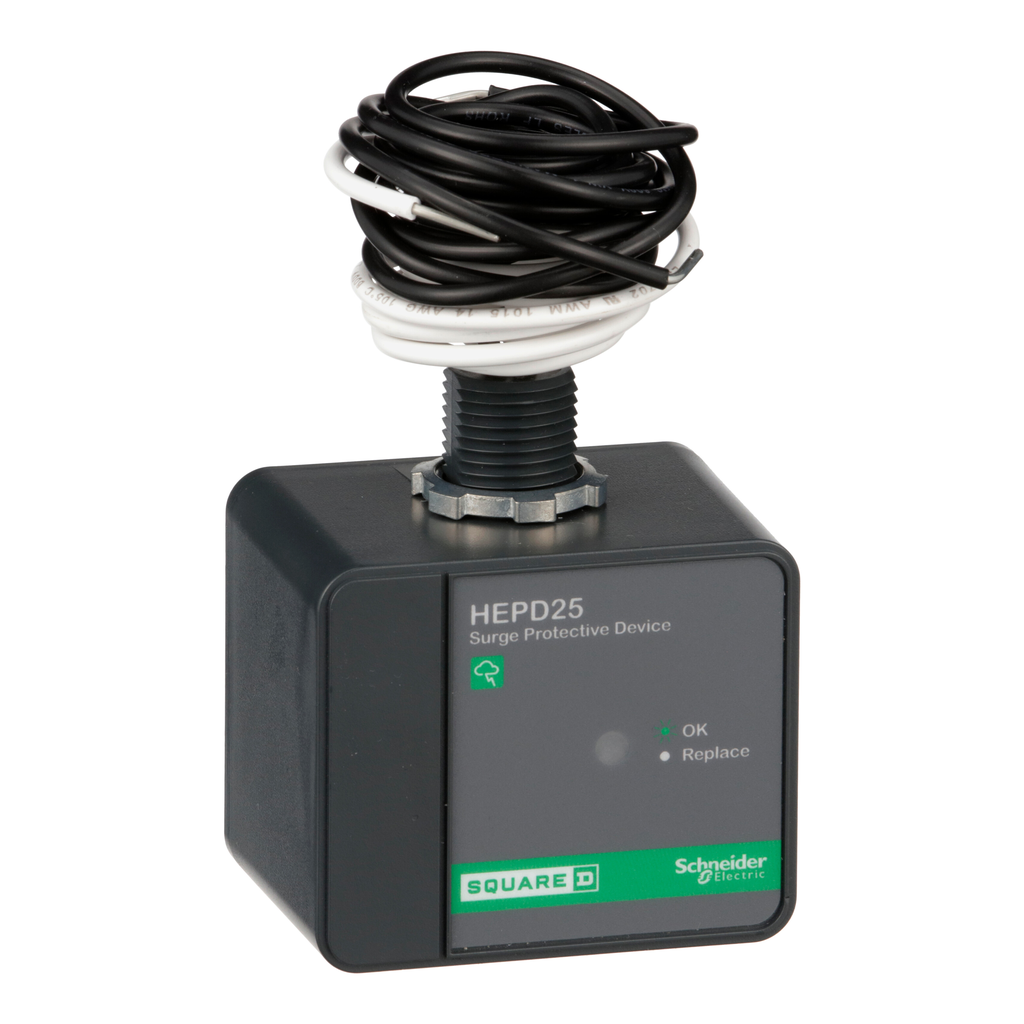

HEPD25W
Surge protection device, HEPD, 25kA, 120/240 V, 1 phase, 3 wire, SPD type 1, wholesale
Specifications
| Country of Origin | United States |
|---|---|
| Width | 2.89 in |
| Height | 2.45 in |
| Range Of Product | Square D |
| Product Or Component Type | surge protection device |
| Device Short Name | HEPD |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 2.45 in |
| Surge Current | 25 kA per phase |
| Nominal Discharge Current | 10 kA |
| Type Of Packing | wholesale |
| Phase | 1 phase |
| Product Destination | load center |
| Input Voltage | 600 V L-N |
| Local Signalling | 1 LED green normal operation |
| Short-Circuit Protection | 22 kA |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Wiring Configuration | 3-wire (isolated ground) |
| Width | 2.89 in |
| Depth | 2.06 in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Nema Degree Of Protection | NEMA 4X |
