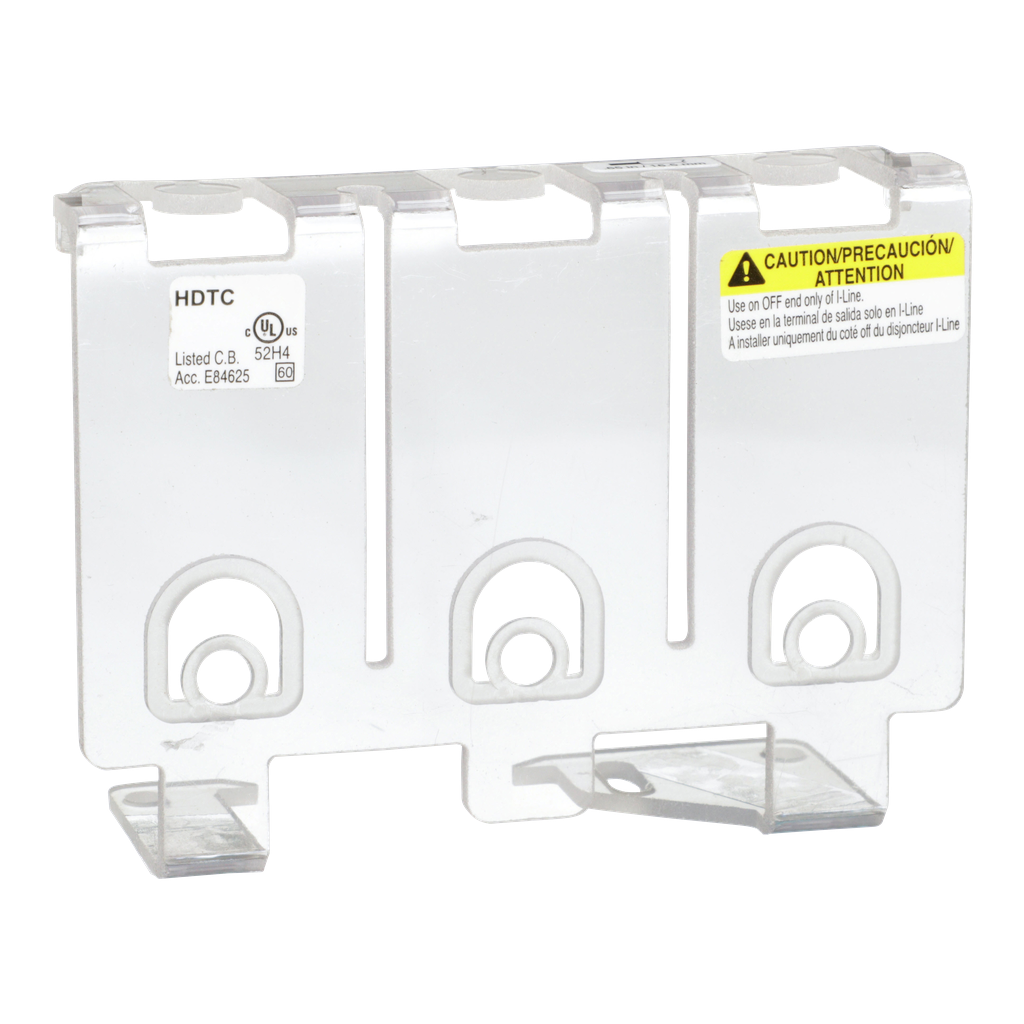

Panelboard accessory, I-Line, terminal cover, 600V AC/DC, circuit breaker, H-frame
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, terminal cover for H-frame breakers with a rateed current of 150A with an operational voltage of 600V AC/DC@50/60 Hz. This product complys to CSA & UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| [Ue] Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
| Line Rated Current | 150-150 A |
| Product Destination | circuit breaker OFF end |
| Country of Origin | United States |
| Range Of Product | I-Line |
| Circuit Breaker Type | H-frame |
| Product Or Component Type | terminal cover |
| Warranty | 18 months |
