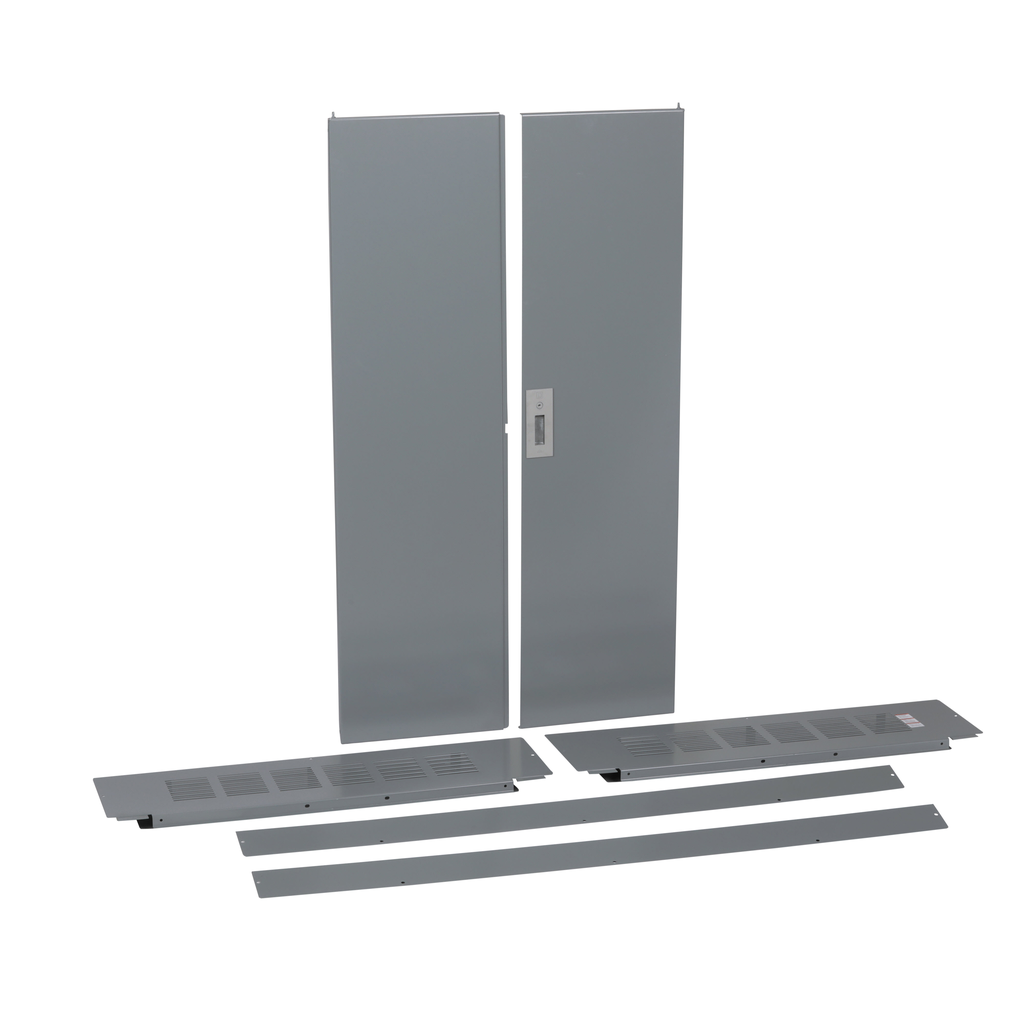

Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system and is used to feed NQ and NF lighting and appliance panelboards. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line panelboards are capable of feeding large motor loads and are UL Listed for use on systems with up to 200K max. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This trim front kit is used with HCR-U I-line distrubution panelboard and is surface mounted. This trim front kit has a height of 86 in and width of 44.25 in. This product is certified to cULus & CE standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 86 in |
| Device Mounting | surface |
| Product Destination | panelboard HCR-U 44 in 86 in |
| Net Weight | 21.77 kg |
| Width | 44.25 in |
| Number Of Doors | 1 |
| Country of Origin | United States |
| Width | 44.25 in |
| Height | 86 in |
| Weight | 21.77 kg |
| Range Of Product | I-Line |
| Product Or Component Type | trim |
| Quantity Per Set | 4 |
Documents
- I-Line™ 4-Piece Trim and Door Kits Types HCP, HCR, HCW or HCWM Installation Instructions - 80043-616-03 (pdf)
- I-Line™ 4-Piece Trim and Door Kits Types HCN, HCM, HCW, HCP, HCWM, or HCR Installation Instructions - 80043-449-03 (pdf)
- Spec Sheet
- Square D I-Line Circuit Breaker Panelboards Catalog - Class 2110 - 2110CT9701 (pdf)
