HCP32686

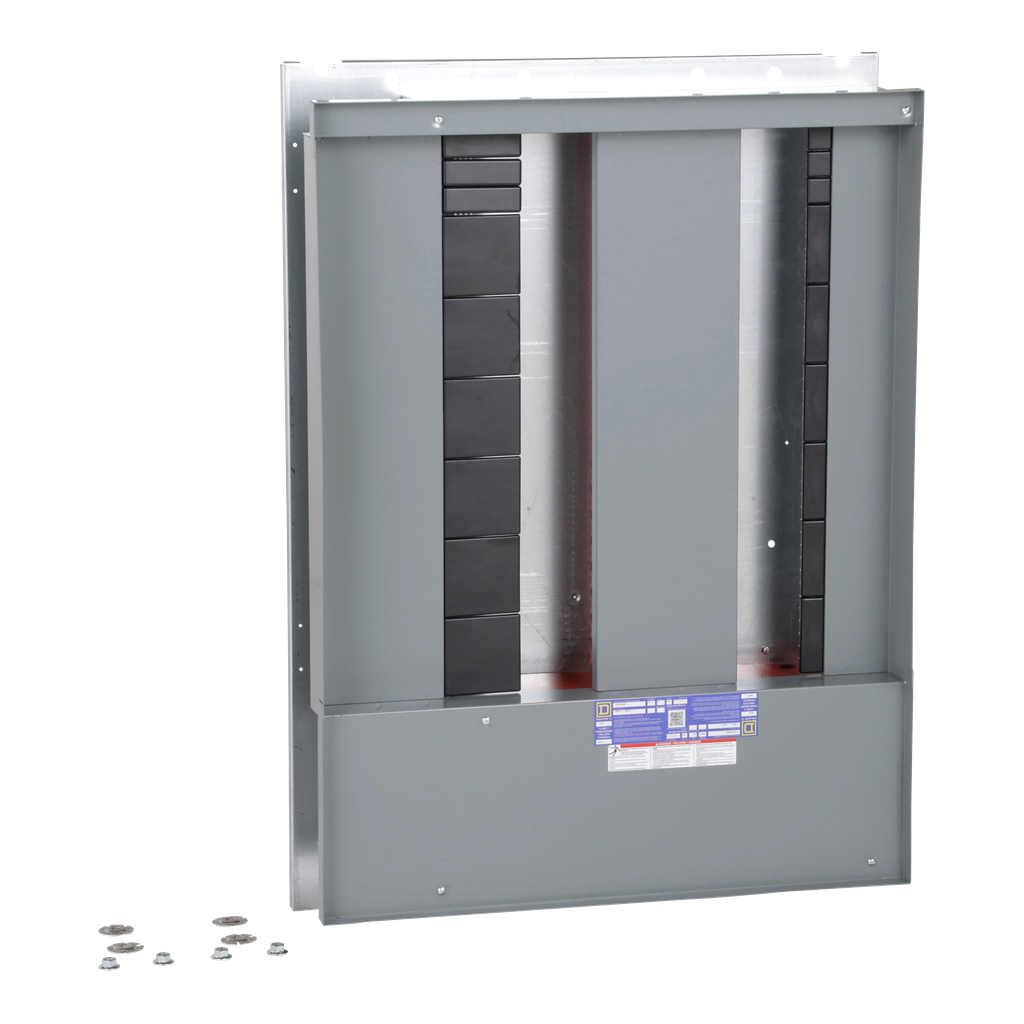

Interior, I-Line Panelboard, HCP, 600A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Al bus
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 48 in |
| Product Destination | enclosure HCP 42 in 68 in |
| Bar Length | 63 in |
| Line Rated Current | 600 A |
| Width | 34.38 in |
| Load Center Type | main lugs |
| Warranty | 18 months |
| Country of Origin | United States |
| Length | 63 in |
| Width | 34.38 in |
| Height | 48 in |
| Range Of Product | I-Line |
| Product Or Component Type | interiors |
Documents
- I-Line Circuit Breaker Distribution Panelboards Installation Instructions - 80043-309-20 (pdf)
- Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Square D I-Line Circuit Breaker Panelboards Catalog - Class 2110 - 2110CT9701 (pdf)
