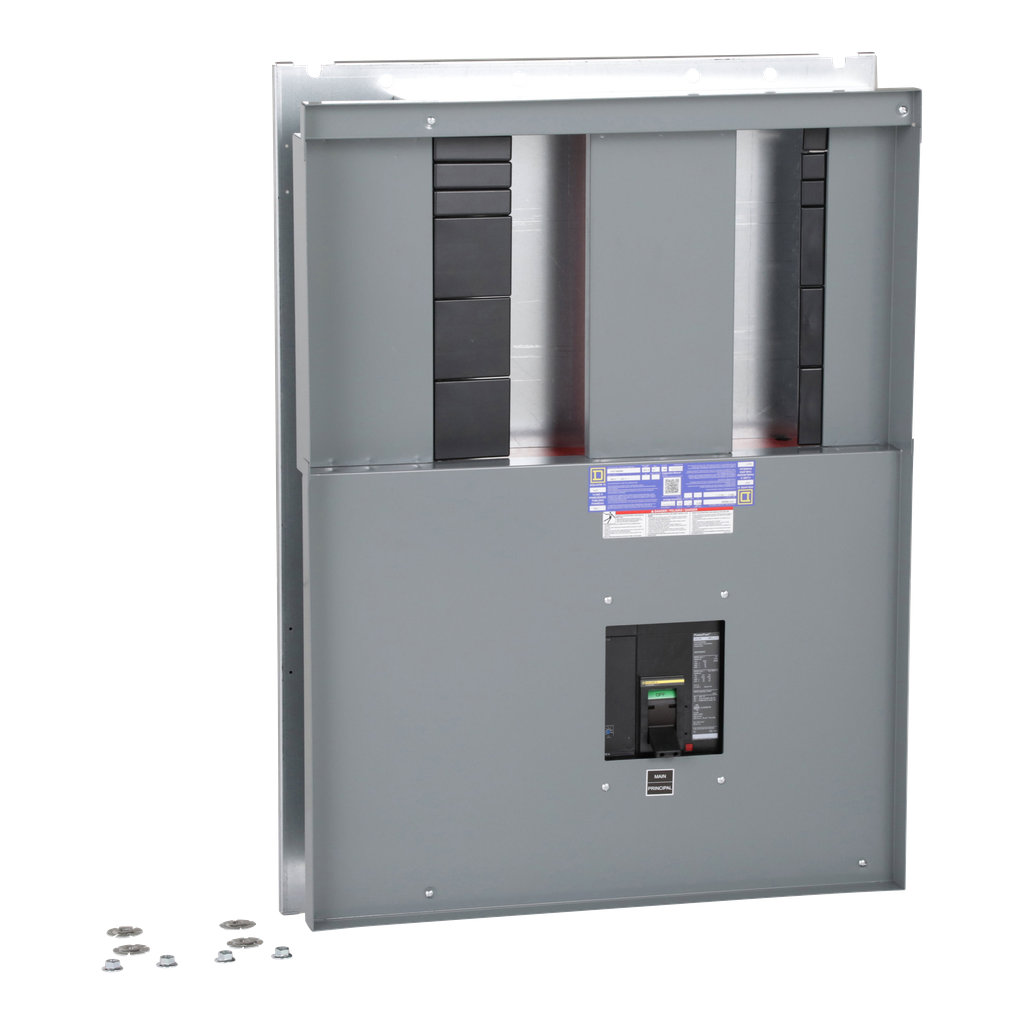

Interior, I-Line Panelboard, HCP, 800A, w/main breaker, 36in CB space, for 42in W x 68in H x 9.5in D box, Cu bus
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system and is used to feed NQ and NF lighting and appliance panelboards. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line panelboards are capable of feeding large motor loads and are UL Listed for use on systems with up to 200K max. These panelboards can come with a main breaker or main lug configuration and 400–1200A main lugs only and 100–1200A main circuit breakers. This is the interior for the HCP I-line main breaker panelboard that is rated for 800A and has 36 inches in circuit breaker space. This interior has a height of 48 in, width of 34.38 in and depth of 8.7 in. This product is certified to cULus & CE standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 36 in |
| Width | 34.38 in |
| Height | 48 in |
| Range Of Product | I-Line |
| Product Or Component Type | interiors |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 48 in |
| Product Destination | enclosure HCP 42 in 68 in |
| Bar Length | 36 in |
| Line Rated Current | 800 A |
| Width | 34.38 in |
| Load Center Type | main breaker |
| Warranty | 18 months |
Documents
- I-Line Circuit Breaker Distribution Panelboards Installation Instructions - 80043-309-20 (pdf)
- Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Square D I-Line Circuit Breaker Panelboards Catalog - Class 2110 - 2110CT9701 (pdf)
