HCP145012N

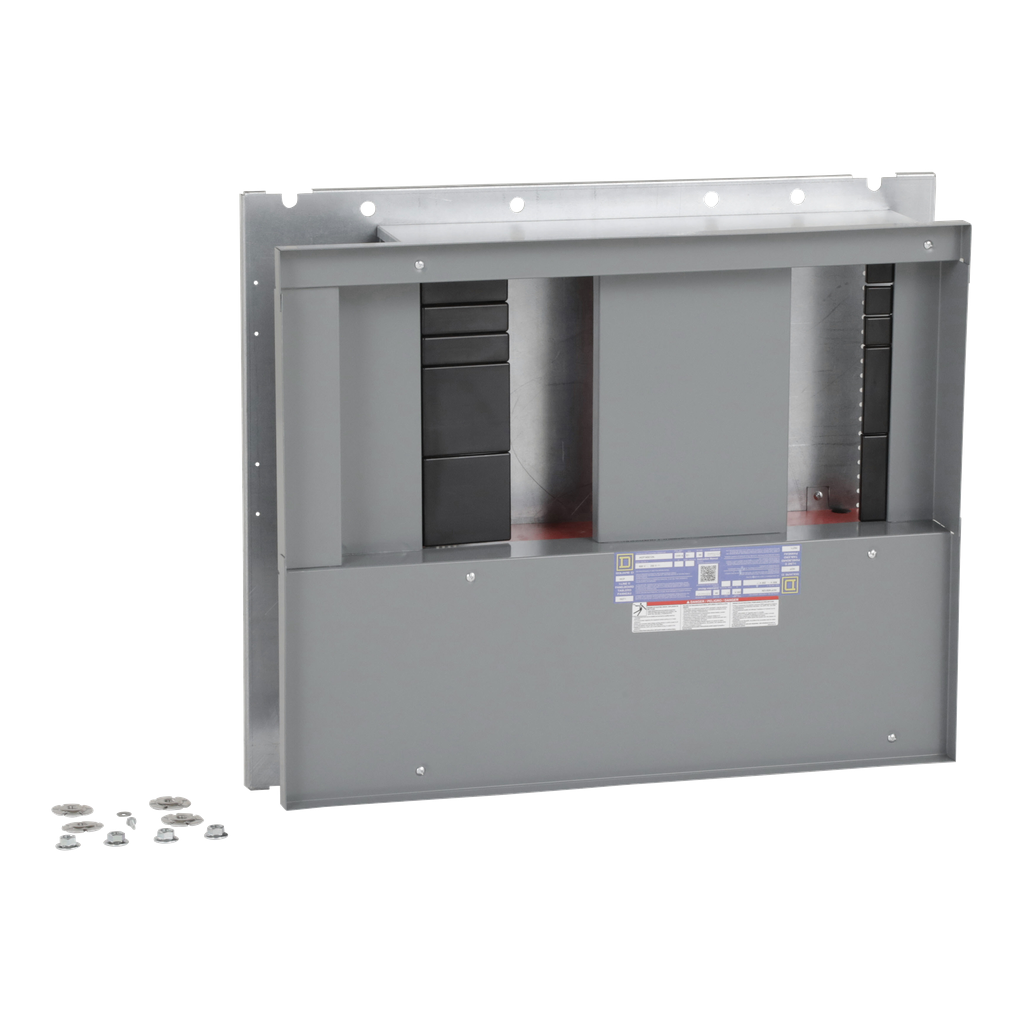

Interior, I-Line Panelboard, HCP, 1200A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus, w/neutral
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Length | 27 in |
| Width | 35.47 in |
| Height | 30 in |
| Range Of Product | I-Line |
| Product Or Component Type | interiors |
| Height | 30 in |
| Product Destination | enclosure HCP 42 in 50 in |
| Bar Length | 27 in |
| Line Rated Current | 1200 A |
| Width | 35.47 in |
| Load Center Type | main lugs |
| Warranty | 18 months |
