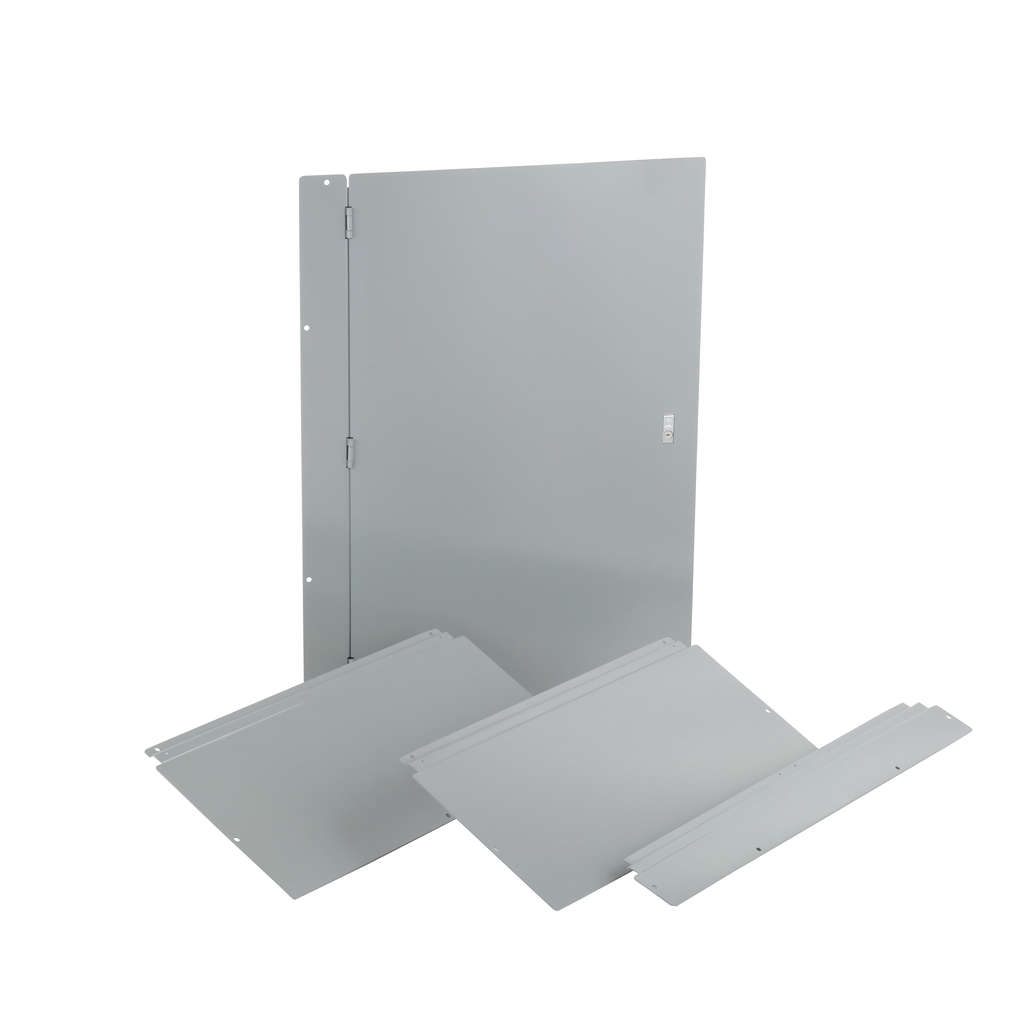

Trim front, I-Line Panelboard, HCJ, surface mount, w/door, 32in W x 64in H
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard is surface mounted and has trim. The dimesnions are 64 in (H), 32 in (W), 8.25 in (D). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Height | 64 in |
| Device Mounting | surface |
| Product Destination | panelboard HCM 32 in 64 in 8.25 in |
| Net Weight | 26.31 kg |
| Width | 32.25 in |
| Number Of Doors | 1 |
| Country of Origin | United States |
| Width | 32.25 in |
| Height | 64 in |
| Weight | 26.31 kg |
| Range Of Product | I-Line |
| Product Or Component Type | trim |
| Quantity Per Set | 4 |
