HCJ32736CU

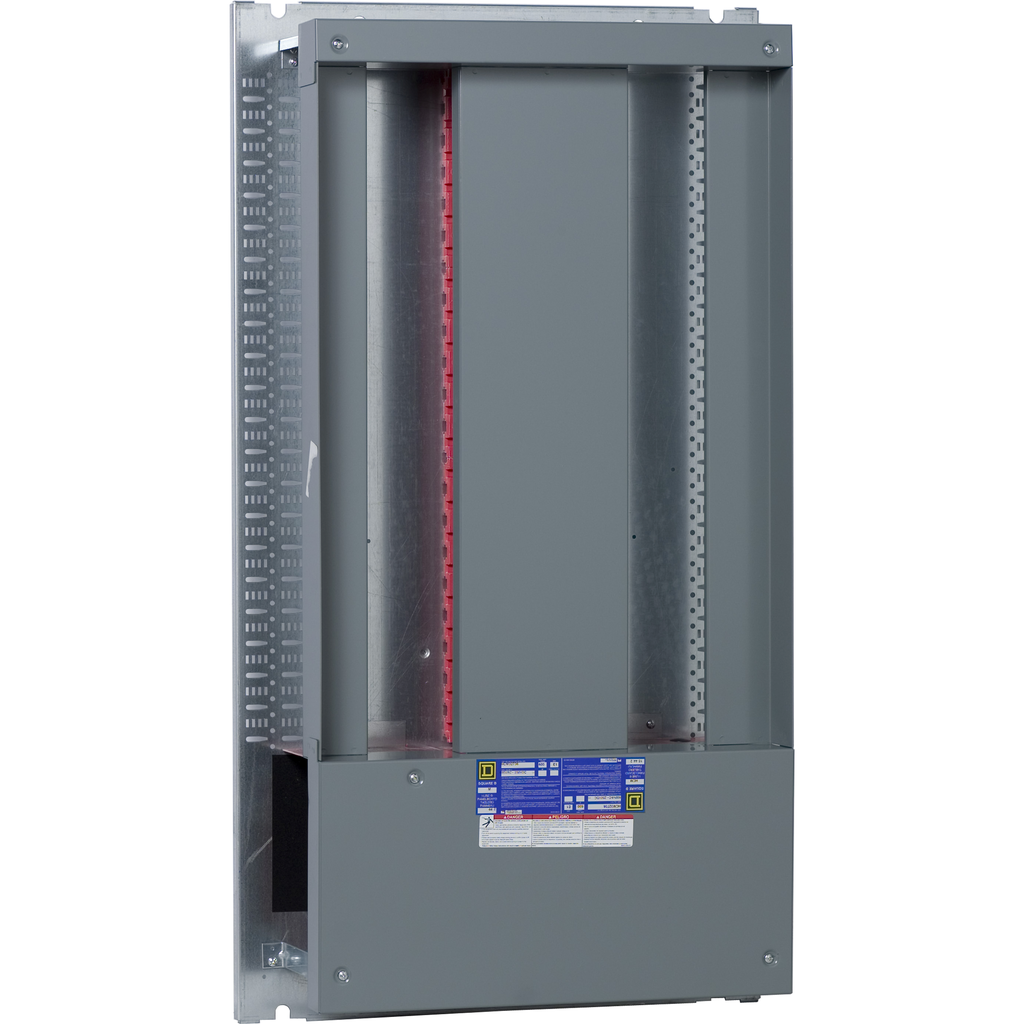

Interior, I-Line Panelboard, HCJ, 600A, main lugs, 63in CB space, for 32in W x 73in H x 9.5in D box, Cu bus
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. As a main lug paneboard your able to distribute central power to subpanels using the secure points. After being tested and certified by UL to adhere to the specfications listed in the datasheet, these panelboards come with a 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 63 in |
| Width | 26.44 in |
| Height | 48.02 in |
| Range Of Product | I-Line |
| Circuit Breaker Type |
|
| Product Or Component Type | interiors |
| Enclosure Type | distribution enclosure |
| Height | 48.02 in |
| Localisation On Device | interior |
| Tightening Torque | 37.96-37.96 N.m (AWG 2/0...500 kcmil) |
| Product Destination | enclosure HCJ 32 in 73 in 9.5 in |
| Bar Length | 63 in |
| Phase | 3 phase |
| Material | painted steel |
| Line Rated Current | 600 A |
| Width | 26.44 in |
| Depth | 8.7 in |
| Load Center Type | main lugs |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | cULus |
