HCJ18738MP

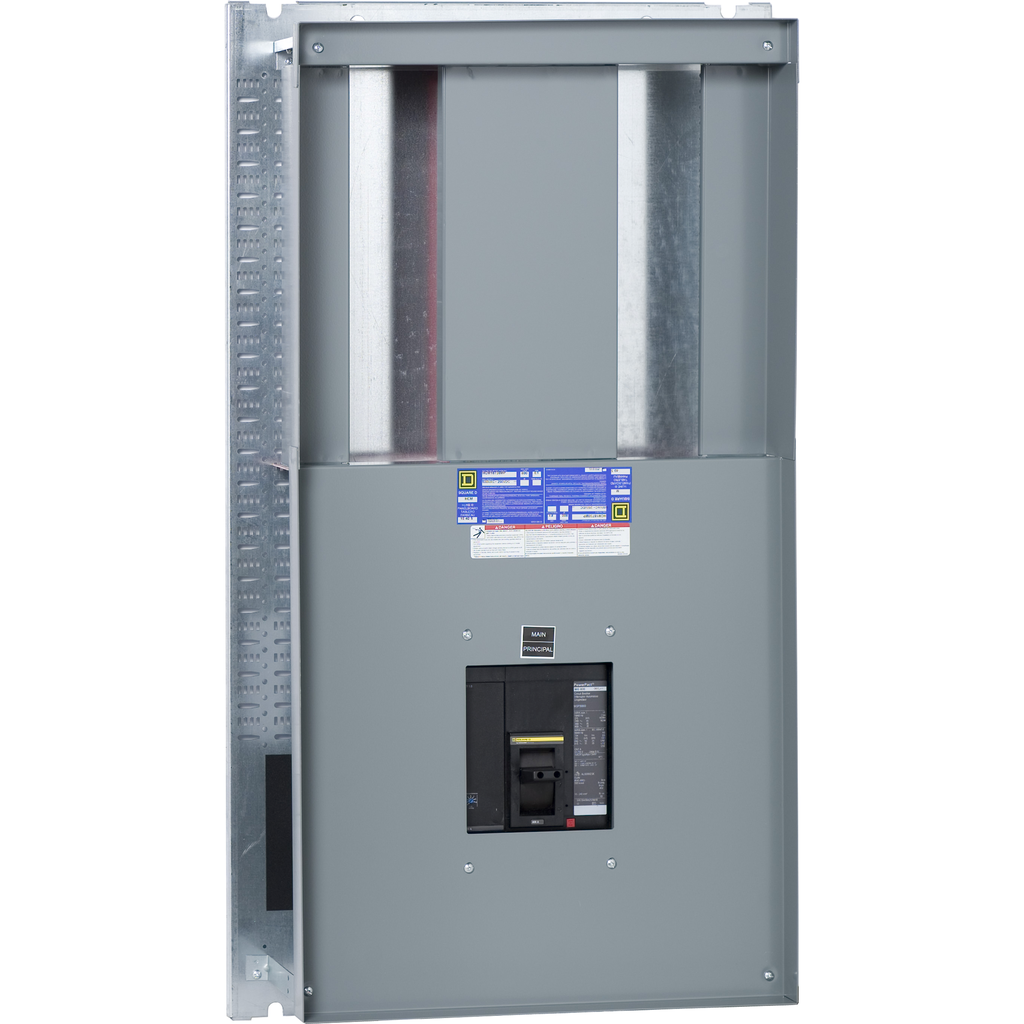

Interior, I-Line Panelboard, HCJ, 800A, w/main breaker, 36in CB space, for 32in W x 73in H x 9.5in D box, Al bus
Specifications
| Height | 48.02 in |
|---|---|
| Localisation On Device | interior |
| Tightening Torque | 37.96-37.96 N.m 85-380 mm² (AWG 3/0...750 kcmil) |
| Product Destination | enclosure HCJ 32 in 73 in 9.5 in |
| Bar Length | 36 in |
| Phase | 3 phase |
| Material | painted steel |
| Line Rated Current | 800 A |
| Width | 26.44 in |
| Depth | 8.75 in |
| Load Center Type | main breaker |
| Country of Origin | United States |
| Length | 36 in |
| Width | 26.44 in |
| Height | 48.02 in |
| Range Of Product | I-Line |
| Circuit Breaker Type |
|
| Product Or Component Type | interiors |
| Enclosure Type | distribution enclosure |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Product Certifications | cULus |
