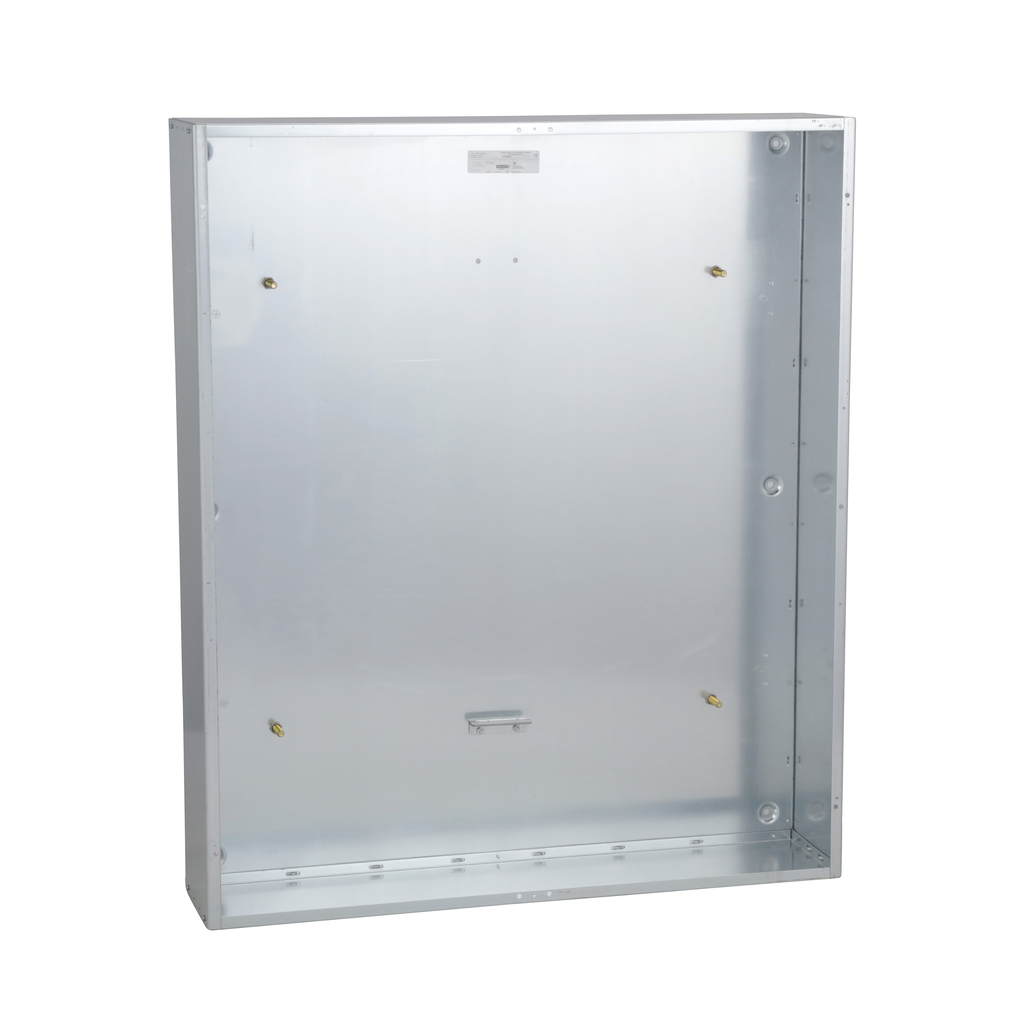

Box, I-Line Panelboard, HCP, 42in W x 50in H x 9.5in D, Type 1
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 400A, 800A & 1200A. Dimensions for this enclosure are 1270.00254000508 mm (H),1067 mm (W),241 mm (D). This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 50 in |
| Enclosure Nominal Height | 1270.00254000508 mm |
| Net Weight | 47.58 kg |
| Line Rated Current |
|
| Depth | 9.5 in |
| Enclosure Nominal Depth | 241 mm |
| Enclosure Nominal Width | 1067 mm |
| Country of Origin | United States |
| Width | 1067 mm |
| Height | 1270.00254000508 mm |
| Weight | 47.58 kg |
| Range Of Product | I-Line |
| Product Or Component Type | enclosure |
| Device Application | panelboard |
| Device Short Name | HCP |
