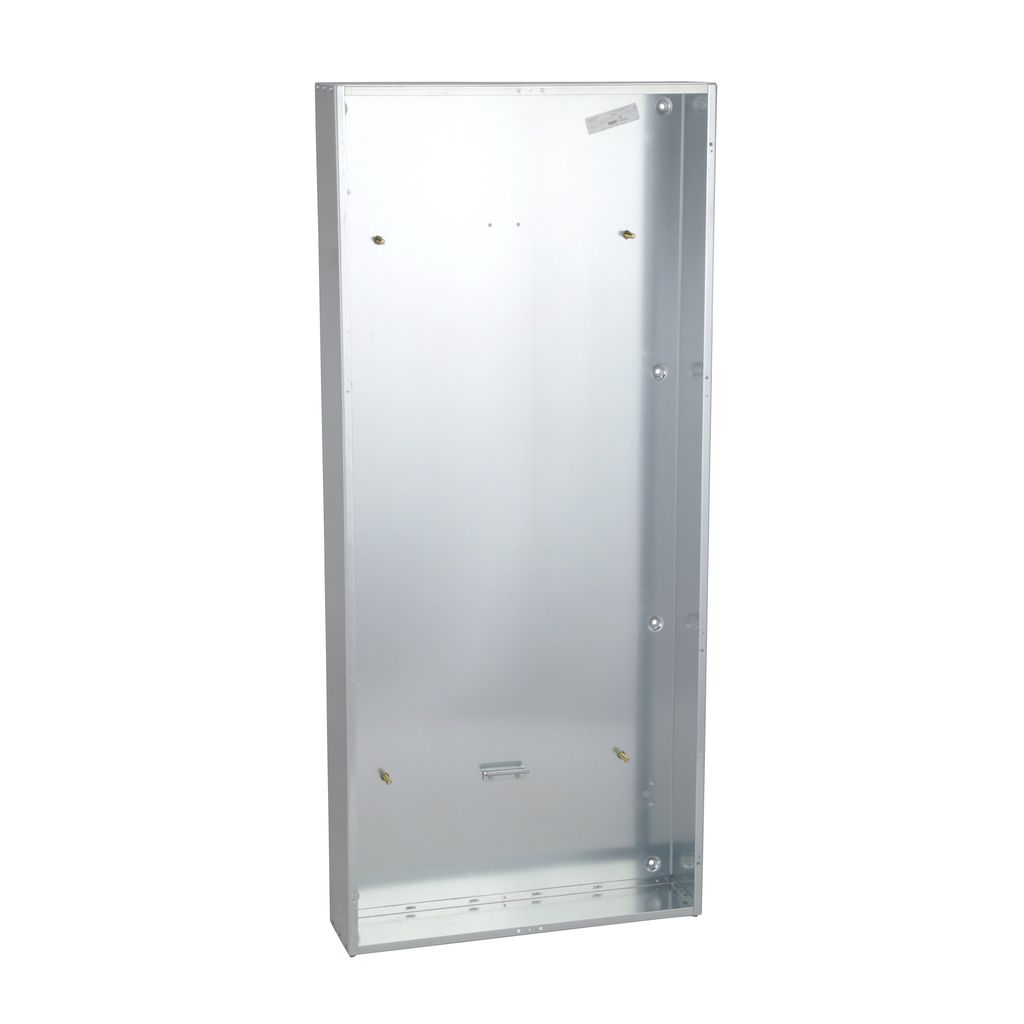

Box, I-Line Panelboard, HCM, 32in W x 73in H x 8.25in D, Type 1
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 1854 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 73 in |
| Enclosure Nominal Height | 1854 mm |
| Net Weight | 50.49 kg |
| Line Rated Current |
|
| Depth | 8.25 in |
| Enclosure Nominal Depth |
|
| Enclosure Nominal Width | 813 mm |
| Country of Origin | United States |
| Width | 813 mm |
| Height | 1854 mm |
| Weight | 50.49 kg |
| Range Of Product | I-Line |
| Product Or Component Type | enclosure |
| Device Application | panelboard |
| Device Short Name | HCM |
Documents
- I-Line Circuit Breaker Distribution Panelboards Installation Instructions - 80043-309-20 (pdf)
- Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf)
- Spec Sheet
- Supplemental Digest 04: Panelboards (MAY 2022) - SD_0100CT1902_SEC-04 (pdf)
- Square D I-Line Circuit Breaker Panelboards Catalog - Class 2110 - 2110CT9701 (pdf)
