HC2686DB

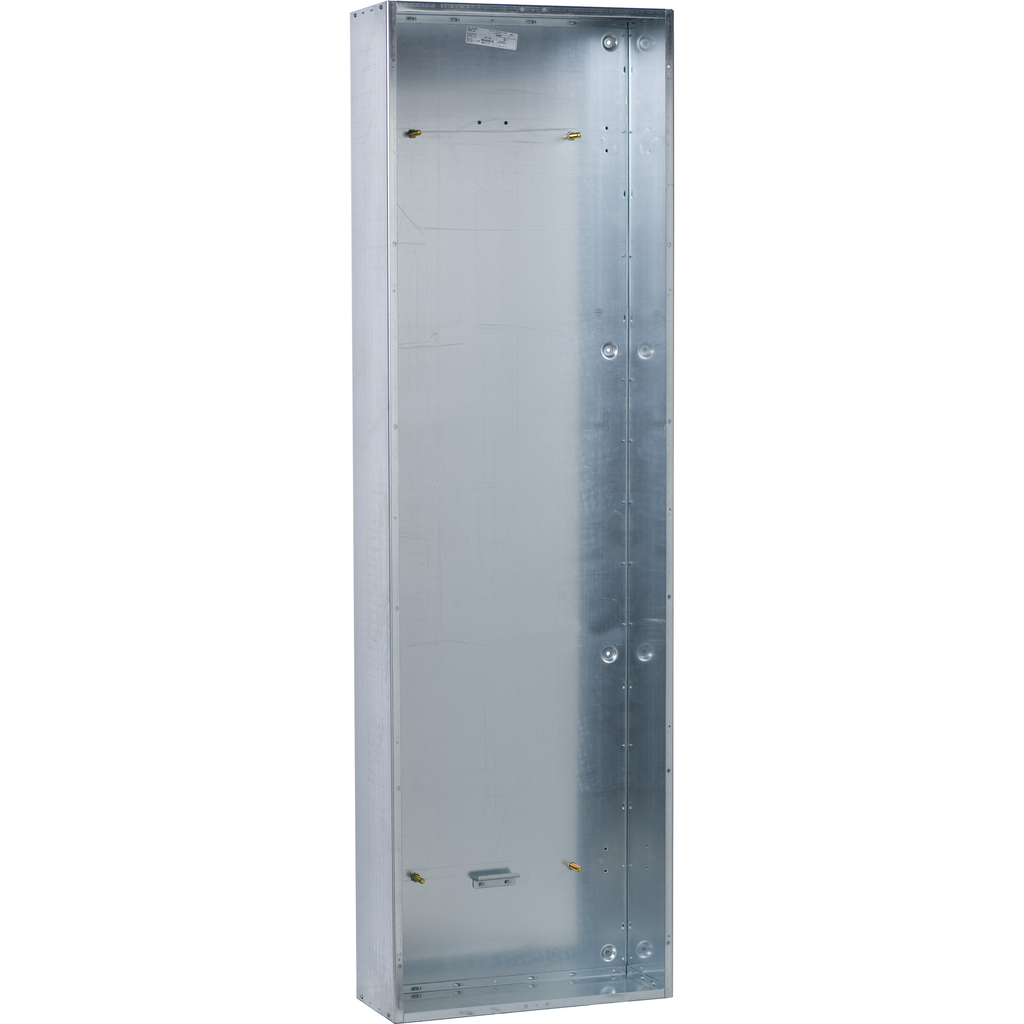

Box, I-Line Panelboard, HCP-SU, 26in W x 86in H x 6.3in D, Type 1
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 1 |
|---|---|
| Standards |
|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Height | 86 in |
| Line Rated Current | 800 A |
| Depth | 6.3 in |
| Enclosure Nominal Height | 2184 mm |
| Enclosure Nominal Depth | 241 mm |
| Net Weight | 48.99 kg |
| Enclosure Nominal Width | 660 mm |
| Country of Origin | United States |
| Width | 660 mm |
| Height | 2184 mm |
| Weight | 48.99 kg |
| Range Of Product | I-Line |
| Product Or Component Type | enclosure |
| Device Application | panelboard |
| Device Short Name | HCP-SU |
