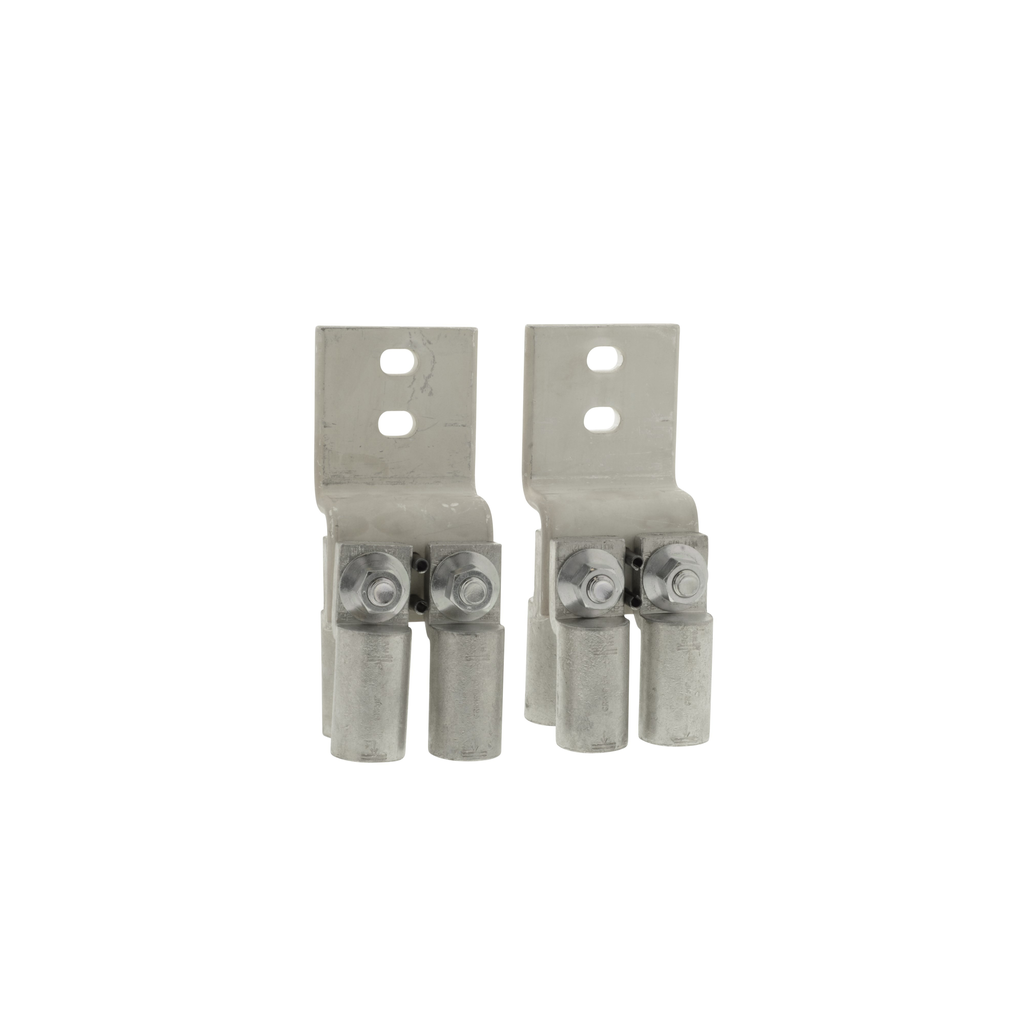

Lug kit, compression, 800A, 3 conductors per phase, 500 to 750kcmil Al, 500kcmil Cu
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Square D heavy duty safety switch grounding bar comes in 30A & 60A. This Solid Insulated Groundable Neutral Assembly has a currrent rating of 400A/600A and has a terminal service ground. This neutral is for series E 4 and 5 safety switchs. This accessory has a UL listed & CSA certifications. This compression lug are for heavy duty safety switch, 800A rated current. These lugs are rated for 500/750 kcmil aluminium &500 kcmil copper AWG gauge wire.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1405016EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | United States |
| Product Or Component Type | compression lug |
| Product Destination | safety switch heavy duty 800-800 A |
| Material | aluminium |
| Awg Gauge |
|
| Warranty | 18 months |
Documents
- Safety Switches: Section 3 - Digest 179 (2024) - Safety-Switches-Digest-Catalog-0100CT2401-SEC-03 (pdf)
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- F Series Safety Switches—Neutral Assembly Replacement Instructions - files (pdf)
- Safety Switch Maintenance Instructions (30-1200 A) - files+(1) (pdf)
- Spec Sheet
