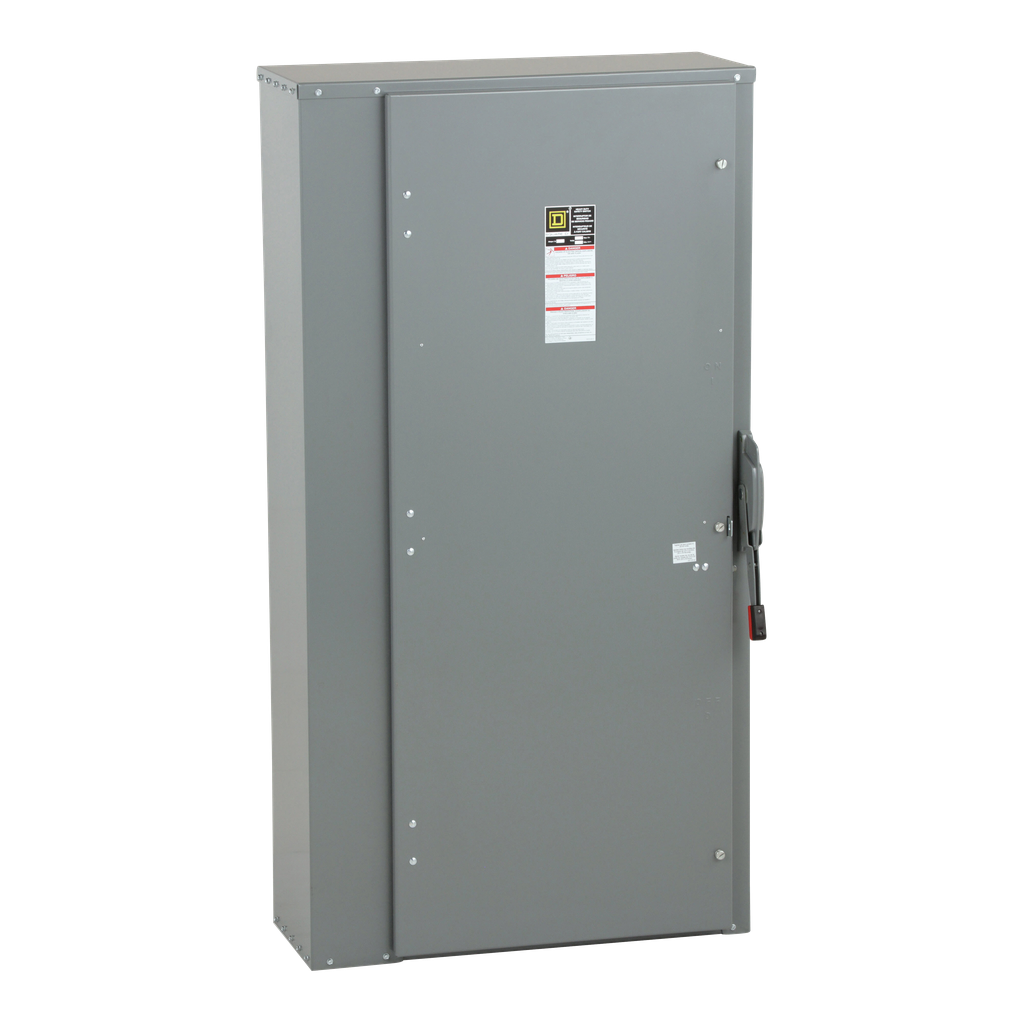

H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1

H368N

Add to Quote Catalogue

Product Certifications	UL listed file E2875
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1405016EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Height	69.13 in
Device Mounting	surface
Tightening Torque	375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
Net Weight	168.7 kg
Short-Circuit Current	200 kA maximum for L
Fuse Type	L
Electrical Connection	lugs
Awg Gauge	AWG 3/0...750 kcmil copper or aluminium
Wiring Configuration	4-wire (3PH + N)
Width	36.62 in
Depth	17.75 in
Country of Origin	Mexico
Width	36.62 in
Height	69.13 in
Weight	168.7 kg
Disconnector Device Type	fusible disconnect
Product Or Component Type	Single Throw Safety Switch
Phase	3 phase
Series Name	heavy duty
Nema Degree Of Protection	NEMA 1 steel
Line Rated Current	1200 A
Device Composition	neutral (factory installed)
Device Application	heavy application
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC/DC
