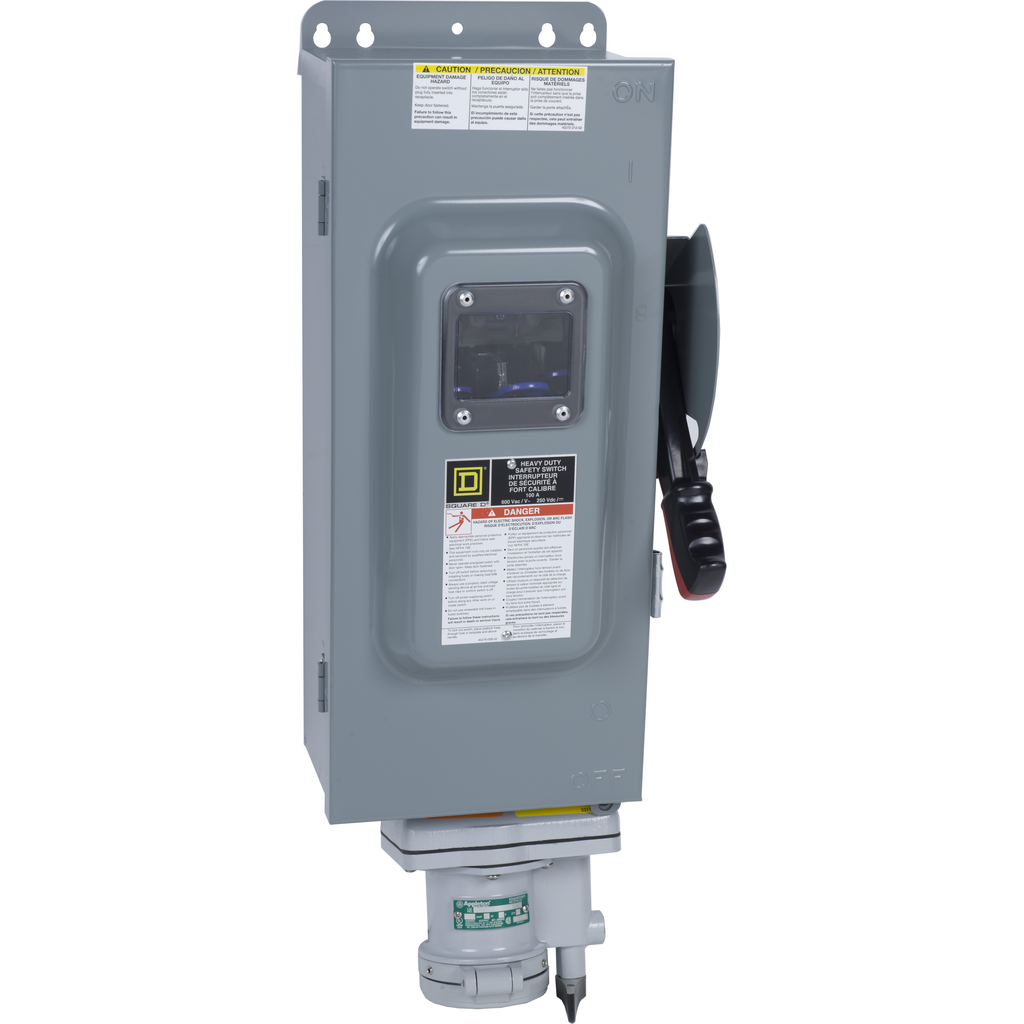

H363AWAVW - Safety switch, heavy duty, fusible, 100A, 600VAC, 600VDC, 3 poles, 75hp, NEMA 12K, Appleton, view window

H363AWAVW

Add to Quote Catalogue

Product Certifications	UL Listed
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2305006EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	20.5 in
Device Mounting	surface
Tightening Torque	50-50 lbf.in (AWG 3...AWG 1) 45-45 lbf.in (AWG 6...AWG 4) 40-40 lbf.in (AWG 8) 35-35 lbf.in (AWG 14...AWG 10)
Electrical Connection	receptacle
Awg Gauge	AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper
Wiring Configuration	4-wire without neutral
Width	10.5 in
Depth	7 in
Country of Origin	United States
Width	10.5 in
Height	20.5 in
Disconnector Device Type	fusible disconnect
Product Or Component Type	Receptacle Switch
Phase	3 phase
Product Destination	plug ACP1034CD Appleton Powertite
Nema Degree Of Protection	NEMA 12K
Line Rated Current	100 A
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC 250 V DC
