H327R

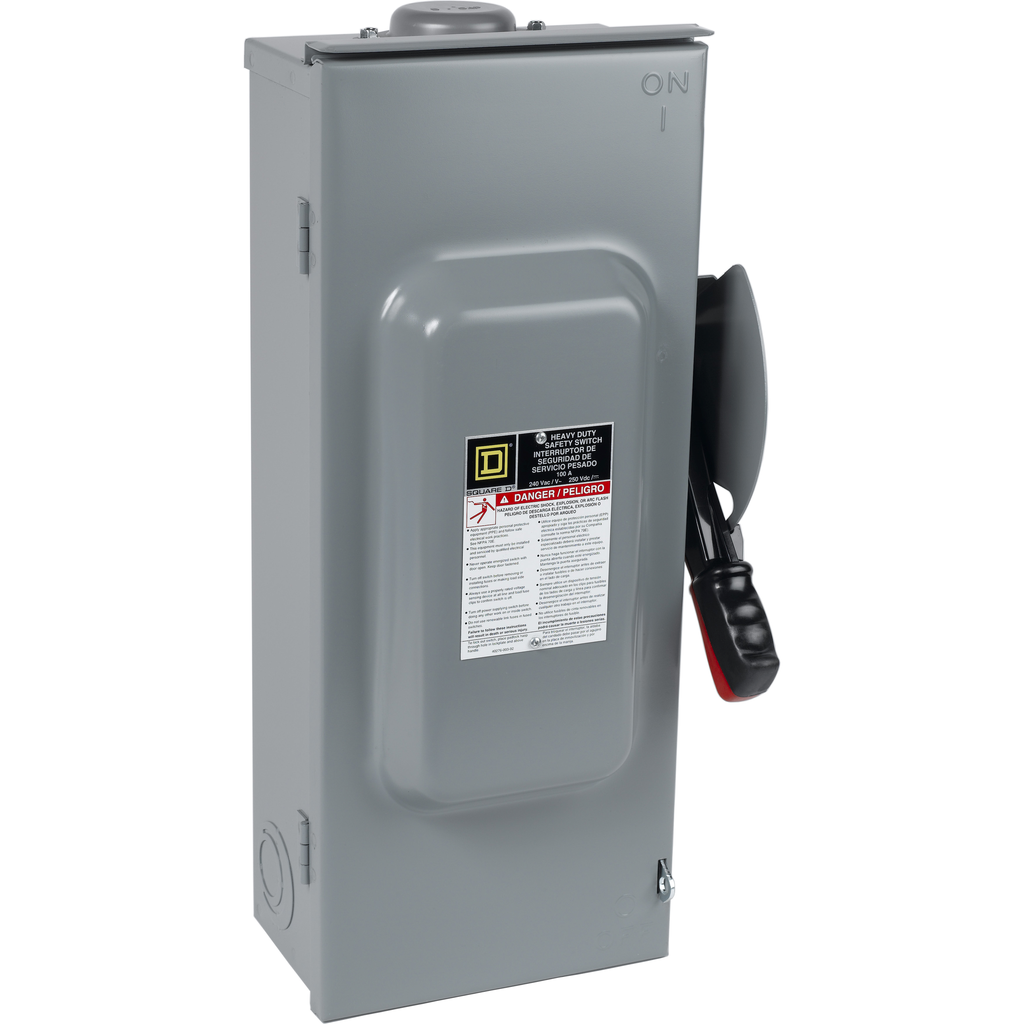

Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 250hp, 240VAC/250VDC, NEMA 3R
This is a Single Throw Safety Switch. This safety switch has a rated current of 800A and is 3 pole. This safety switch has a rated operational voltage of 240 VACat and 250 VDC at 200 kA. With a motor power of 50 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 3R degree of protection. and os made of galvannealed steel. Dimensions for this disconnect are 69.13 in (H), 36.62 in (W), 17.75 in (D).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL listed file E2875 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1405016EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 69.13 in |
| Device Mounting | surface |
| Tightening Torque | 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil) |
| Net Weight | 165.6 kg |
| Short-Circuit Current | 200 kA maximum for L |
| Fuse Type | L |
| Electrical Connection | lugs |
| Awg Gauge | AWG 3/0...750 kcmil copper or aluminium |
| Wiring Configuration | 3-wire (3P) |
| Width | 36.62 in |
| Depth | 17.75 in |
| Country of Origin | Mexico |
| Width | 36.62 in |
| Height | 69.13 in |
| Weight | 165.6 kg |
| Disconnector Device Type | fusible disconnect |
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series Name | heavy duty |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Line Rated Current | 800 A |
| Device Composition | none |
| Device Application | heavy application |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage |
|
