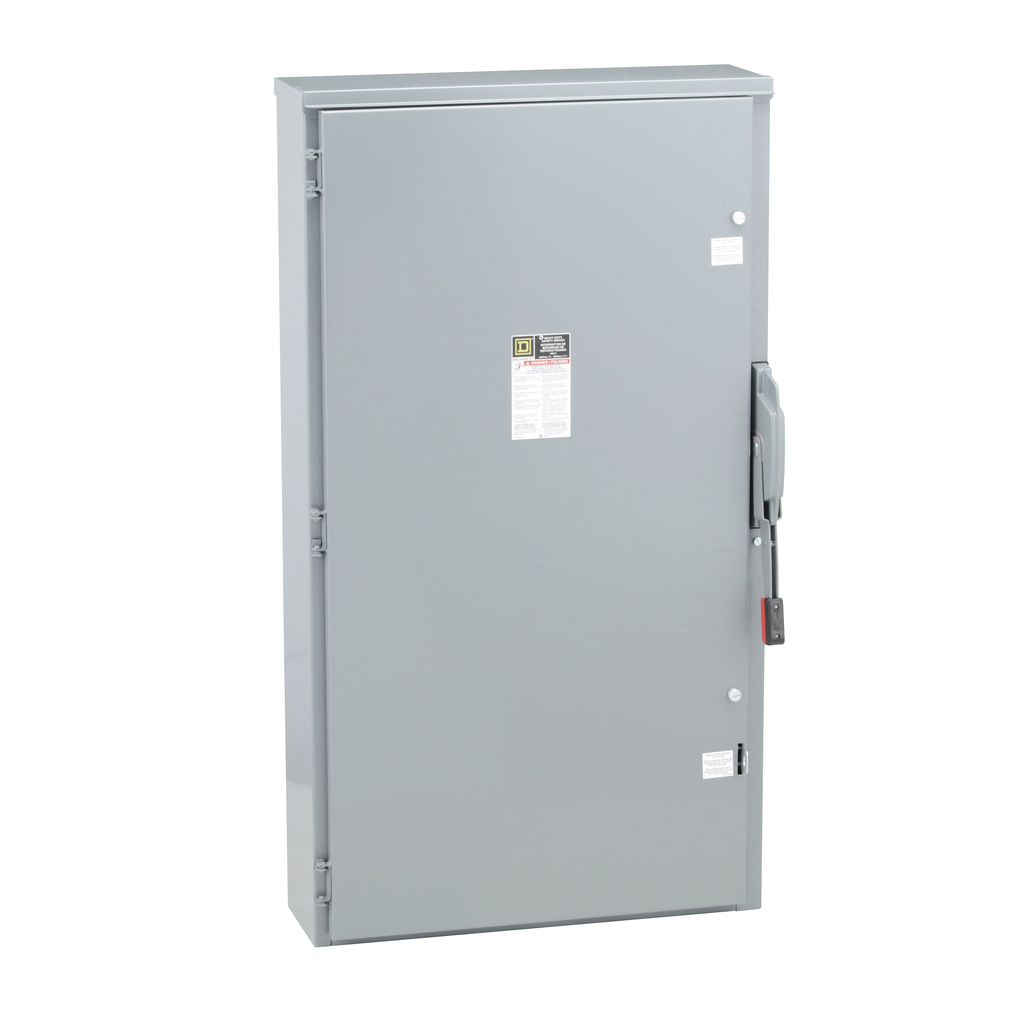

H325NR - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R

H325NR

Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL listed file E2875
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Height	50.31 in
Device Mounting	surface
Tightening Torque	550-550 lbf.in (AWG 1/0...750 kcmil)
Net Weight	87.1 kg
Short-Circuit Current	10 kA for H or K 200 kA for R or J
Fuse Type	H or K R or J
Electrical Connection	lugs
Awg Gauge	AWG 1/0...750 kcmil copper or aluminium
Wiring Configuration	4-wire (3PH + G)
Width	27.88 in
Depth	10.13 in
Country of Origin	Mexico
Width	27.88 in
Height	50.31 in
Weight	87.1 kg
Disconnector Device Type	fusible disconnect
Product Or Component Type	Single Throw Safety Switch
Phase	3 phase
Series Name	heavy duty
Nema Degree Of Protection	NEMA 3R galvannealed steel
Line Rated Current	400 A
Device Composition	neutral (factory installed)
Device Application	heavy application
Number Of Poles	3
[Ue] Rated Operational Voltage	250 V DC 240 V AC

Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R
