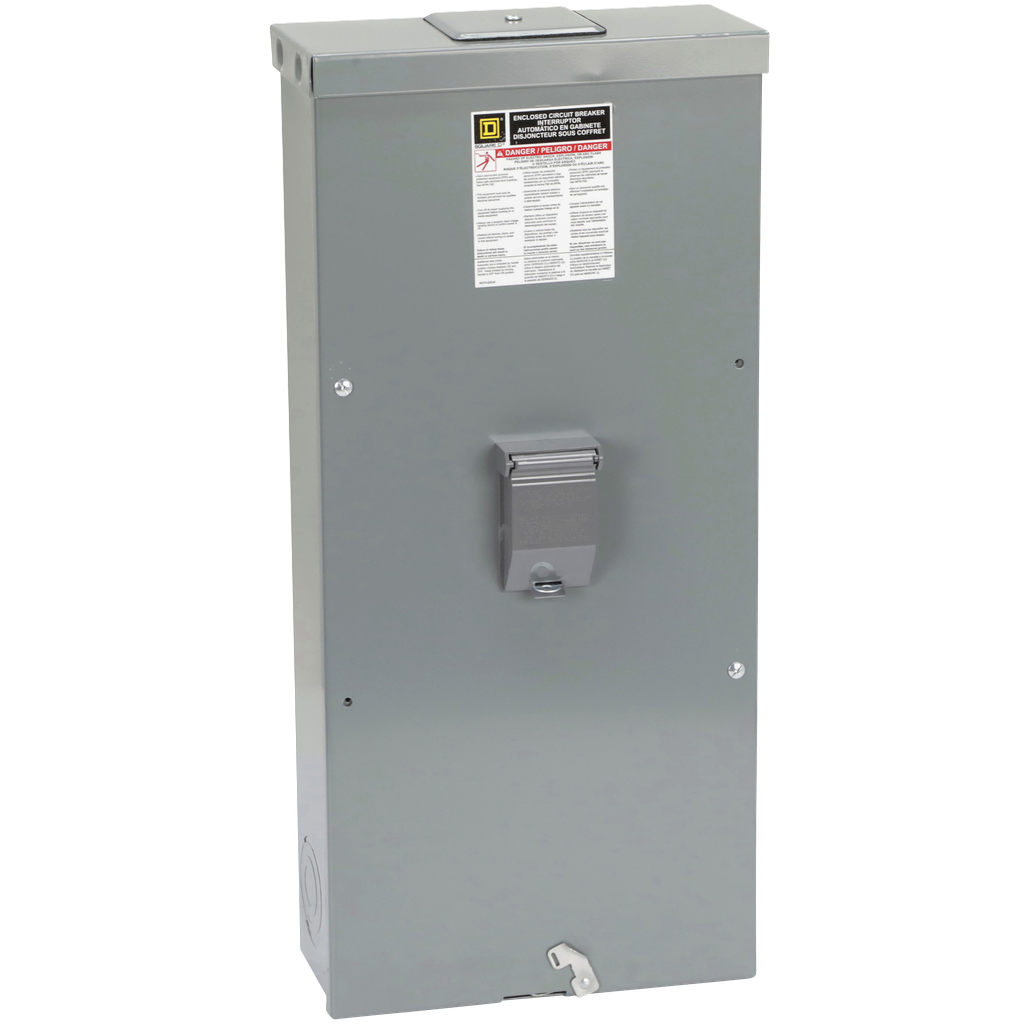

H150R
Enclosure, PowerPacT H, 2 pole, NEMA 3R
PowerPacT H-Frame enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. The enclosure accepts 80% or 100% rated circuit breakers. This enclosure is suitable only for 2 pole HD or HG breakers. It is suitable for use as service equipment when neutral assembly is installed. It is a NEMA 3R gray baked enamel over steel. This PowerPacT H, enclosure is for a 2-pole circuit breakers and has a NEMA 3R rating.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Line Rated Current |
|
| Type Of Installation | outdoor |
| Number Of Poles | 2 |
| Country of Origin | United States |
| Circuit Breaker Type |
|
| Product Or Component Type | enclosure |
| Product Name | PowerPact H |
| Product Certifications | NEMA |
