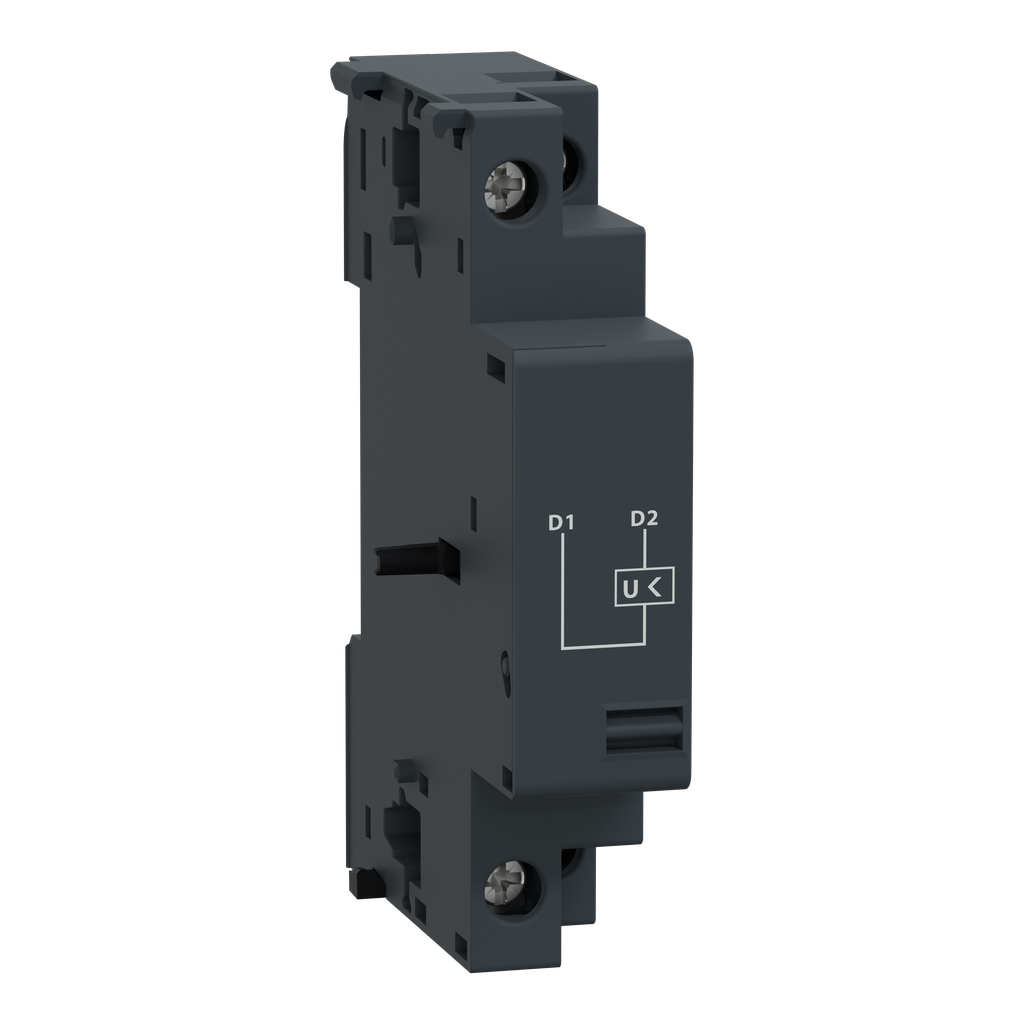

GVAU385
Undervoltage release (MN), TeSys Deca, 380-400V AC 50Hz / 440V AC 60Hz
TeSys GV electrical trip, MN undervoltage release, 380-400V AC 50Hz / 440V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
| [Uc] Control Circuit Voltage |
|
| Control Circuit Voltage Limits | 0.85...1.1 Un |
| Height | 89 mm |
| Tightening Torque | < 1.4 N.m screw clamp terminals |
| Range Compatibility |
|
| Hold-In Power Consumption In W | 1.1-1.1 W |
| Net Weight | 0.105 kg |
| Inrush Power In Va | 12-12 VA AC |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage |
|
| Mechanical Durability |
|
| Threshold Tripping Voltage | 0.7...0.35 Un |
| Hold-In Power Consumption In Va | 3.5-3.5 VA AC |
| On-Load Factor | 100 % |
| Quantity Per Set | set of 10 |
| Operating Time | 10...15 ms IEC 60947-1 |
| Color | dark grey |
| Width | 18 mm |
| Depth | 66 mm |
| Inrush Power In W | 8 W |
| Country of Origin | United States |
| Width | 18 mm |
| Height | 89 mm |
| Weight | 0.105 kg |
| Product Or Component Type | undervoltage release |
| Range |
|
| Device Short Name | GVAU |
| Warranty | 18 months |
