Extended rotary handle, TeSys GV7, yellow legend plate, padlockable, IP55

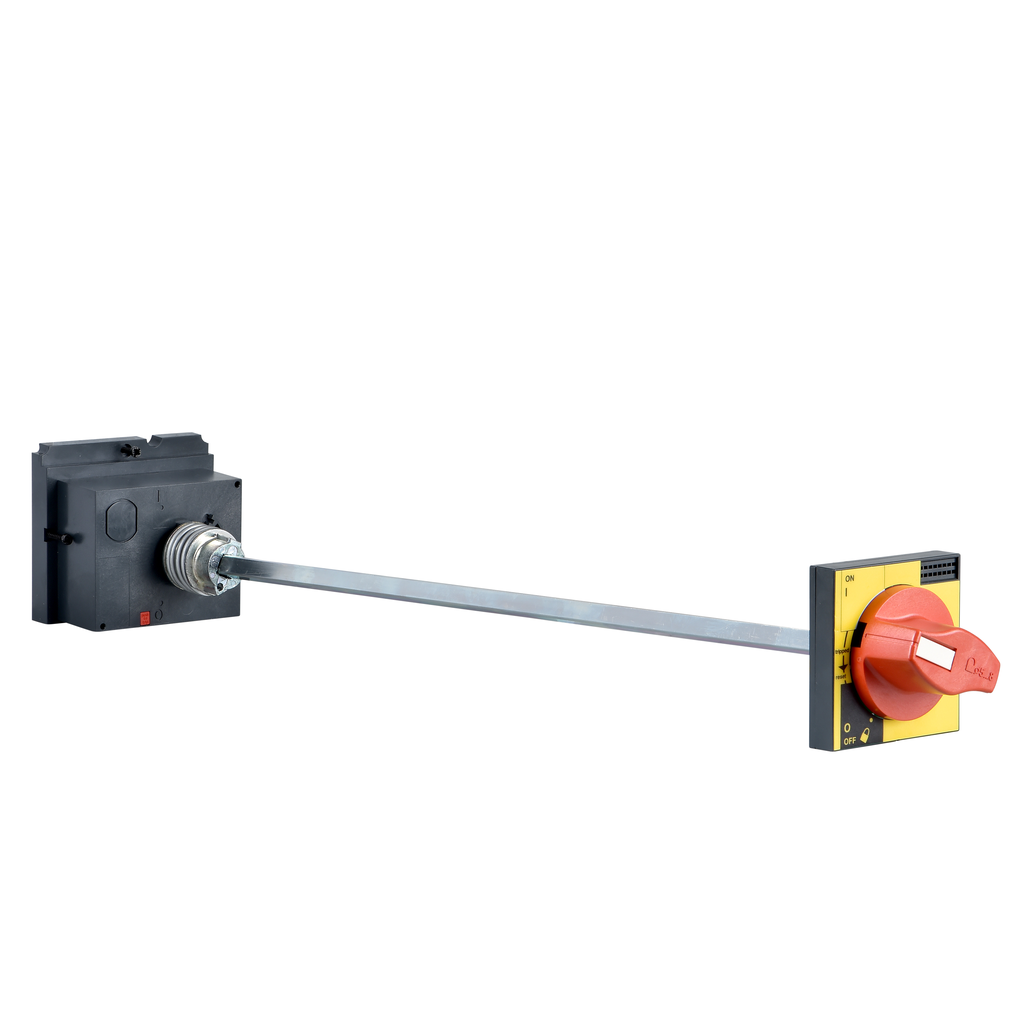

TeSys GV extended rotary handle, for motor circuit breakers GV5, GV6, GV7 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP55 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 185-600mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP55 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1905002EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1905002EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Back/Door Distance | 185-600 mm |
| Handle Front Plate Colour | yellow |
| Handle Colour | red |
| Net Weight | 0.775 kg |
| Country of Origin | France |
| Weight | 0.775 kg |
| Rotary Handle Mounting Style | extended |
| Range Compatibility |
|
| Accessory / Separate Part Category | control accessory |
| Product Or Component Type | extended rotary handle |
| Range | TeSys |
| Rotary Handle Mounting Location | front |
| Device Short Name | GV7AP |
