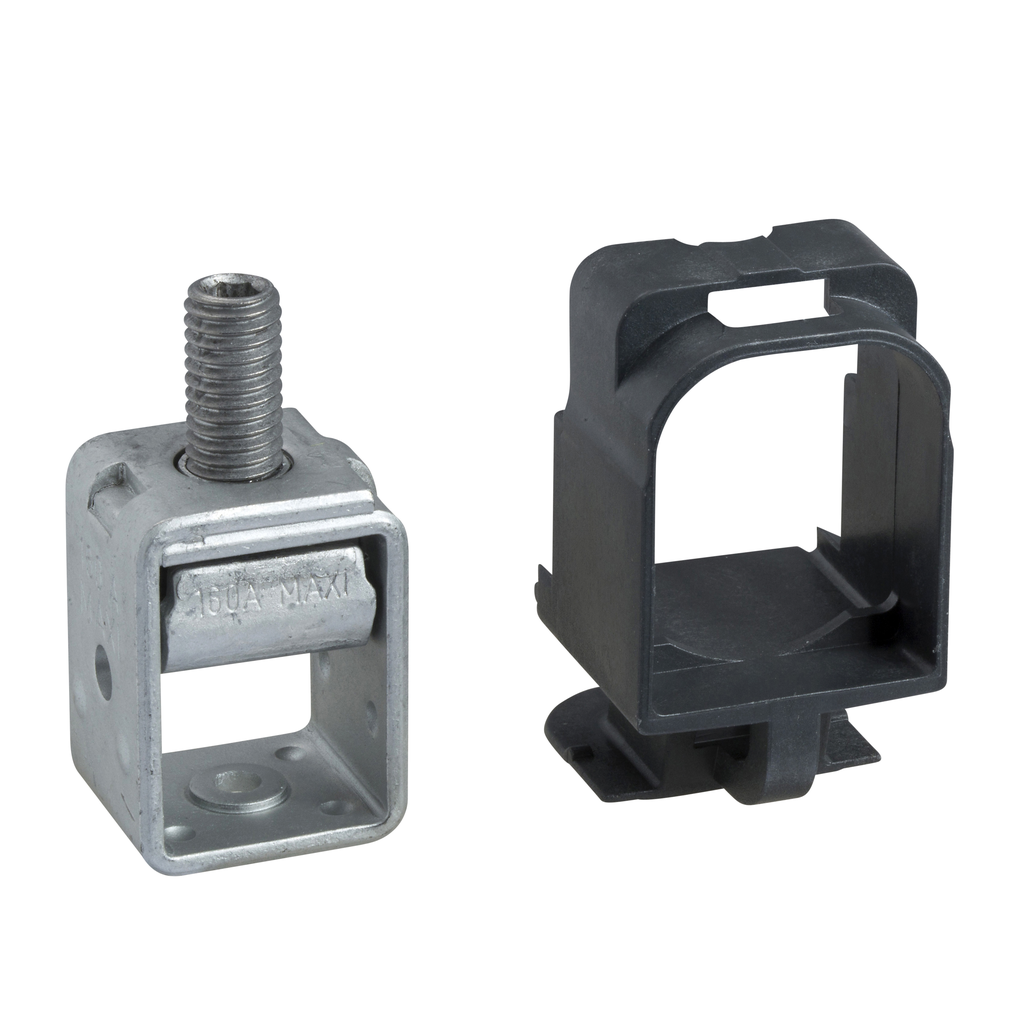

GV7AC021
Clip-on connectors, TeSys GV7, 150A, cable 1.5 to 95mm², set of 3
GV7AC021 is a set of 3 clip-on connectors for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with GV7RE150 and GV7RS150 models, it allows direct connection of 1.5 to 95mm² cables. GV7AC021 is a set of 3 clip-on connectors for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with GV7RE150 and GV7RS150 models and for applications up to 150A, it allows direct connection of 1.5 to 95mm² cables without need of cable lug terminals. For top and bottom terminals 2 units are required. Direct connection of 1.5 to 95mm² cables without need of cable lug terminals. Compatible with GV7RE150 and GV7RS150 models.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.3 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | clip-on connector |
| Range | TeSys |
| Device Short Name | GV7AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Net Weight | 0.3 kg |
| Connections - Terminals | screw terminal 1.5-95 mm² |
| [Ie] Rated Operational Current | 150 A |
| Quantity Per Set | set of 3 |
| Warranty | 18 months |
