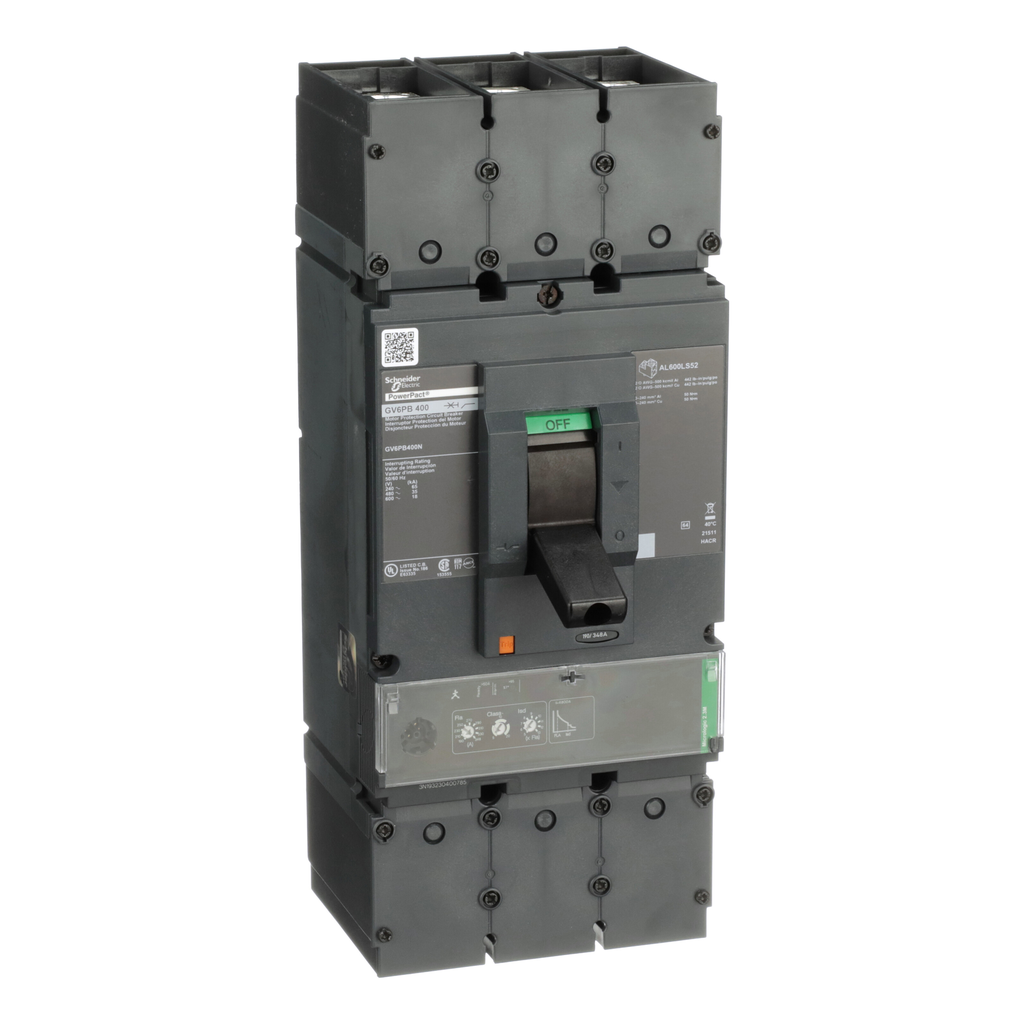

GV6PB400N - TeSys Motor Protection Circuit Breaker, 400A, 3P, 600V, 18kA

GV6PB400N

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2206029EN
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI2206029EN
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	United States
Width	5.51 in
Height	13.38 mm
Trip Unit Technology	electronicMicroLogic 2.3 M,
Line Rated Current	400 A
[Ue] Rated Operational Voltage	600 V AC
Phase Failure Sensitivity	yes
Product Or Component Type	motor protection circuit breaker
Product Name	TeSys GV6
Breaking Capacity	65 kA 240 V AC 35 kA 480 V AC 18 kA 600 V AC
Thermal Protection Adjustment Range	190-348 A
Poles Description	3P
Breaking Capacity Code	N
Height	13.38 mm
Tightening Torque	4.4-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Product Certifications	UL Listed CSA
Electrical Connection	lugs, load lugs, line
Mounting Mode	unit mount
Awg Gauge	AWG 2/0...500 kcmil aluminium/copper
Width	5.51 in
Depth	6.61 in
Ambient Air Temperature For Operation	40-40 °C
