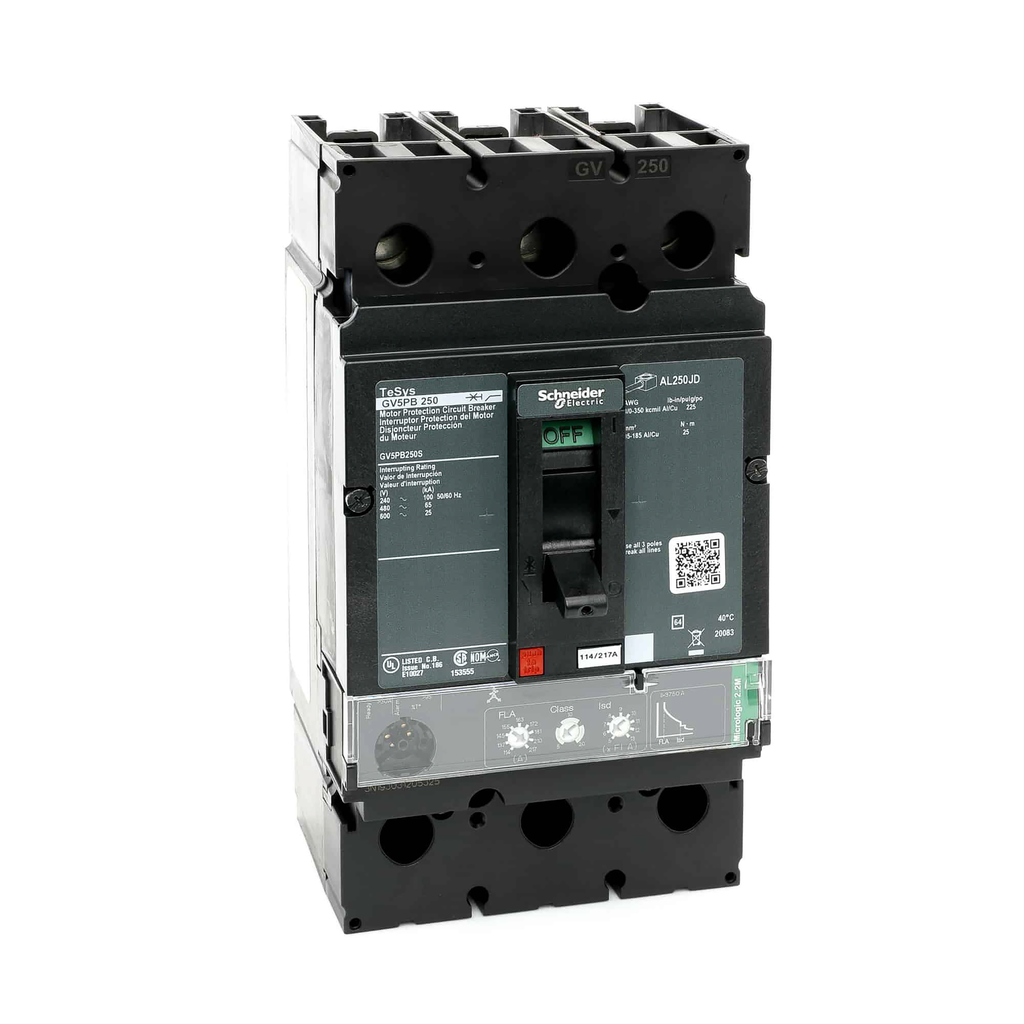

GV5PB250S - TeSys Motor Protection Circuit Breaker, 250A, 3P, 600V, 25kA

GV5PB250S

Add to Quote Catalogue

Height	7.52 in
Tightening Torque	26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Product Certifications	UL Listed CSA
Electrical Connection	lugs, load lugs, line
Mounting Mode	unit mount
Awg Gauge	AWG 3/0...350 kcmil aluminium/copper
Width	4.12 in
Depth	5 in
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2206031EN
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI2206031EN
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	United States
Width	4.12 in
Height	7.52 in
Trip Unit Technology	electronicMicroLogic 2.2 M,
Line Rated Current	250 A
[Ue] Rated Operational Voltage	600 V AC
Phase Failure Sensitivity	yes
Product Or Component Type	motor protection circuit breaker
Product Name	TeSys GV5
Breaking Capacity	100 kA 240 V AC 65 kA 480 V AC 25 kA 600 V AC
Thermal Protection Adjustment Range	114-217 A
Poles Description	3P
Breaking Capacity Code	S
Ambient Air Temperature For Operation	40-40 °C
